Description
YellowTec PUC2 Lite USB Audio Interface
If you need digital connectivity only, choose PUC2 Lite as a budget-friendly but high-class interfacing solution. It is the best choice for application fields that don’t require analog connectivity. Providing the same feature set as the PUC2 Line version, PUC2 Lite serves as a purely digital platform.
PUC2 Lite comes as a high-definition USB audio interface with professional digital inputs and outputs. It provides you with highest available audio standards up to 192kHz sample rate at 24-bit word-lengths with a sensational dynamic range of 114dB. The plug’n’play concept allows fast handling plus the optional use of our ASIO driver for advanced operators.
PUC2’s Zero Latency Monitoring allows you to monitor your audio signal in real-time. Choose between listening to the input signal, or the return path arriving via USB. For further monitoring convenience, an AUX output lets you connect a pair of headphones for a quick and easy audio signal check.

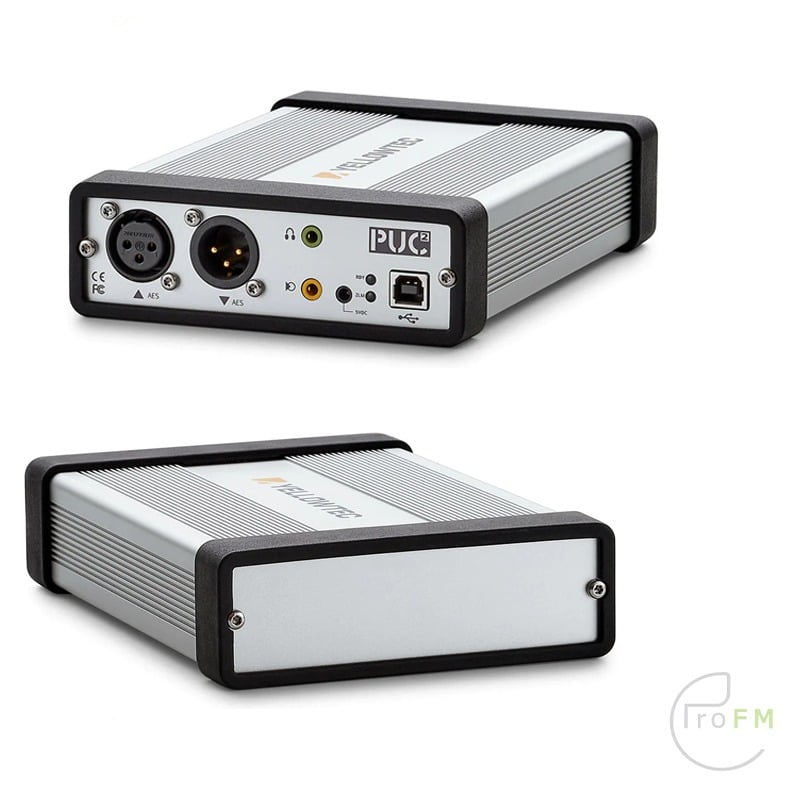

The computer connection panel features AES-3 inputs and outputs on XLRs, along with an USB port and a 3.5mm socket to configure zero latency monitoring modes. Since PUC2 is USB-powered, there is no bulky power supply and there are fewer cables to connect.
DETAILS
- High-definition USB Audio Interface to optimize your audio quality
- Same feature set as PUC2 Line but on a purely digital platform
- Budget-friendly option if analog connectivity is not required
- Plug’n’play concept allows for fast handling
- Delivers highest available audio standards
- 192kHz sample rate at 24-bit word-lengths
- Dynamic range of 114dB
- Fully USB-powered (USB-2.0 Type B)
- Digital inputs + outputs
- AES-3 input + output on XLR
- 3.5mm socket to configure zero-latency monitoring
- ASIO driver for advanced operators
- Sturdy aluminum unibody serves as a conductor + heat sink
- Dimensions: 18.5 x 12.7 x 4.5cm | Weight: 0.6kg
- An optional PSU is available to power PUC2 Line
PUC2 Tech Specs
| PUC2 Lite | PUC2 Line | PUC2 Mic LEA | ||||||
| Power | < 1000 mA via USB | < 1000 mA via dual USB | < 1000 mA via dual USB + PSU | |||||
| Clocking | Jitter | < 15 mUI Peak | < 15 mUI Peak | < 15 mUI Peak | ||||
| Frequency Accuracy | +/- 10 ppm | +/- 10 ppm | +/- 10 ppm | |||||
| Input Selection | AES3 only | Automatic with AES Detection | Automatic with AES Detection | |||||
| Digital Input | Format | AES 3 + SPF/DIF | AES 3 + SPF/DIF | AES 3 + SPF/DIF | ||||
| Connectors | XLR | XLR | XLR | |||||
| Sampling Rate | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | |||||
| Bit Depth | 24 Bit | 24 Bit | 24 Bit | |||||
| Digital Output
Analog Input
Analog Output | Format Connectors Sampling Rate Bit Depth
Electronically balanced Input Level 1 (switchable) Input Level 2 (switchable) Input Level 3 (switchable) Impedance
Electronically balanced Output Level 1 (switchable) Output Level 2 (switchable) Output Level 3 (switchable) Impedance | AES 3 + SPF/DIF AES 3 + SPF/DIF AES 3 + SPF/DIF XLR XLR XLR 44.1 kHz, 48 kHz, 88.2 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz 96 kHz, 176.4 kHz, 192 kHz 96 kHz, 176.4 kHz, 192 kHz 24 Bit 24 Bit 24 Bit
@ Full Scale +6dBu / max +15dBu -∞ … +18dBu +4dBu / max +15dBu +5dBu / max +15dBu
18 kOhm typ. Mic typ 1.2 kOhm Live typ 10 kOhm
@ Full Scale Not balanced +6dBu / max +15dBu Adjustable Volume +4dBu / max +15dBu +5dBu / max +15dBu 40 Ohm typ. < 16 Ohm, Headphones with up to 600 Ohm can be used | ||||||
- Description
-
YellowTec PUC2 Lite USB Audio Interface
If you need digital connectivity only, choose PUC2 Lite as a budget-friendly but high-class interfacing solution. It is the best choice for application fields that don’t require analog connectivity. Providing the same feature set as the PUC2 Line version, PUC2 Lite serves as a purely digital platform.
PUC2 Lite comes as a high-definition USB audio interface with professional digital inputs and outputs. It provides you with highest available audio standards up to 192kHz sample rate at 24-bit word-lengths with a sensational dynamic range of 114dB. The plug’n’play concept allows fast handling plus the optional use of our ASIO driver for advanced operators.
PUC2’s Zero Latency Monitoring allows you to monitor your audio signal in real-time. Choose between listening to the input signal, or the return path arriving via USB. For further monitoring convenience, an AUX output lets you connect a pair of headphones for a quick and easy audio signal check.
The computer connection panel features AES-3 inputs and outputs on XLRs, along with an USB port and a 3.5mm socket to configure zero latency monitoring modes. Since PUC2 is USB-powered, there is no bulky power supply and there are fewer cables to connect.
DETAILS
- High-definition USB Audio Interface to optimize your audio quality
- Same feature set as PUC2 Line but on a purely digital platform
- Budget-friendly option if analog connectivity is not required
- Plug’n’play concept allows for fast handling
- Delivers highest available audio standards
- 192kHz sample rate at 24-bit word-lengths
- Dynamic range of 114dB
- Fully USB-powered (USB-2.0 Type B)
- Digital inputs + outputs
- AES-3 input + output on XLR
- 3.5mm socket to configure zero-latency monitoring
- ASIO driver for advanced operators
- Sturdy aluminum unibody serves as a conductor + heat sink
- Dimensions: 18.5 x 12.7 x 4.5cm | Weight: 0.6kg
- An optional PSU is available to power PUC2 Line
- Specifications
-
PUC2 Tech Specs
PUC2 Lite PUC2 Line PUC2 Mic LEA Power < 1000 mA via USB
< 1000 mA via dual USB
< 1000 mA via dual USB + PSU
Clocking Jitter < 15 mUI Peak < 15 mUI Peak < 15 mUI Peak Frequency Accuracy +/- 10 ppm +/- 10 ppm +/- 10 ppm Input Selection AES3 only Automatic with AES Detection
Automatic with AES Detection
Digital Input Format AES 3 + SPF/DIF AES 3 + SPF/DIF AES 3 + SPF/DIF Connectors XLR XLR XLR Sampling Rate 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Depth 24 Bit 24 Bit 24 Bit Digital Output Analog Input
Analog Output
Format Connectors Sampling Rate Bit Depth
Electronically balanced Input Level 1 (switchable) Input Level 2 (switchable) Input Level 3 (switchable)
Impedance
Electronically balanced Output Level 1 (switchable) Output Level 2 (switchable) Output Level 3 (switchable)
Impedance
AES 3 + SPF/DIF AES 3 + SPF/DIF AES 3 + SPF/DIF XLR XLR XLR
44.1 kHz, 48 kHz, 88.2 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 44.1 kHz, 48 kHz, 88.2 kHz,
96 kHz, 176.4 kHz, 192 kHz 96 kHz, 176.4 kHz, 192 kHz 96 kHz, 176.4 kHz, 192 kHz
24 Bit 24 Bit 24 Bit
@ Full Scale
+6dBu / max +15dBu -∞ … +18dBu
+4dBu / max +15dBu
+5dBu / max +15dBu
18 kOhm typ. Mic typ 1.2 kOhm Live typ 10 kOhm
@ Full Scale Not balanced
+6dBu / max +15dBu Adjustable Volume
+4dBu / max +15dBu
+5dBu / max +15dBu
40 Ohm typ. < 16 Ohm,
Headphones with up to
600 Ohm can be used
