Description

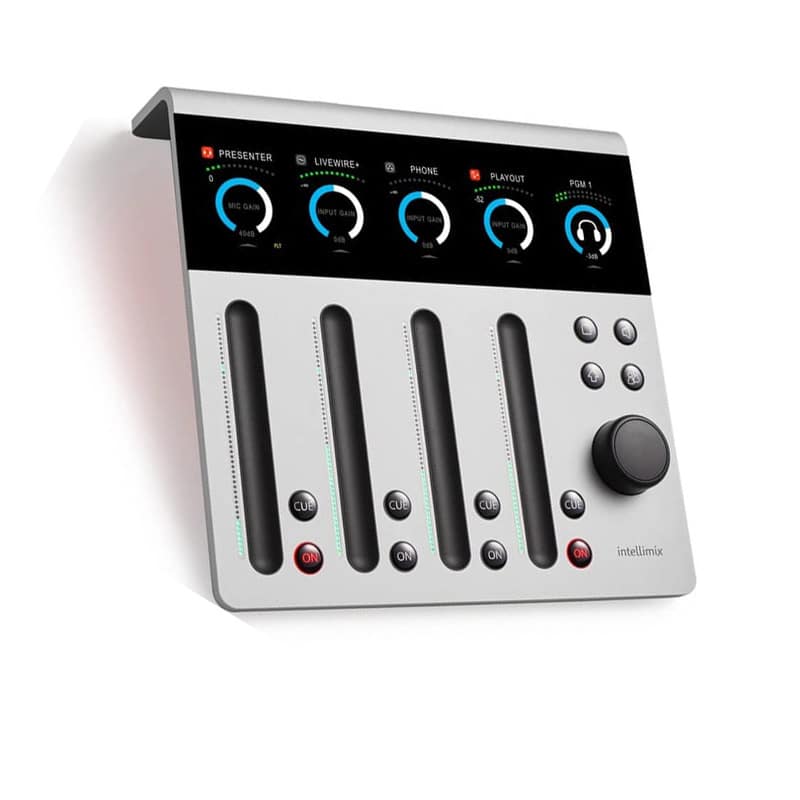

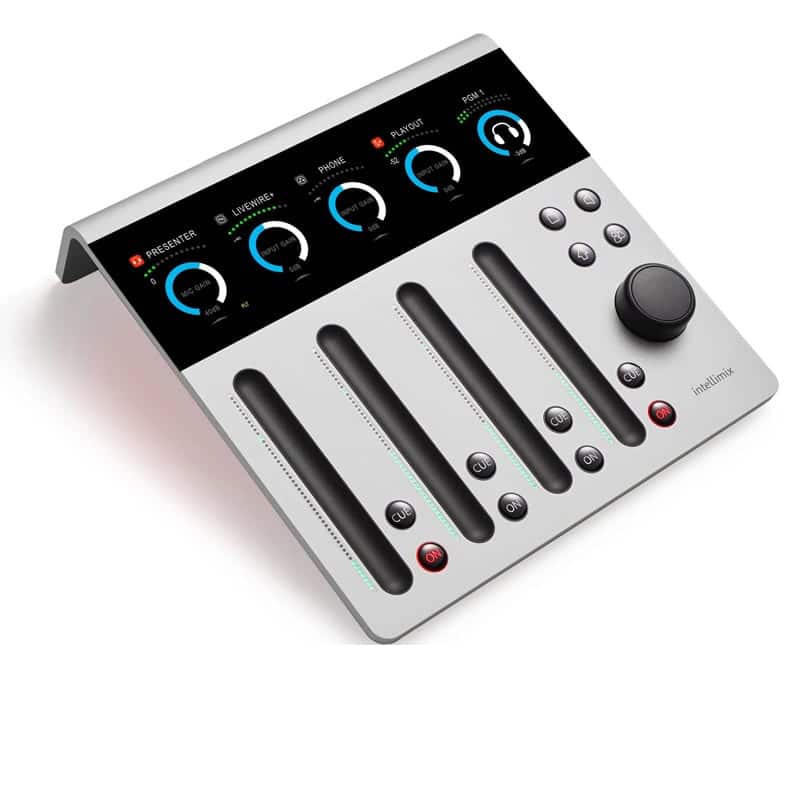

YellowTec Intellimix FOCUS Desktop Mixer
The Intellimix FOCUS Desktop Mixer is as a full-blown 8-channel mixer with DANTE AoIP connectivity as standard, extended I/Os and detailed setting options. Intellimix gets you control over eight inputs with channels displayed in two layers. It is designed as a mixing device to master every imaginable and complex 8-channel mixing task. Thanks to remote control options, admin mode and an unlimited amount of user profiles, Intellimix PRO is ideal for shared workplaces.

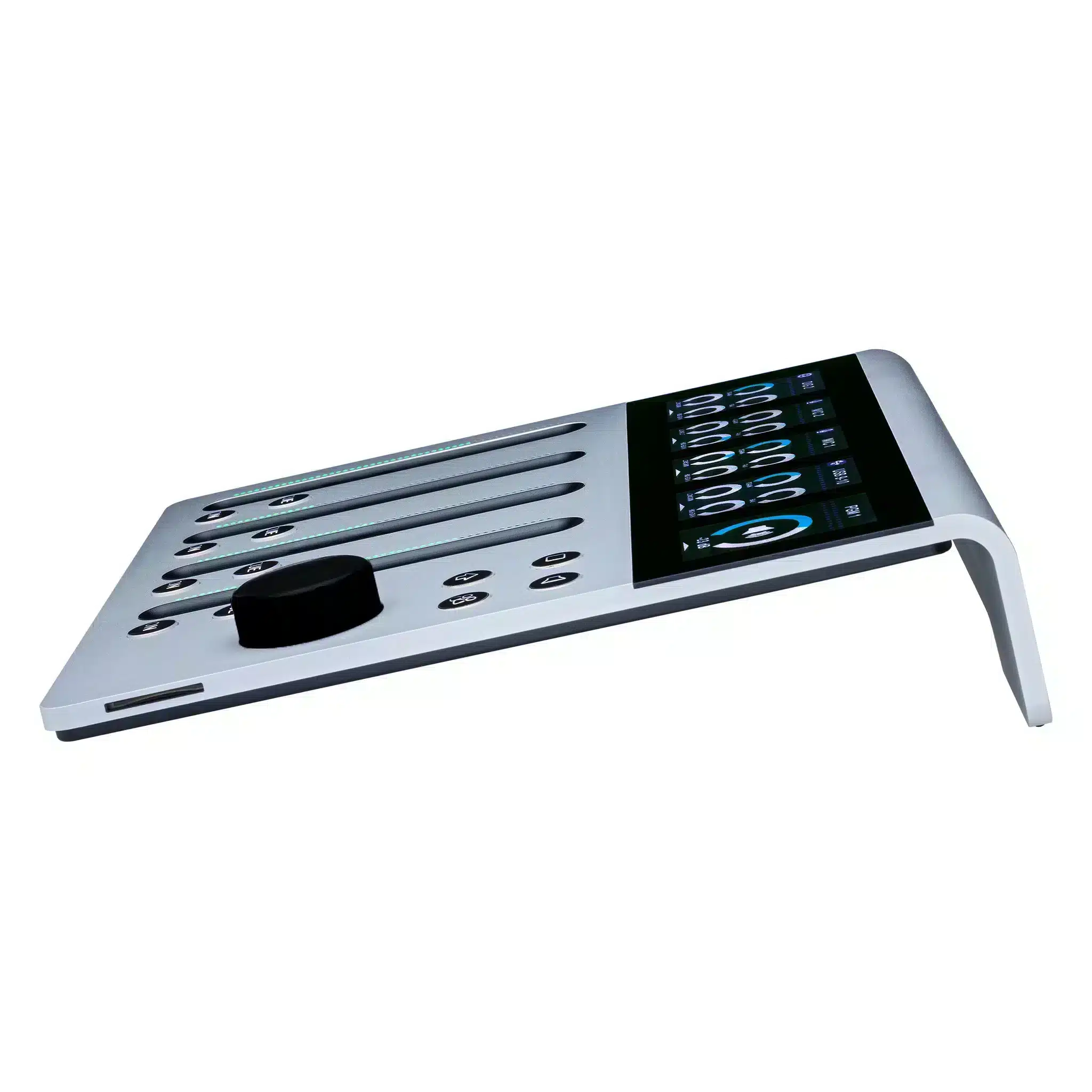

The basic elements of the Intellimix Control Unit are its four G-Touch© fader, the multitouch widescreen display and a rotary control. As a whole new fader technology, the G-Touch© fader combines all the existing fader types’ benefits in a whole new way. Receive an enormous responsiveness and physical orientation when sliding your fingers through the molded groove. Make use of the option to preset fader positions and enjoy different fader modes and various LED bar graph indication options.

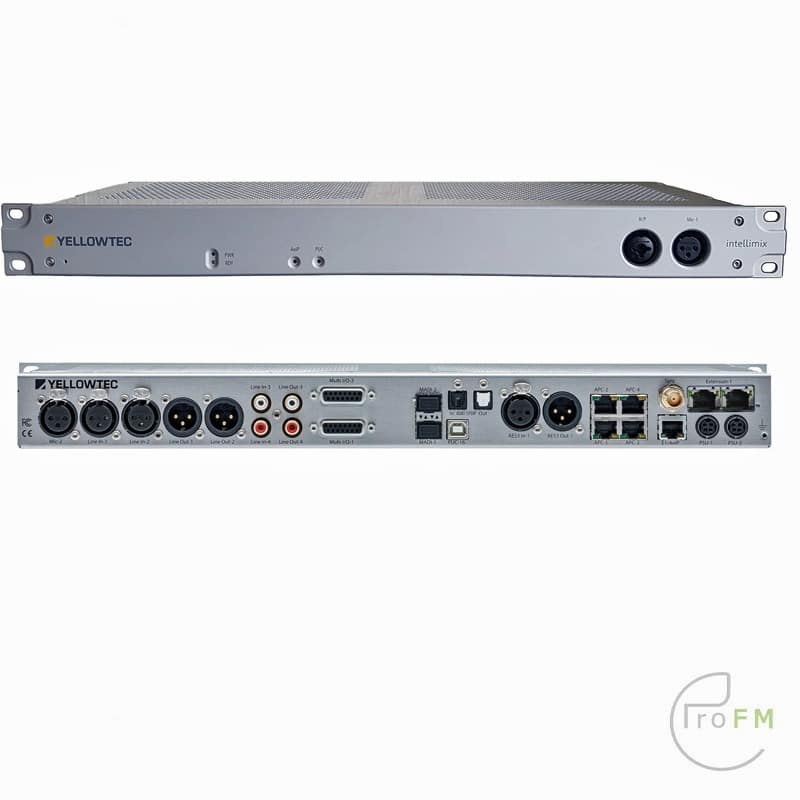

The Intellimix Base Unit is where the audio-processing takes place. Directly access headphone and microphone inputs on its front side. All the other in- and outputs are located on the Base Unit’s rear side. In contrast to Intellimix FOCUS, Intellimix PRO comes with built-in X64 AoIP solution. As series, it offers you full-blown audio-over-IP connectivity to AES67, Livewire, Dante, RAVENNA, NMOS and SMPTE ST2110.
DETAILS
✓ 4-channel mixer with DANTE AoIP connectivity as standard
✓ X64 AoIP connectivity is available ↪ X64 AoIP Extension
✓ Solid aluminum body with Red Dot awarded product design
✓ 1x user profile, simplified setting options
✓ EQ: high: Shelving / mid: Bell / low: Shelving
✓ Dynamics: Auto-gain compressor (ratio/gain)
✓ Dynamics: Limiter (threshold, release time)
✓ 4 simultaneous channels displayed in 1 layer
✓ Intuitive control + simplified settings
✓ 4x G-Touch® faders with LED bar graphs + choice of fader modes

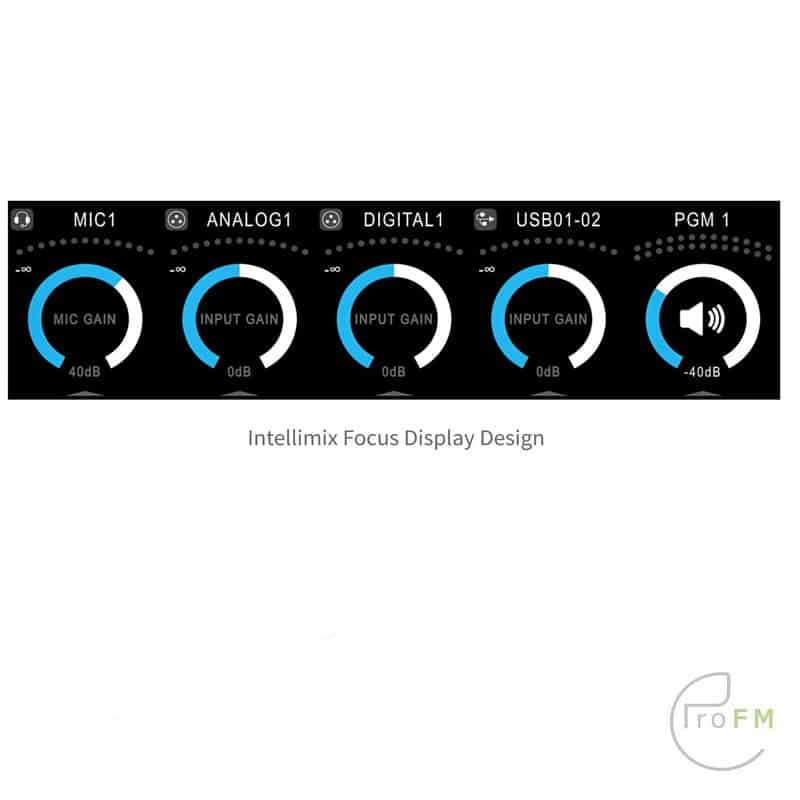

✓ Each of the 4 channel displays shows 1 parameters of your choice
✓ 1x master display section for overall setting + volume control
✓ Sealed hard keys + a robust rotary control for tactile feedback
✓ YT2202
SCOPE OF DELIVERY
✓ Intellimix FOCUS Control Unit
✓ Intellimix FOCUS Base Unit
✓ Permanently installed PoE-cable to connect both units
✓ Power supply unit
✓ Yellowtec microfiber cloth
✓ Optional self-adhesive rubber feet
✓ Intellimix Briefing Book
DETAILS
✓ 4-channel mixer with DANTE AoIP connectivity as standard
✓ X64 AoIP connectivity is available ↪ X64 AoIP Extension
✓ Solid aluminum body with Red Dot awarded product design
✓ 1x user profile, simplified setting options
✓ EQ: high: Shelving / mid: Bell / low: Shelving
✓ Dynamics: Auto-gain compressor (ratio/gain)
✓ Dynamics: Limiter (threshold, release time)
✓ 4 simultaneous channels displayed in 1 layer
✓ Intuitive control + simplified settings
✓ 4x G-Touch® faders with LED bar graphs + choice of fader modes
✓ Each of the 4 channel displays shows 1 parameters of your choice
✓ 1x master display section for overall setting + volume control
✓ Sealed hard keys + a robust rotary control for tactile feedback
Inputs (channel count in mono
)
✓ Mic/Line: 2x XLR, balanced, selectable sensitivity -77dBu…+18dBu
✓ Line analog: 2x XLR, balanced + 2x RCA, unbalanced (max. 24dBu)
✓ Line digital: 3x AES3/EBU with sample rate converters
✓ ADAT-S/PDIF: 1x selectable ADAT 8-channel or S/PDIF stereo output
✓ USB: 1x multichannel PUC2 16 mono / 8 stereo outputs
Outputs (channel count in mono
)
✓ Line analog: 4x XLR, balanced + 2x RCA, unbalanced (max. 24dBu)
✓ Headphone: 2x 1/4″ stereo jack
✓ Line digital: 3x AES3/EBU with sample rate converters
✓ ADAT-S/PDIF: 1x selectable ADAT 8-channel or S/PDIF stereo output
✓ USB: 1x multichannel PUC2 16 mono / 8 stereo outputs
✓ Buses: 2x Program, 2x Aux, 4x Mix Minus (incl. 2x with b-line control)
✓ GPIO/GPIOs: 2x GPI on optocoupler + 4x GPO from PhotoMOS relay
✓ OPTION: Compatible with optional ↪ X64 AoIP Extension
for AES67, Livewire+, Dante, RAVENNA, NMOS + SMPTE ST2110
✓ Dimensions (packaging): 54.5 x 31.5 x 17.5cm | Weight: 4.5kg
✓ Dimensions Control Unit: 24.5 x 24.5cm | Base Unit: 19”
✓ Compatible with Yellowtec’s b-line Phone Hybrid
✓ Connect b-line + control calls directly via Intellimix Control Unit
