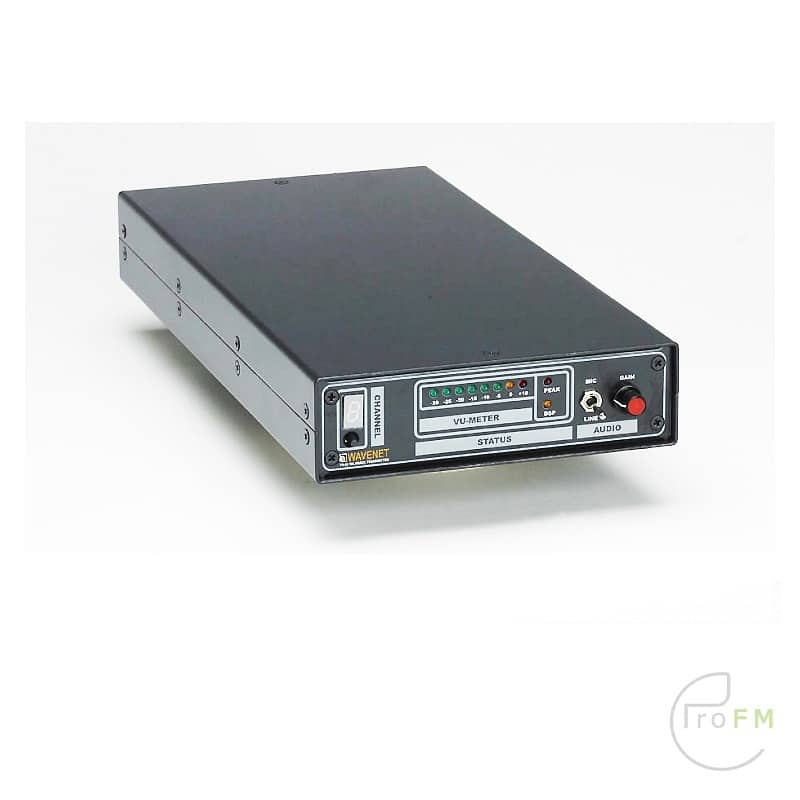

Wavenet TR-42 Talkback Transmitter/ Full-duplex Base Station

The TR-42 is a very useful transmitter that can be used for multiple purposes like talkback transmitter together with the RD-42 in order to conform a full-duplex base station for live events. Also can be used like studio talkback transmitter for presenters or any other kind of working crew needing a very high quality transmission.

Price includes standard antenna and power supply

Key Facts:

• TR42 / 42V is a multifunction transmitter which, depending on laboratory settings,can be used as wide band, semi-wide band or narrow band transmitter.
• It can be compatible with broadcast quality systems, walkie-talkie systems, or inear receivers (PHONAK)
• Up to 5W output power. It is specially designed to work when it is necessary to cover large areas.
• It can be used for multiple purposes, like talkback transmitter together with any portable receiver.
• It can be also used like a studio talkback transmitter for presenters or any other kind of working crew needing a very high quality transmission.

Radio

Frecuency range 174-500 MHz*, window de 20 MHz depending on versions (A,B,C)
Power Up to 5W, 100%, duty cycle, delayed ON
Channels 16, PLL digital
Ch Selector 1 digit hexadecimal encoder, delayed
Modulation /- 30 KHz* pre-emphasis 50us (other standards upon request)
Output impedance 50 Ω
Spurious emissions < -65 dBc
RF output connector Type N

Audio

Audio Input Mic/líne sel.
NR system “Silenzo” Compressor limiter
Gain Control Front Panel
AF bandwidth 50 Hz/15 KHz* /- 0,5 dB
Distorsion < 0,3%
Audio connector XLR3 F
SNR > 85 dB
Indicators
VU-meter
Audio Peak
Channel display

General

ON/OFF Switch
Mic/line Switch
Channel encoder control
Audio Gain control
Power external 12V DC / 2 A
Power connector XLR4 F
Dimensions 300x145x40 mm (1/3 rack)
Weight 0,8 kg
RS 232 bus for reprogramming
* Other upon request.
