Wavenet TDM-17 Digital Full-Duplex Reporter System

Elevate your broadcasting infrastructure with Wavenet Radio’s TDM17 Digital reporter system. Designed for optimal audio management, this advanced solution empowers radio stations, event venues, and conference facilities with unparalleled flexibility and control. Seamlessly route and manipulate audio signals with precision, ensuring a superior broadcast experience.

The TDM17 is a cornerstone in wireless audio reporting , offering a user-friendly interface for effortless configuration and customization. Its robust construction ensures reliability, providing a durable and efficient solution for any broadcasting project. Ideal for radio studios or live event venues, the TDM17’s versatility adapts to diverse setups, making it an invaluable asset for professionals in the audio industry.

Invest in the future of broadcasting with Wavenet Radio’s TDM17 Digital Audio Matrix. Experience unmatched control, efficiency, and reliability in managing your audio signals. Trust Wavenet to deliver excellence in audio technology, propelling your broadcasting capabilities to new heights. Explore the possibilities of the TDM17 for a transformative audio management experience tailored to meet the demands of modern broadcasting.

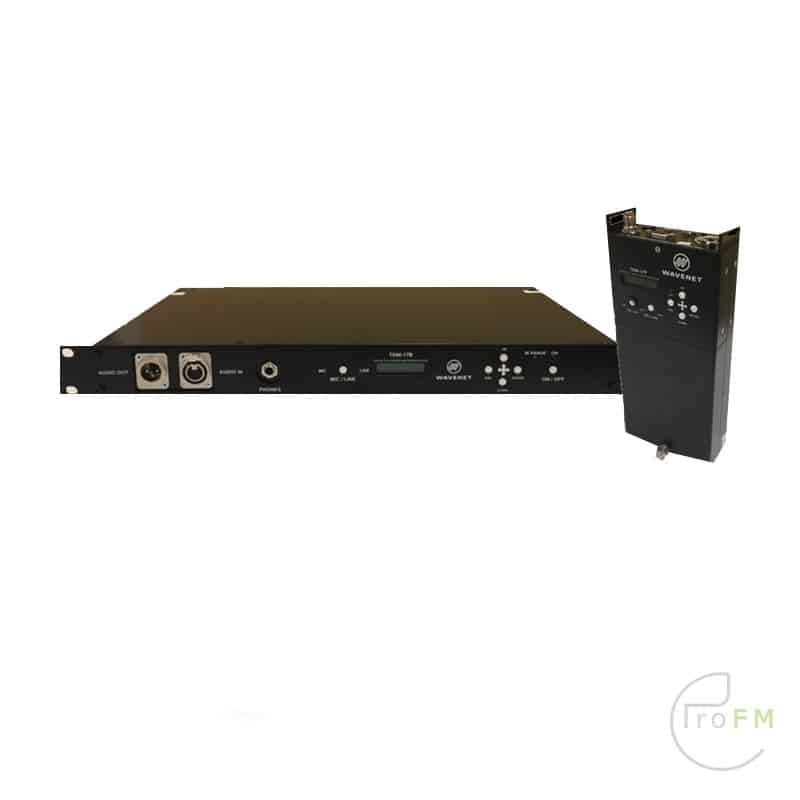

The TDM 17 digital equipment is made up of the reporter unit TDM 17P and the base TDM 17B. It is a digital broadcast quality full-duplex communication system, working just in one frequency for transmission and reception, which allows to use only one antenna With 3W output power, it is specially designed in agressive RF environments.

Compact and light equipment, very easy to operate both in the portable and base unit. Exceptional sturdiness and absolute reliability.
Reporter unit is powered by a long life Ion/lithium battery, which reaches till 10 hours of continuous working. It has RF level, error correction and battery status indications. It has also micro / line selector.

Base can be powered both DC 12 V and AC 220 V (external power power supply is included). It has level adjustable headset output, RF level and error correction indications and micro / line selector.

RADIO

Frequency: 175 to 900 MHz (window 7%) under demand
Number of channels: 16 (others under demand)
Media access: simultaneous TDM Tx and Rx
Nominal deviation: /- 19.250 kHz
Modulation: FDMW2
Error correction: Reed-Solomon FEC
Output power: 3 W
Peak deviation: /- 57.750 kHz
Synthesizer resolution: 4,7 Hz
Input / output impedance: 50 Ohm
Spurious emissions: according to ETSI ETS 300 454
Rx sensitivity: -100 dBm @ packet error rate < 5e-10
Data rate: upstream downstream = 110 kbps
Comply with ETSI, FCC y ARIB
Adjacent channel rejection: 60 dB

AUDIO

Input and output impedance: 600 Ohm
SNR: > 85 dB
Audio bandwidth: 11 Hz – 18 kHz
Audio output level: 10 dBm max
Distortion: < 0,3%
Portable part Tx audio: broadcast wide band quality
Base part Tx audio: broadcast wide band quality
Encoding: WOC 24
Sampling frequency: 48 kHz

TDM 17P (portable)

16 selectable channels
Micro / line selector
Headphones jack connector
Balanced XLR3 micro / line input
Antenna connector: TNC
Battery status indicator: (orange 30′ left, red 15′ left)
RF level and error correction status indicators
High capacity lithium battery. 7.4 V / 5.8 Ah Thermal range: -45 ºC / 80 ºC
Dimensions (mm): 214 x 112 x 46
Weight: 1.5 kg (battery included)
Delivered with bandolier, antenna and battery charger

TDM 17B (base)

16 selectable channels
Line output: XLR3
Balanced XLR3 micro / line input
Adjustable level front headphones outputs
Micro / line selector
Antenna connector: TNC
RF level and error correction status indicators
Powering: 12 VDC / 220 VAC
(External power supply included)
Thermal range: -45 ºC / 80 ºC
Dimensions (mm): 228 x 128 x 40
Weight: 1,5 kg
