Wavenet TDM-1630 full duplex digital mobile audio link

Discover the pinnacle of broadcasting technology with the TDM1630 from Wavenet Radio. This state-of-the-art digital audio matrix brings unparalleled flexibility and control to your broadcasting setup. Ideal for radio stations, conferences, and live events, the TDM1630 seamlessly manages audio routing with precision.

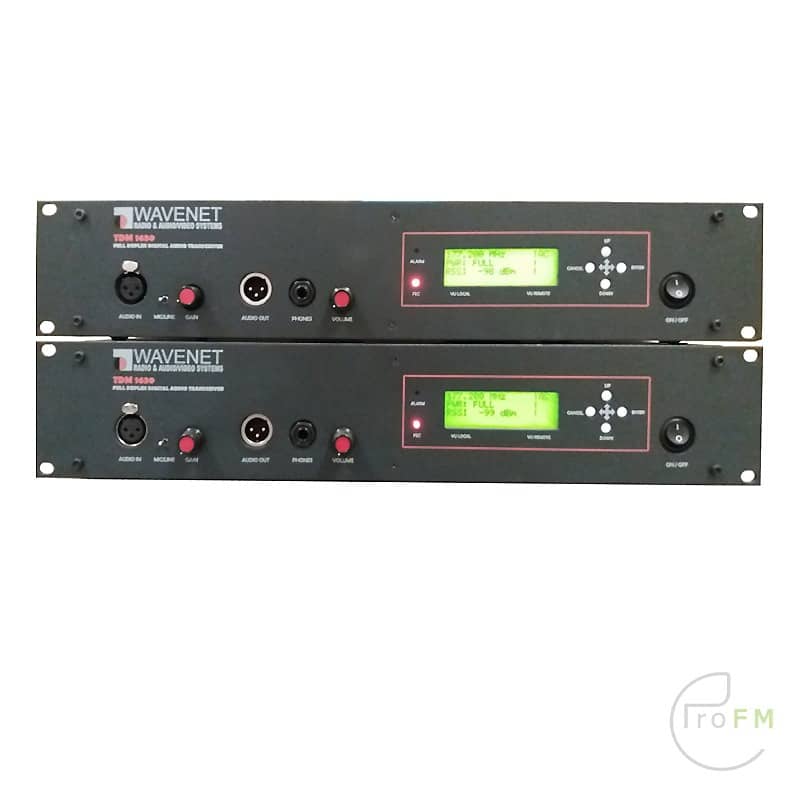

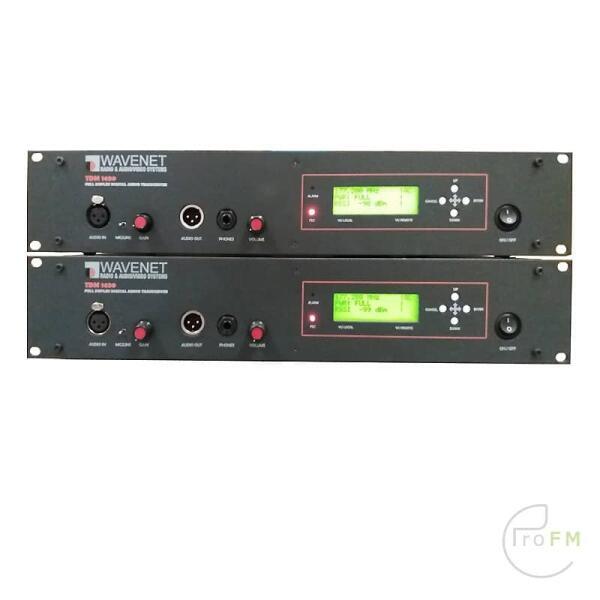

The WavenetTDM 1630 equipment is a digital transceiver designed to be used as a professional full duplex audio link for contribution in radio broadcasting.

It is made of all necessary components to process audio from analog to digital, and modulate carrier uplink, and the opposite processes in downlink.

It works in just one frequency for uplink and downlink. In this way, we will get a mobile broadcast quality full duplex audio link with only a pair of TDM 1630 equipment.

The high output power and reception sensitivity makes it a highly useful system for live news gathering.

TECNICAL SPECIFICATIONS
RADIO
Frequency: from 175 a 900 Mhz (7% window)
Number of channels: 10 (other under request)
Media access: simultaneous TDM Tx and Rx
Modulation: FDMW2
Error correction: Reed-Solomon FEC
Sinthesizer resolution: 4.7 Hz
Spurious emissions: complying with ETSI ETS 300 454
Data rate: uplink + downlink = 250 kbps
Locking: 75 dB @ 1 MHz
Nominal deviation: +/- 32,5 kHz
Peak deviation: +/- 65 kHz
Output power: up to 30 W
Output impedance: 50 Ohm
Rx sensitivity: -100 dBm @ packet error rate < 5e-4
Complying ETSI, FCC and ARIB

AUDIO
Audio input and output: 600 Ohm balanced
Uplink audio bandwidth: 7.5 kHz / 15 kHz
Downlink audio bandwidth: 7.5 kHz / 15 kHz
Distortion: < 0,3%
Encoding: WAC 64 kbps
Sampling frequency: 16 kHz / 32 kHz
SNR: > 85 dB

GENERAL
Micro / line selector
Headset jack connector with adjustable level
XLR3 micro / line balanced input
XLR3 line balanced outputWeight: 3 kg
Antenna connector: N type
RF level (RSSI) and FEC error correction indication
Temperature range: -45 ºC / +80 ºC
Dimensions: 2HU 19″ x 250 mm
Weight: 3 kg
Power supply: 12 VDC / 220 VAC with authomatic switch-over
