Wavenet TDM-15 Wireless Digital Reporter Set

 3.999,00

Wavenet TDM-15 Wireless Digital Reporter Set

The Wavenet TDM-15 digital Full-Duplex reporter system comprises TDM 15P reporter unit and TDM 15B base. It offers broadcast-quality communication with single-frequency operation for seamless transmission.
Category: SKU: 792b Tag:

Description

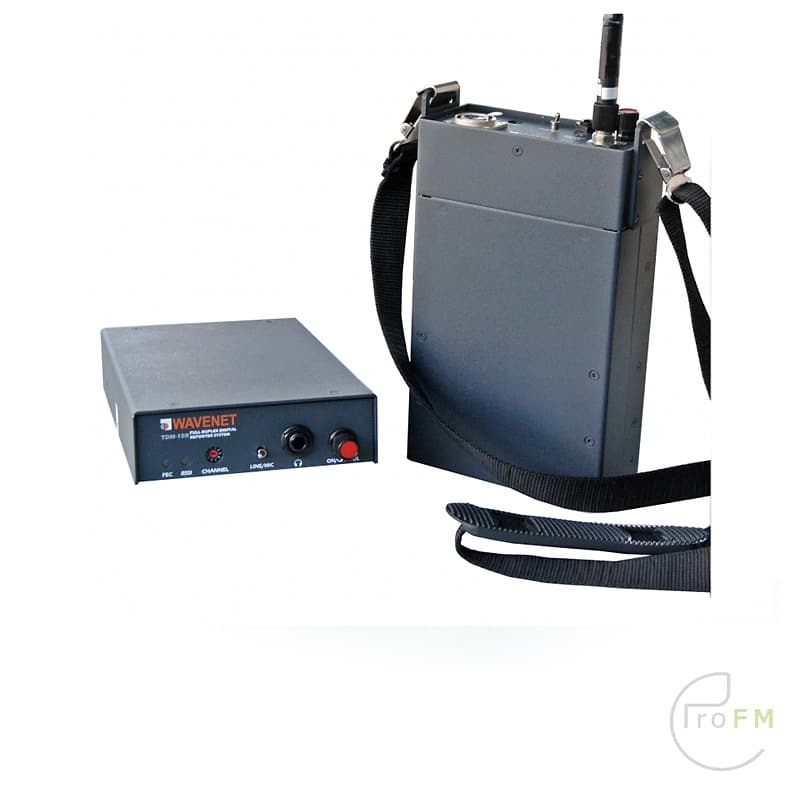

Wavenet TDM-15 Wireless Digital Full-Duplex Reporter System

TDM 15 digital equipment is made up of the reporter unit TDM 15P and the base TDM 15B. bIt is a digital broadcast quality full-duplex communication system, working just in one frequency for transmission and reception, which allows to use only one antenna. Compact and light equipment, very easy to operate both in the portable and base unit. Exceptional sturdiness and absolute reliability.

Reporter unit is powered by a long life Ion/lithium battery, which reaches till 10 hours of continuous working. It has RF level, error correction and battery status indications. It has also micro / line selector. Base can be powered both DC 12 V and AC 220 V (external power power supply is included). It has level adjustable headset output, RF level and error correction indications and micro / line selector.

Radio

Frequency: 175 MHz / 800 MHz / 900 MHz
Locking: 75 dB @ 1 MHz
Media access: simultaneous TDM Tx and Rx
Nominal deviation: /- 32,5 kHz
Modulation: 4GFSK
Peak deviation: /- 65 kHz
Error correction: Reed-Solomon FEC
Output power: 1 W
Synthesizer resolution: 4,7 Hz
Input / output impedance: 50 Ohm
Spurious emissions: according to ETSI ETS 300 454
Rx sensitivity: -100 dBm @ packet error rate < 5e-4
Data rate: upstream downstream = 130 kbps
Comply with ETSI, FCC y ARIB
Adjacent channel rejection: 60 dB

Audio

Audio output/input: 600 Ω
Audio bandwidth: 7,5 KHz / 15 KHz
Distortion: <0,3%
Coding: WAV 64 kbps
Sampling frequency: 16 KHz / 32 KHz
SNR: >85 dB
Audio output level: +10 dBm max.
Portable Tx Audio: Broadcast quality wide band Portable Tx Audio: Broadcast quality wide band
Adjacent channel reject: >60 dB Base
Tx Audio: Broadcast quality wide band

TDM-15P (Portable)                                                                      TDM-15B (Base)
10 Selectable channel                                                                   10 Selectable channel
Micro/Line selector Line output XLR3                                            Headset jack connector XLR3 Micro/Line balanced input
XLR3 Micro/Line balanced input                                                    Jack connector with adjustable level
headset output

Antenna connector: TNC Micro/Line selector
Battery status indicator: Orange led 20%, Led led 10%
Antenna connector: TNC
RF level and error correction indications
RF Level and error correction
indications

High capacity Lithium battery: 11,2V / 7,8 Ah
Power supply: DC 12V / AC 220V (external power supply)
Temperature range: -45° C to +80°C Temperature range: -45° C to +80°C
Measurements: 210 x 128 x 58 mm
Measurements: 228 x 128 x 40 mm
Weight: 1,5 kg (battery included) Weight: 0,6 kg
IT IS SUPPLIED WITH BANDOIER, ANTENNA AND BATTERY CHARGER IT IS SUPPLIED WITH EXTERNAL POWER SUPPLY AND ANTENNA

Description

Wavenet TDM-15 Wireless Digital Full-Duplex Reporter System

TDM 15 digital equipment is made up of the reporter unit TDM 15P and the base TDM 15B. bIt is a digital broadcast quality full-duplex communication system, working just in one frequency for transmission and reception, which allows to use only one antenna. Compact and light equipment, very easy to operate both in the portable and base unit. Exceptional sturdiness and absolute reliability.

Reporter unit is powered by a long life Ion/lithium battery, which reaches till 10 hours of continuous working. It has RF level, error correction and battery status indications. It has also micro / line selector. Base can be powered both DC 12 V and AC 220 V (external power power supply is included). It has level adjustable headset output, RF level and error correction indications and micro / line selector.

Specifications

Radio

Frequency: 175 MHz / 800 MHz / 900 MHz
Locking: 75 dB @ 1 MHz
Media access: simultaneous TDM Tx and Rx
Nominal deviation: /- 32,5 kHz
Modulation: 4GFSK
Peak deviation: /- 65 kHz
Error correction: Reed-Solomon FEC
Output power: 1 W
Synthesizer resolution: 4,7 Hz
Input / output impedance: 50 Ohm
Spurious emissions: according to ETSI ETS 300 454
Rx sensitivity: -100 dBm @ packet error rate < 5e-4
Data rate: upstream downstream = 130 kbps
Comply with ETSI, FCC y ARIB
Adjacent channel rejection: 60 dB

Audio

Audio output/input: 600 Ω
Audio bandwidth: 7,5 KHz / 15 KHz
Distortion: <0,3%
Coding: WAV 64 kbps
Sampling frequency: 16 KHz / 32 KHz
SNR: >85 dB
Audio output level: +10 dBm max.
Portable Tx Audio: Broadcast quality wide band Portable Tx Audio: Broadcast quality wide band
Adjacent channel reject: >60 dB Base
Tx Audio: Broadcast quality wide band

TDM-15P (Portable)                                                                      TDM-15B (Base)
10 Selectable channel                                                                   10 Selectable channel
Micro/Line selector Line output XLR3                                            Headset jack connector XLR3 Micro/Line balanced input
XLR3 Micro/Line balanced input                                                    Jack connector with adjustable level
headset output

Antenna connector: TNC Micro/Line selector
Battery status indicator: Orange led 20%, Led led 10%
Antenna connector: TNC
RF level and error correction indications
RF Level and error correction
indications

High capacity Lithium battery: 11,2V / 7,8 Ah
Power supply: DC 12V / AC 220V (external power supply)
Temperature range: -45° C to +80°C Temperature range: -45° C to +80°C
Measurements: 210 x 128 x 58 mm
Measurements: 228 x 128 x 40 mm
Weight: 1,5 kg (battery included) Weight: 0,6 kg
IT IS SUPPLIED WITH BANDOIER, ANTENNA AND BATTERY CHARGER IT IS SUPPLIED WITH EXTERNAL POWER SUPPLY AND ANTENNA
