Wavenet System 5000 OB Audio Radio Link

The system 5000 is a long range radio link broadcast quality audio, designed for easy handling and high reliability. and exist of the BS500 and RS5000 unit. BS 5000 Tx has a RF power more than 30W, and 5 audio inputs with switchable micro/line gain selector. This versatility allows you to use virtually any situation.

RS 5000 Rx gives a high sensitivity in signal reception, and a great resistance to interferences. This features ensure the correct working of the receiver with all kinds of electronic equipment.

Both of them have a complete backlit display with navigation keys acting and posing all parameters, alarms and equipmentselections.

Accept power supply 90-250 VAC and 12 VDC. It is 19” format, can be installed in a standard rack.

Mobile radio-link transmitter BS-5000

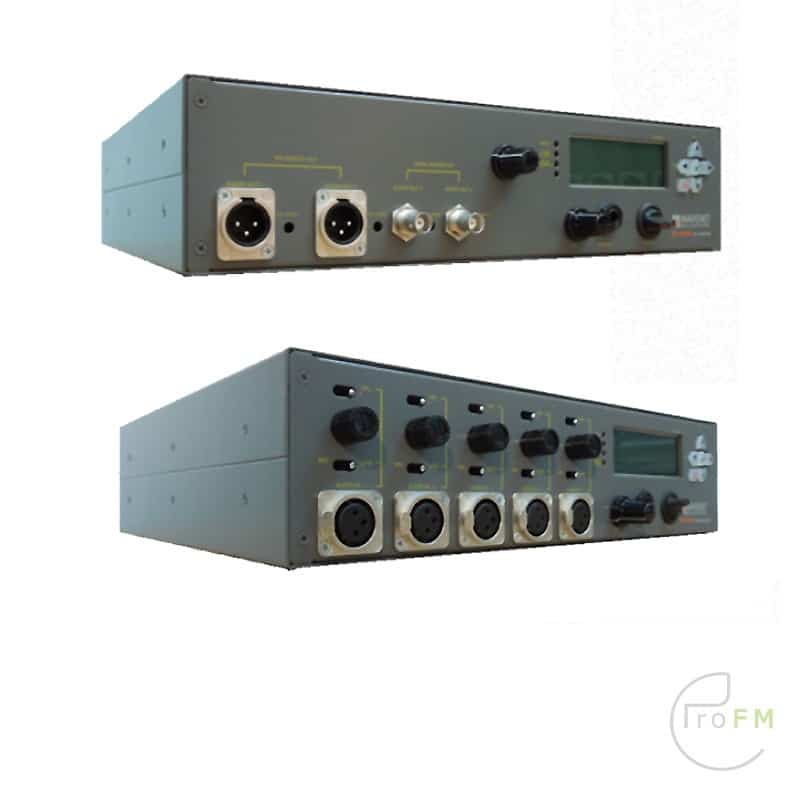

The BS-5000 base transmitter is a long range broadcast quality audio radio link, designed for an easy handling and high reliability. BS-5000 transmitter has a RF power above 30W with up to 200 selectable working frequencies (174 to 500 MHz- 40MHz window). This device has been made using the highest current manufacturing standards. It has SW controlled protection redundancy developed by Wavenet. BS-5000 also has 5 inputs with switchable micro-line gain selector. This versatility allows you to virtually manage with any situation. It has a complete backligthed display with navigation keys acting and posing all parameters, alarms and equipment selections. This system can be easily transported by mean of a handle buit-in in one of its sides. Accepts 90-250VAC and 9-36VDC powering, allowing its use in any situation. It may be optionally remotely controlled by Ethernet.

Radio-link receiver RS-5000

RS-5000 is a multi-channel base receiver working in 174-500 MHz. Designed to be used with BS-5000 base transmitter or BS-2000 / BS-2011 / BS-3507 or the portable unit STAR-42. Its advanced design gives a high sentitivity in signal reception and a great resistance to interferences. These features allow you to work with all kinds of electronic equipment. It is a FM wideband receiver with up to 200 selectable channels. It has a complete backligthed display with navegation keys acting and posing all parameters, alarms and equipment selections. The equipment is housed in a mechanized aluminum case and includes a carrying handle on one of its sides for easy of transport. It can be powered by 90-250VAC and 9-36VDC, which eases its use in any situation. Optionally it can be remotely controled by IP.

Radio-link receiver RS-5000

Technical characteristics
Frequency generation By mean of a PLL controlled digital synthesizer with 4 buttons for direct selection of four frequencies.
Reception frequency 174 to 500 MHz programable (window of 40 MHz depending on versions)
Number of channels Up to 200 programmable
Modulation FM of /- 20 kHz (other standards upon request)
Sensitivity Better than 0.5mV for 20dB SINAD
Spurious Below 2nW
Noise reduction Expansor “Silenzo ” selectable (ON/OFF)
SNR SNR (with -47 dBm and /-20 kHz deviation, 70us of de-enphasis and audio bandwidth of 12.5 kHz): >65dB
Frequency reponse from 40 Hz to 7.5 kHz (with 75us de-enphasis) > /- 0.5 dB
DSP 16 bit signal digital processor to control management system, including 16 A/D converters and 16 D/A converters
RF input impedance 50 ohms with N female connector on rear panel
Frequency stability Better than /- 1 ppm from -10oC to 50oC
Audio bandwidth 5 / 7.5 / 10 y 12.5 kHz configurable
Distortion < 0.3%
De-emphasis 50us / 75us / No de-emphasis
Front panel audio outputs
– 2 balanced outputs XLR3 conenctor
– 2 unbalanced outputs BNC female connector
Note: Each audio output has own level control (subpanneled
Power Continuous VAC from 90 to 250V – IEC connector
Continuous VDC from 9 to 36V – 15 pin Sub-D male connector
Mechanized aluminum case
Dimensions 355x85x295 mm with rack 19” 2U adaptor and handle transport
Weight 3 kg
Thermal range -10 C to 50 C
Squelch control By rotary switch on the front panel
Squelch indication OPEN/CLOSED by LED
Squelch adjust level On display
PLL status LED engage/disengage on front panel
Audio monitoring Audio output with jack 6.35 mm connector and level control > 200mW
ON/OFF switch on front panel
Rear panel serial port 9 pin Sub-D connector to programming
VDC reverse polarity protection
Display
4 lines/20 characters screen with menu navegation buttons that exhibit at least indications and configuration of:
– Working frequency
– Squelch level
– RSSI
– Audio output level
– De-emphasis selection (50us / 75us / OFF)
– Expansor selection: ON / OFF
– Selected frequency indication
– Selected power indication
– Selected de-enphasis indication
– Audio output level indication
– POWER ON indication by LED
– PLL engaged/disengaged by LED
– Squelch OPEN/CLOSED by LED

Mobile radio-link transmitter BS-5000

Technical characteristics
Frequency generation By mean of a PLL controlled digital synthesizer with 4 buttons for direct selection of four requencies.
Transmission frequency 174 to 500 MHz programmable (window of 40 MHz depending on versions).
Channels Up to 200 programmable.
Modulation FM /- 20 kHz (other ones under request).
Power 30W over 50 Ohm.
RF output connector N female on the rear panel.
RF output impedance 50 Ohms.
DSP 16 bit digital signal processor for managing and controlling the system, including 16 A/D and 16 D/A converters.
Frequency stability Better than /- 1 ppm from -10C to 50C.
AF bandwidth 5 / 7.5 / 10 y 12.5 kHz configurable.
Distortion Better tahn 0.3%
Audio input connectors 5 XLR3 female and mic /líne selector.
Input impedance 600 Ohms and 10 kOhms balanced.
Mixing controls for each one and PFL (pre-monitoring).
Monitoring 6.35 mm stereo connector with volume control and > 200mW output.
Input audio level Micro: between -68 and -35 dBm.
Line: between 0 and 12 dBm.
Spurious Better than 65 dBc.
NR system ON/OFF selectable“Silenzo ” compressor-limiter.
SNR >65dB at 75 us pre-emphasis and 20 kHz modulation.
Residual asynchronous AM modulation Better than -60 dBc.
Residual synchrounous AM modulation Better than -50 dBc.
Pre-emphasis 50us / 75us / No pre-emphasis.
Mechanized aluminum case.
Dimensions 355x85x295 mm with rack 19” 2U adaptor and handle transport.
Powering Continuous 90 to 250 VAC – IEC connector
Continuous 9 to 36VDC – 15 pins Sub-D male connector.
Consumption Below 200 W.
Thermal range -10 C to 50 C.
Weight 4.2 kg
Ventilation 2 fans for forced convection.
Protections ROE, thermal, VDC reverse polarity.
ON/OFF switch.
9 pins Sub-D connector for serial programming in the rear pannel.
Display
This equipment has a 4 lines x 20 characteers display with four buttons for menu navigation. It shows, among others, indications and adjustment of:
– Working frequency.
– Direct access to 4 preset frequencies.
– Transmitted power.
– Reflected power.
– Modulation levels.
– Pre-emphasis.
– Compressor-limiter.
– Thermal and ROE alarms.
– Power source indication.
– Screen contrast.
– Screen back light.
– Power ON LED indication.
– PLL engage/disengage LED indication.
– ROE alarm LED indication.
– Thermal alarm LED indication.
