Description
Wavenet System 42 Analog Portable Reporter set

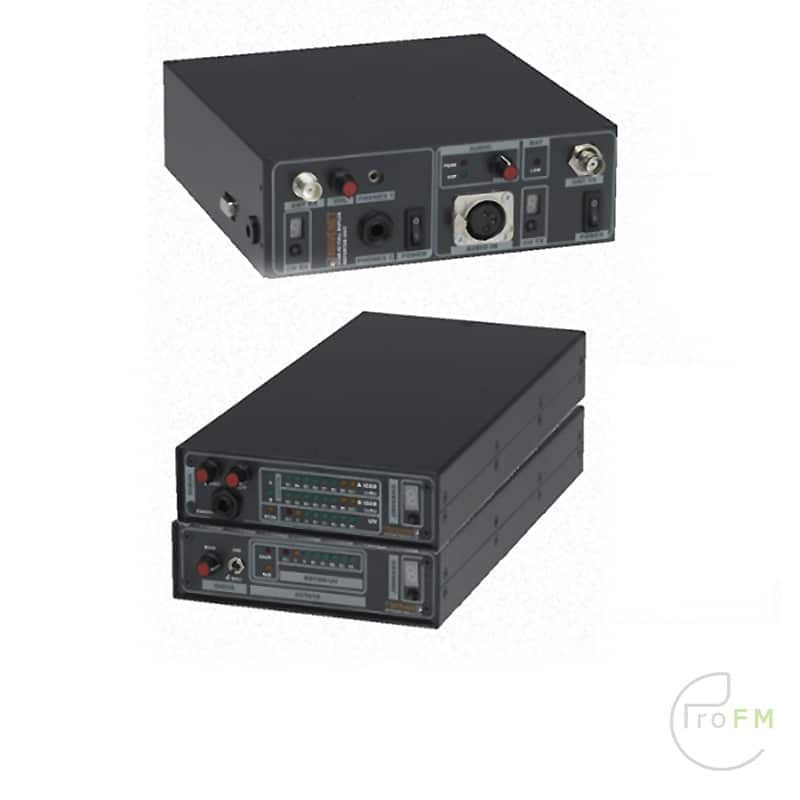

SYSTEM 42 equipment is made up of the portable reporter unit STAR 42, RD42 true diversity receiver and TR42 talkback transmitter. It is a broadcast quality full-duplex communication system.
Portable transmition works in VHF band, talkback transmition works in UHF band (others under demand). With up 3W output power, the system allows to work extensive areas, and it is specially designed to work in aggressive RF environments.
The system is supplied with all necessary elements to work: antennas and battery for portable unit, antennas and power supply for base (RD42 TR-42) unit, external charger (which allows to charge batteries out and into the portable unit), and other complements. Exceptional sturdiness and absolute reliability.
Price includes standard antennas, battery for STAR 42, CH-42 battery charger, power supply for RD-42 & TR-42, leather bag for STAR 42 and PELI 1560 case.
Reporter unit STAR-42
The STAR-42 full-duplex reporter unit has been designed thinking in stituations where a portable and autonomous system allows to perform live reports. Together with the RD-42 diversity receiver and the TR-42 return transmitter, conforms a complete full-duplex link suitable to work in live ENG. The unit is equiped with a 16 channels in the transmitter side as well as 16 channels in the receiver section. The transmitter is a high quality wireless microphone with a power up to 3W* in order to cover extensive areas.
The talkback receiver completes the full-duplex system. Its innovative design gets an excellent radio and audio fidelity in signal bandwidth and dynamics. The unit is provided with a comfortable leather bag for transport. The STAR-42 operates from a Li-Ion battery (type DR-202) that guarantees an endurance no less than 6 hours of continuous work.
True diversity receiver RD-42
The RD-42 is a high quality true diversity receiver system specially designed to be used in very crowded places like the live sport venues or similar. Together with TR-42, the RD-42 conform a complete full-duplex base station system highly indicated to be used in live events of any type.
Talkback transmitter TR-42
The TR-42 is a very useful transmitter that can be used for multiple purposes like talkback transmitter together with the RD-42 in order to conform a full-duplex base station for live events. Also can be used like studio talkback transmitter for presenters or any other kind of working crew needing a very high quality transmission.
| Radio | |
|---|---|
| Frecuency range | 174-500 MHz*, 30 MHz window (depending on versions A,B,C) |
| Power | Up to 3W, 100% duty cycle delayed ON |
| Channels | 16 PLL digital |
| Channel selection | Encoder digital |
| Modulation | +/- 30KHz*, pre-emphasis 50us (other standards upon request) |
| Output impedance | 50 ? |
| Spurious emissions | < -65 dBc |
| RF output connector | TNC |
| Audio | |
| Audio input | Variable gain, balanced |
| NR system | Compressor/limiter SILENZO+ |
| Gain control | Front panel |
| AF bandwidth | 50Hz/15KHz* +/- 0,5dB |
| Distorsion | < 0,3% |
| Audio connector | XLR3, F |
| SNR | > 85 dB |
| Indicators | |
| Battery LOW | |
| Channel encoder | |
| General | |
| ON/OFF switch | |
| Channel encoder control | |
| Audio gain control | |
| Aluminium enclousure | |
| Dimensions | 240x42x145mm |
| Power | Rechargeable Li-Ion battery pack Dr-202 type |
| Weight | 1,5 kg (battery included) |
RENG-42 Specifications
| Radio | |
|---|---|
| Frecuency range | 174-500 MHz*, 10 MHz window (depending on versions A,B,C) |
| Sensitivity | -112 dBm/12 dB SINAD |
| Channels | 16, PLL digital |
| Channel selection | Encoder digital |
| Demodulation | +/- 30 KHz*,de-emphasis 50us (others standards upon request) |
| Input impedance | 50 ? |
| Spurious emissions | < 2 nW |
| RF Input connector | TNC |
| Audio | |
| Audio Output | Líne/ 600 ohm /balanced / Headphones |
| NR system | Expander SILENZO+ |
| Monitor Control | Front panel |
| AF bandwidth | 50Hz/15KHz* +/- 0,5dB |
| Distorsion | < 0,3% |
| Audio connector | XLR3 M (rear) jack stereo1/4″(front) |
| SNR | > 100 dB |
| Indicators | |
| RSSI (90 dB range) | |
| VU-meter | |
| Channel encoder | |
| General | |
| ON/OFF Switch | |
| Channel encoder control | |
| Monitor volume, squelch | |
| Aluminium enclosure | |
| Dimensions | 300x42x145mm |
| Power | External 12 VDC / 0,250 A or 8 type C alkaline batteries |
| Power connector | XLR4 F |
| Weight | 1,5 kg |
| Radio | |
|---|---|
| Frecuency range | 174-500 MHz*, window de 20 MHz depending on versions (A,B,C) |
| Power | Up to 5W, 100%, duty cycle, delayed ON |
| Channels | 16, PLL digital |
| Ch Selector | 1 digit hexadecimal encoder, delayed |
| Modulation | +/- 30 KHz* pre-emphasis 50us (other standards upon request) |
| Output impedance | 50 ? |
| Spurious emissions | < -65 dBc |
| RF output connector | Type N |
| Audio | |
| Audio Input | Mic/líne sel. |
| NR system | “Silenzo” Compressor limiter |
| Gain Control | Front Panel |
| AF bandwidth | 50 Hz/15 KHz* +/- 0,5 dB |
| Distorsion | < 0,3% |
| Audio connector | XLR3 F |
| SNR | > 85 dB |
| Indicators | |
| VU-meter | |
| Audio Peak | |
| Channel display | |
| General | |
| ON/OFF Switch | |
| Mic/line Switch | |
| Channel encoder control | |
| Audio Gain control | |
| Power | external 12V DC / 2 A |
| Power connector | XLR4 F |
| Dimensions | 300x145x40 mm (1/3 rack) |
| Weight | 0,8 kg |
| RS 232 bus for reprogramming | |
.
