Description
Wavenet ENG-42 Reporter System
Immerse yourself in unparalleled broadcasting freedom with the Wavenet ENG-42 Portable Transmitter. This cutting-edge reporter / mobile redefines on-the-go broadcasting, offering a compact and versatile solution for journalists, broadcasters, and content creators.
The Wavenet ENG-42 is designed for seamless mobility, enabling you to transmit high-quality audio from any location. With a user-friendly interface and robust construction, this portable transmitter ensures reliability and convenience in the field. Its advanced features include frequency agility, making it adaptable to diverse broadcasting environments.
Ideal for remote broadcasts, live events, or journalistic reporting, the Wavenet ENG-42 guarantees professional-grade transmission. The transmitter’s compact size belies its powerful capabilities, providing an exceptional range and clarity for your broadcast. With the Wavenet ENG-42, you’re equipped to take your broadcasts anywhere. Elevate your on-the-go broadcasting experience with this portable transmitter, where freedom meets uncompromised audio quality. Invest in the Wavenet ENG-42 for a transformative broadcasting solution that empowers your content creation on the move.

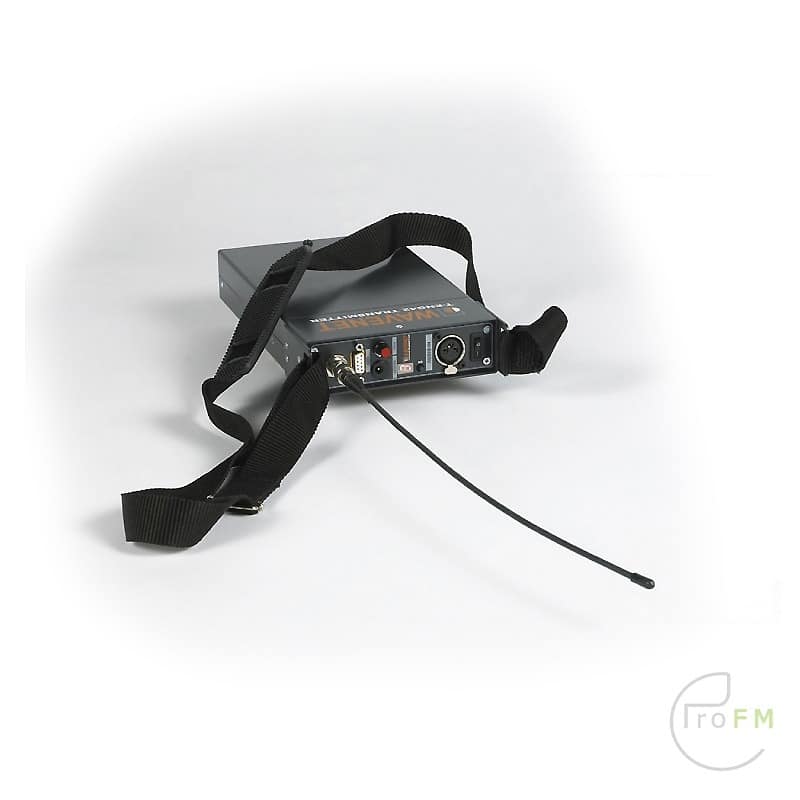

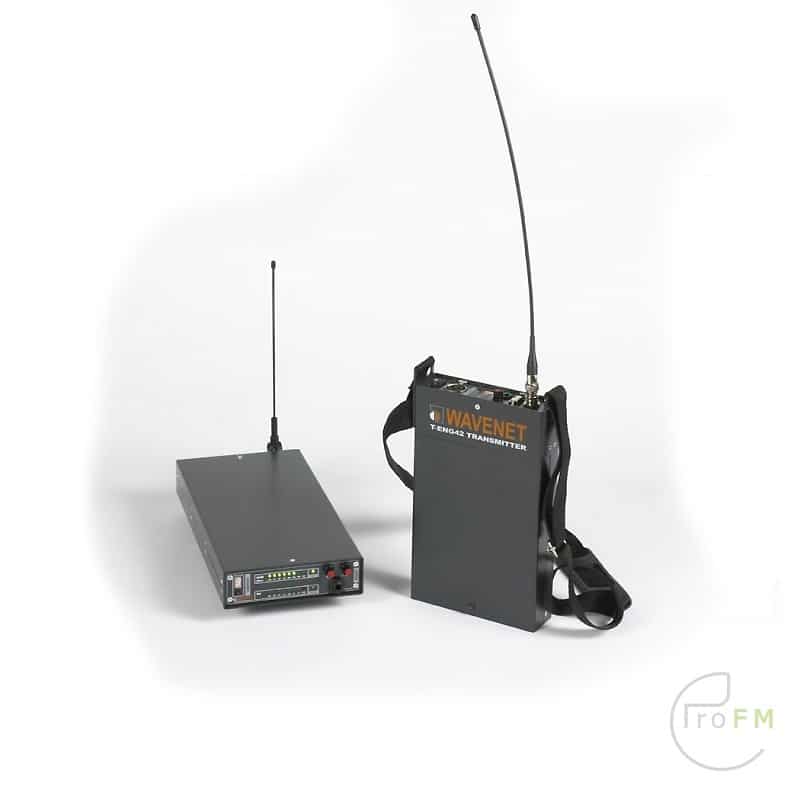

These small and portable units, T-ENG-42 and R-ENG-42, are designed to be a ENG solution for the small or medium broadcasters that need a very high quality and versatile equipment together with a very competitive budget. The system consists in a transmitter T-ENG-42 powered with a Li-Ion battery and receiver R-ENG-42, featuring a very simple system for field use.
The system is available with a external charger CH-42.
| Radio | |
|---|---|
| Frecuency range | 174-500 MHz*, 30 MHz window (depending on versions A,B,C) |
| Power | Up to 3W, 100% duty cycle delayed ON |
| Channels | 16 PLL digital |
| Channel selection | Encoder digital |
| Modulation | +/- 30KHz*, pre-emphasis 50us (other standards upon request) |
| Output impedance | 50 ? |
| Spurious emissions | < -65 dBc |
| RF output connector | TNC |
| Audio | |
| Audio input | Variable gain, balanced |
| NR system | Compressor/limiter SILENZO+ |
| Gain control | Front panel |
| AF bandwidth | 50Hz/15KHz* +/- 0,5dB |
| Distorsion | < 0,3% |
| Audio connector | XLR3, F |
| SNR | > 85 dB |
| Indicators | |
| Battery LOW | |
| Channel encoder | |
| General | |
| ON/OFF switch | |
| Channel encoder control | |
| Audio gain control | |
| Aluminium enclousure | |
| Dimensions | 240x42x145mm |
| Power | Rechargeable Li-Ion battery pack Dr-202 type |
| Weight | 1,5 kg (battery included) |

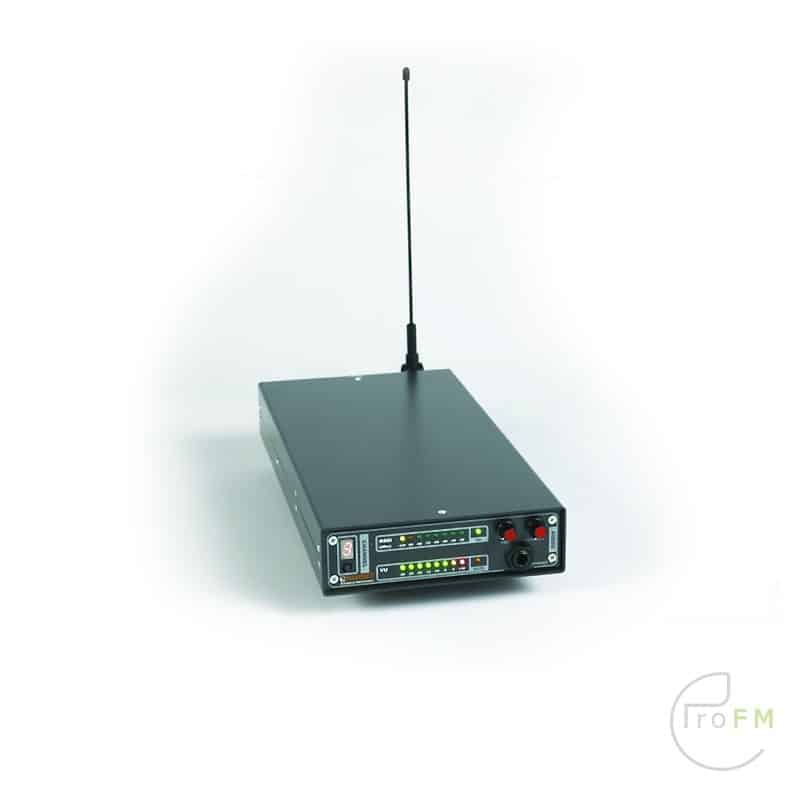

RENG-42 Specifications
| Radio | |
|---|---|
| Frecuency range | 174-500 MHz*, 10 MHz window (depending on versions A,B,C) |
| Sensitivity | -112 dBm/12 dB SINAD |
| Channels | 16, PLL digital |
| Channel selection | Encoder digital |
| Demodulation | +/- 30 KHz*,de-emphasis 50us (others standards upon request) |
| Input impedance | 50 ? |
| Spurious emissions | < 2 nW |
| RF Input connector | TNC |
| Audio | |
| Audio Output | Líne/ 600 ohm /balanced / Headphones |
| NR system | Expander SILENZO+ |
| Monitor Control | Front panel |
| AF bandwidth | 50Hz/15KHz* +/- 0,5dB |
| Distorsion | < 0,3% |
| Audio connector | XLR3 M (rear) jack stereo1/4″(front) |
| SNR | > 100 dB |
| Indicators | |
| RSSI (90 dB range) | |
| VU-meter | |
| Channel encoder | |
| General | |
| ON/OFF Switch | |
| Channel encoder control | |
| Monitor volume, squelch | |
| Aluminium enclosure | |
| Dimensions | 300x42x145mm |
| Power | External 12 VDC / 0,250 A or 8 type C alkaline batteries |
| Power connector | XLR4 F |
| Weight | 1,5 kg |
* Other upon request.
