Description

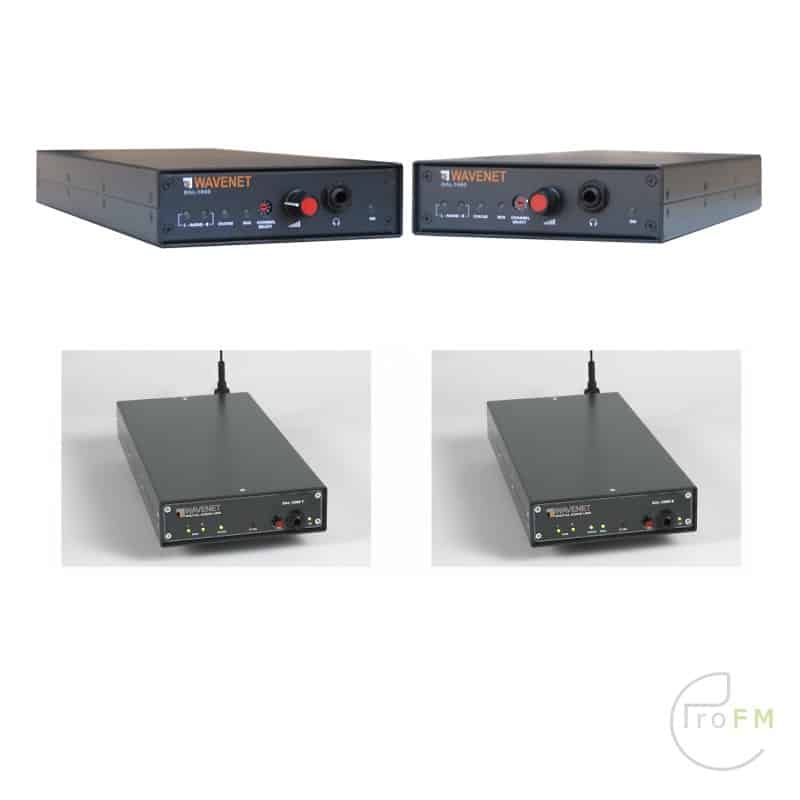

Wavenet DAL-1000 Stereo Digital STL Radio Link (in free ISM* bands)
The DAL-1000 audio link is a stereo audio point-point link. Designed and manufactured by WAVENET, it has been created to make easier the connection from one point to other one fast and nimble way. It is no required administrative process, considering that it works in ISM* bands.
This system is perfect for replacement of point-point links from studios to broadcasting centers without obtaining administrative license. Just with 100 mW power output, it is able to connect distances up to 25-30 km , transmitting and receiving L and R in broadcast quality.
Simplicity both in use and installation, adding to working in ISM* bands, make of this equipment a nimble, versatile and non-complexity solution.
License free operation possible in Europe, America and Asia!
RADIO
Frequency: 860 – 915 MHz ISM* bands ITU1, ITU2 ITU3
Number of channels: 10 selectables
Modultion: FDMW1
Error correction: Reed-Solomon FEC
Sinthesizer resolution: 4.7 Hz
Output power: max 100 mW
Spurious emissions: complying with ETSI ETS 300 454
Data rate: up to 400 kbps
Adjacent channel rejection: 60 dB
Locking: 75 dB @ 1 MHz
Nominal and peek deviation: /- 250 kHz
Output impedance: 50 Ohm
Rx sensitivity: -100 dBm @ packet error rate < 5e-4
According to ETSI, FCC y ARIB
AUDIO
Audio input and output: 600 Ohm balanced
Audio bandwidth: 20 Hz / 20 kHz -0,5 dB
Distortion: < 0.3%
Encoding: WAC 256 kbps
Sample frequency: 48 kHz
SNR: > 85 dB
Audio output level: 10 dBm max
GENERAL
Power connector: XLR4 male
ON / OFF switch
Channel selector
Power supply: 12 VDC 200 mA
Audio monitor in front pannel:1/4″ stereo jack
Tx and Rx antenna connector: N type
Tx audio connectors: XLR3 female
Rx audio connectors: XLR3 male
Aluminium encased
Dimensions (per unit): 300 x 145 x 40 mm (1/3 rack)
Weigth (per unit): 700 gr
Tx indications: status, power on and L / R peak
Rx indications: status, RSSI, power on and L / R peak
