Ubiquiti Nanobeam STL over IP with Sonifex Codec Set

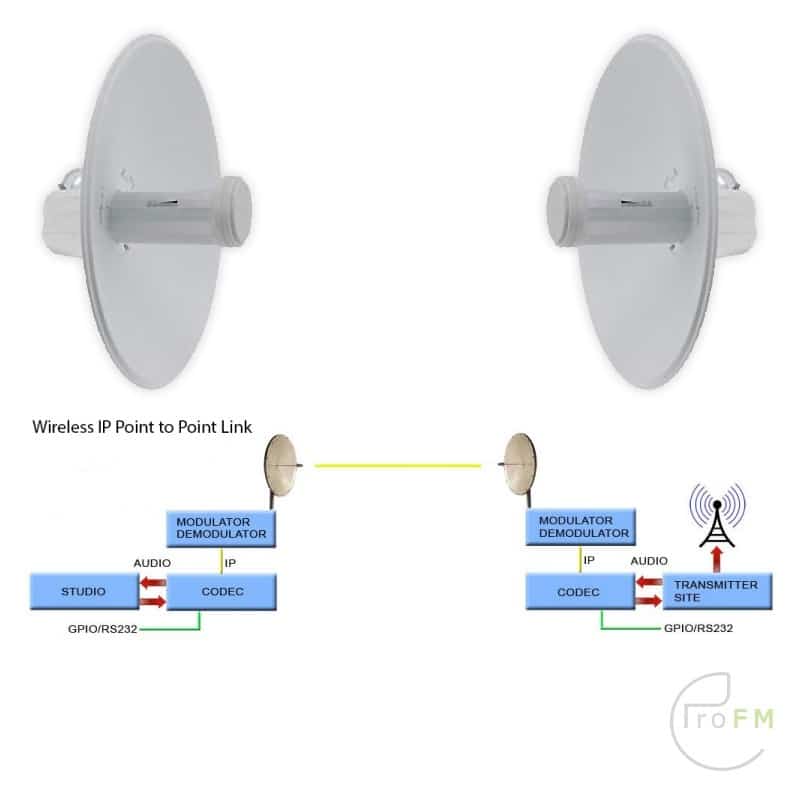

Utilizing the latest AirMax techonlogy, the Ubiquiti NanoBridge and Sonifex CODECS combo, offer an econmical solution for long distance wireless STL needs.

This package contains everything you need to get up and running. All you need to supply is a line of sight path between point A and point B. You can expect distances of 30Km with throughput of 150Mbps (line of sight) to be achieved without a problem.

This package contains:

• 2 x Ubiquiti Nanobeam wireless links including  power supplies and Power over ethernet adaptors
• 1 x Sonifex PS-SEND
• 1 x Sonifex PS-PLAY

Includes basic setup.

Dimensions 420 x 420 x 275 mm(16.54 x 16.54 x 10.83″)
Weight (Mount Included) 1.753 kg (4.789 lb)
Operating Frequency Worldwide: 5170 – 5875 MHz
USA: 5725 – 5850 MHz
Gain 25 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 8W
Power Supply 24V, 0.5A Gigabit PoE Supply Included
Power Method Passive PoE (Pairs 4, 5 ; 7, 8 Return)
Wind Survivability 200 km/h (125 mph)
Wind Loading 342.5 N @ 200 km/h (77 lbf @ 125 mph)
Certifications CE, FCC, IC
Mounting Pole Mounting Kit Included
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Salt Fog Test
IEC 68-2-11 (ASTM B117),
Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test
IEC 68-2-5 at 40° C (104° F),Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test
ETS 300 019-1-4,Equivalent: MIL-STD-810 G Method 506.5
