Description

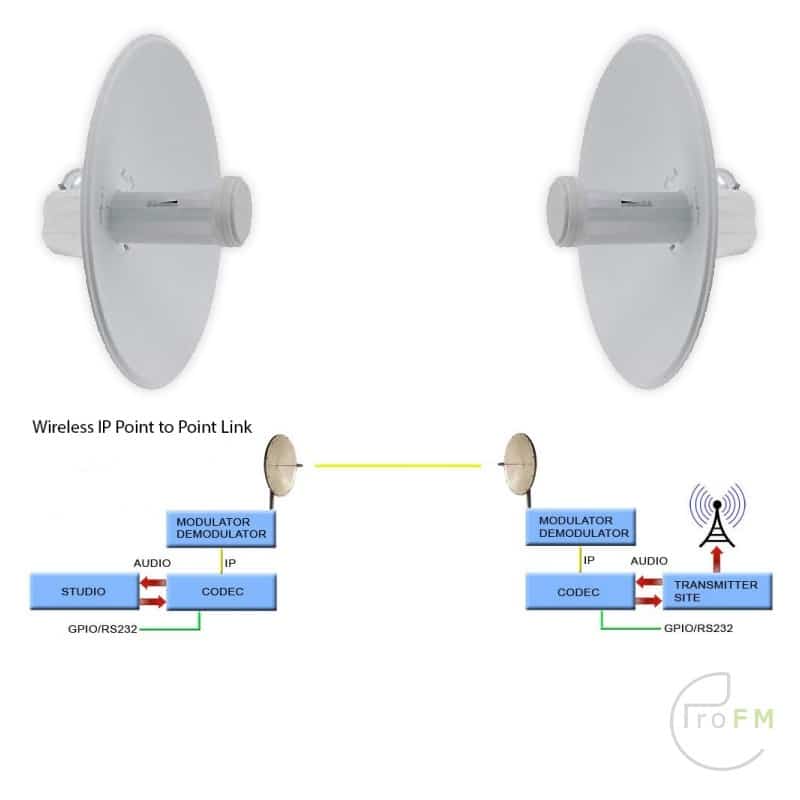

Ubiquiti Nanobeam Digital MPX over IP STL link set with EtherMPX Codecs
This Digital MPX over IP Connect you can create a visual connection between the studio and transmitter location that you realtime MPX (Stereo Audio RDS) signal to send.
This works the same as the previous analog STL connections, but without quality loss, and overshoots.
The big advantage is of course that the processing and RDS can remain in the studio. It is even possible to radiate multicast to multiple locations simultaneously transmitting and synchronizing even for a SFN network
The package includes:

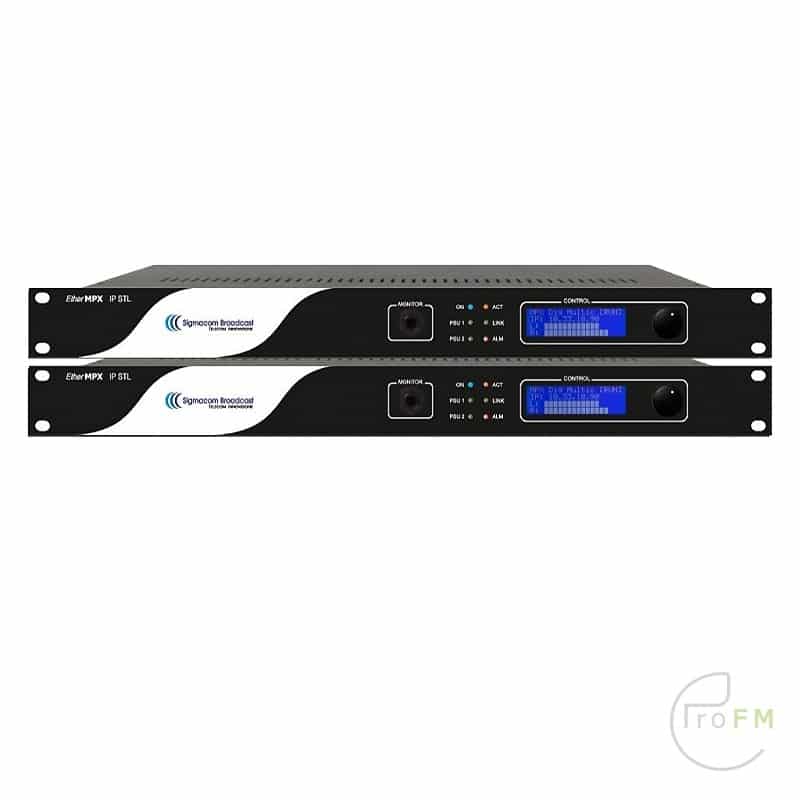

- EtherMPX IP Codec Set (encoder decoder)
- Ubiquiti Nano Beam 5.8 GHz point-to-point IP connection
- Pre-programmed and delivered plug and play.
Dimensions 420 x 420 x 275 mm(16.54 x 16.54 x 10.83″)
Weight (Mount Included) 1.753 kg (4.789 lb)
Operating Frequency Worldwide: 5170 – 5875 MHz
USA: 5725 – 5850 MHz
Gain 25 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 8W
Power Supply 24V, 0.5A Gigabit PoE Supply Included
Power Method Passive PoE (Pairs 4, 5 ; 7, 8 Return)
Wind Survivability 200 km/h (125 mph)
Wind Loading 342.5 N @ 200 km/h (77 lbf @ 125 mph)
Certifications CE, FCC, IC
Mounting Pole Mounting Kit Included
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Salt Fog Test
IEC 68-2-11 (ASTM B117),
Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test
IEC 68-2-5 at 40° C (104° F),Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test
ETS 300 019-1-4,Equivalent: MIL-STD-810 G Method 506.5
