Thimeo ST-Enterprise

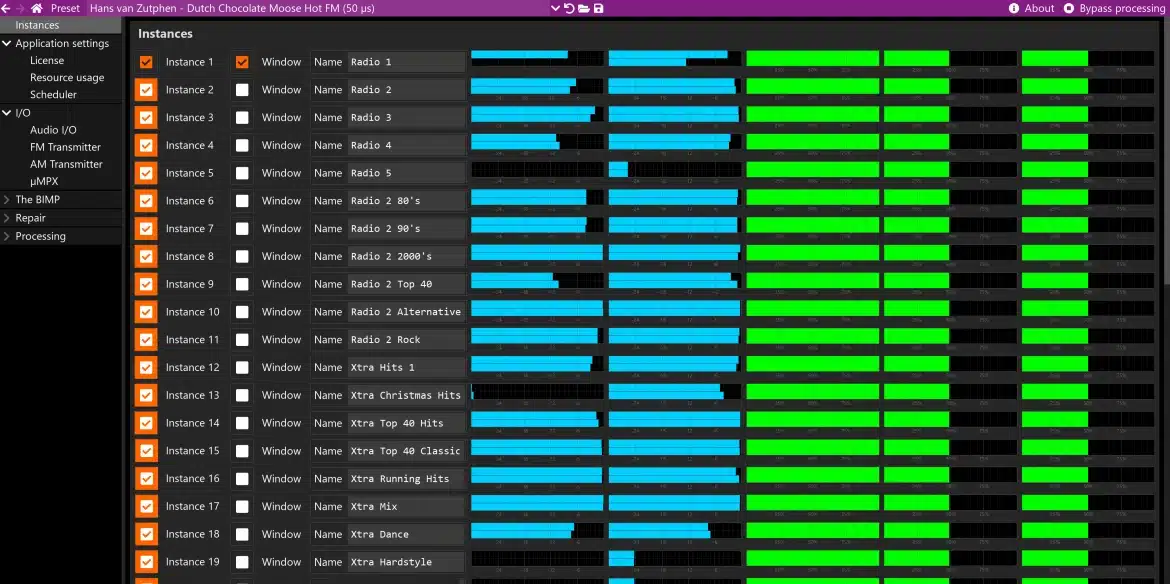

Thimeo ST-Enterprise is intended for larger media groups, which run multiple stations or channels. It does everything that Stereo Tool does, and more! With ST-Enterprise, you can run up to 50(*) FM and/or HD processors on a single pc, with a single interface to control them and an overview screen that shows the status of all the incoming and outgoing signals.

Efficient resource usage

By sharing resources between instances, ST-Enterprise makes more efficient use of the availalbe resources, mainly the processing power, and it allows you to share input sound cards between multiple processing instances.

Nielsen PPM, Kantar and Intrasonics watermarking

ST-Enterprise supports built-in Nielsen PPM, Kantar and Intrasonics watermarking for audience measurements.

All Features:

• Nielsen PPM watermarking
• Dehummer Removes unwanted constant sounds, such as a 50/60 Hz hum from bad cables
• Low Level Boost – Intended for classical music – Raises the level of very low level sounds without compressing louder sounds
• Stereo effects- Choice of multiple stereo wideners
  – AZIMUTH phase problems repair
  – Mono compatible mode, no phase cancellation
  – Automatic phase flip for anti-phase input
• Streaming final clipper- Clean and very loud
  – Hybrid clipping/limiting mode avaialble
  – Safe to use for low bitrate streaming
• Built-in microphone processor- Software mixing console (control via tablet!)
  – 2 channels
  – Runs alongside normal compression
  – No extra latency added
• FM Composite Clipper- Clean and very loud
  – Upto 140% audio level at 100% FM modulation
  – Gives 2-3 dB extra headroom for highs
  – Improves reception
  – Strict ITU-R SM.1268 (‘Stokkemask’) compliance
  – Be the loudest and cleanest station on the dial!
• Declipper- Repairs clipped audio
  – Removes distortion, restores dynamics
  – Also used by police forensics labs
• Natural Dynamics- Boosts percussion instruments
  – Great to restore dynamics in compressed music
• Multiband compressors- Two multiband compressors
  – Selectable number of bands, 2-9
  – Program-dependent dynamic timing
• Immersive Bass- Generates upper bass harmonics
  – Much warmer, more consistent sound
  – Makes bass audible on small speakers
• IceCast / ShoutCast stream- Built-in IceCast / ShoutCast streaming
  – MP3 and ogg/Vorbis, for now
• FM Stereo / RDS / RDBS- FM pre-emphasis
  – Built-in stereo and RDS encoder
  – Remote control via UECP or Telnet
  – Supports RT+, EON, TMC, EWS, IH etc
• FM multipath protection- Reduce RF bandwidth to improve reception
  – Compatible with all receivers
  – Upto 30 km bigger stereo reception area
• DelossifierImproves the sound of MPEG2/MP3 style lossy compressed files
• Automatic Gain Control- Slowly adjusts the input level
  – Can speed up on large changes
  – Program-dependent dynamic timing
• Auto EQ / Bass EQ- Corrects spectrum without compression
  – Consistent sound without affecting dynamics
• True Bass- Subharmonics generator
  – Adds deep bass that’s missing, mainly in older recordings
• AM processing- Upto 200% asymmetry
  – C-QUAM stereo and NRSC curve supported
  – Extremely steep bandpass filters
• FM ITU-R BS.412 limiter- Inaudible(*) BS.412 leveling
  (required in some EU markets)
• FM MicroMPX streaming- Streams the full composite signal,
  with pilot / RDS, to transmitter sites over IP.
  – Minimum required bitrate 320 kbit/s
  – Redundancy possible
  – GPS syncronization possible
  – Software and hardware decoders available

Analog Audio Interfaces
• Balanced Audio input and output, Stereo, on separate
Studiohub (RJ45) connectors
• Differential input, 18kOhm input impedance
• Software Switchable level/sensivity
(+6dbu/+24dbu)
• Frequency response (-1dB) 20..20‘000 Hz**
• Signal to Noise Ratio 87dB,THD 0.01%
• Stereo crosstalk -88 dB
• Input and output level software controllable

Digital Audio Interface
• AES3 on Studiohub (output only)

Ethernet
• 10/100Mbps auto rate, full/half duplex
• RJ-45 connector with integrated Link/Activity
• 802.3af PoE support
• Second 10/100 Ethernet port for future software support

External
• USB connector type A female
RS-232
• For serial metadata gateway or custom functions

contact input
• 8 discrete / dry contact input

Relay
• 8 relay contacts, 24V 0.5A, normally open

Mechanical
• Aluminum case, 620g
• Dimensions 216 x 38 x 125 mm
• (8.5 x 1.5 x 4.92” inch)
• rack and wall mountable using optional accessories

Supported Audio formats
• OPUS
• PCM
• AACplus
