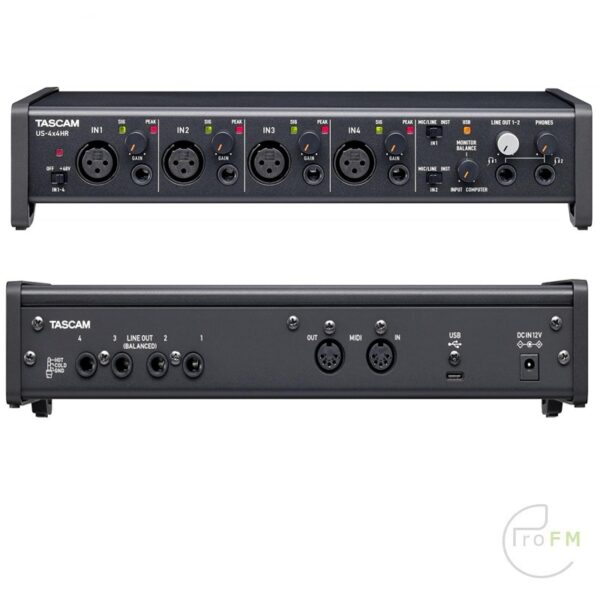

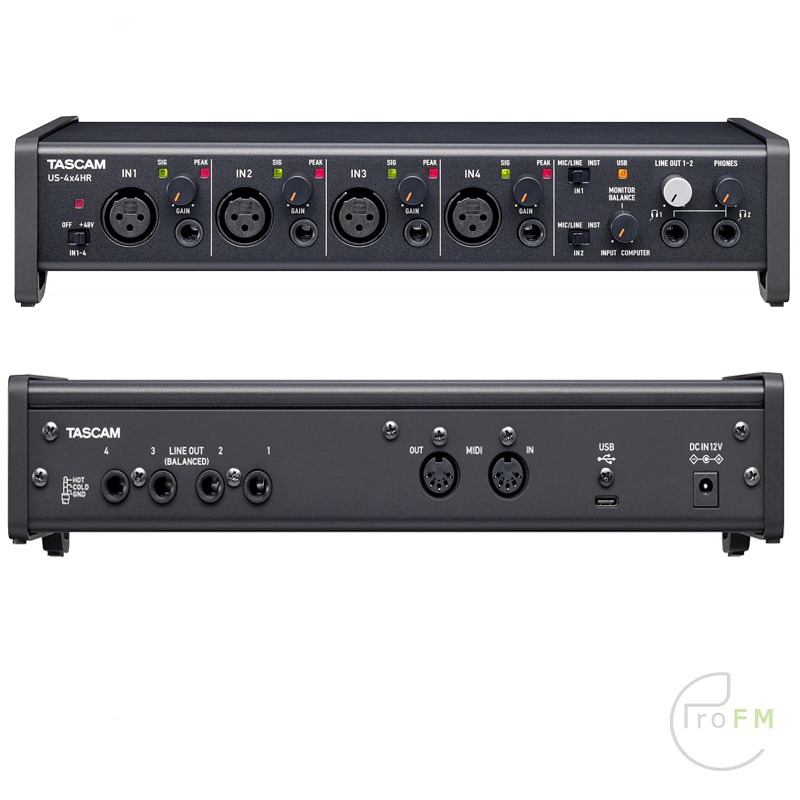

Tascam US-4x4HR High-Resolution USB Audio/MIDI Interface
The four-channel US-4x4HR is a member of the Tascam US-HR series of high-resolution USB audio interfaces and an enhanced version of the popular Tascam US-4×4. It provides four mic/line inputs, two of which can alternatively be used for direct input of a guitar or bass, four balanced line outputs, two headphones connectors, and MIDI I/O to your Windows or Mac computer or your iPhone or iPad*. This interface is ideal for multitrack recording of two instruments and two vocalists, for instance, or multi-media production with high demands on simple operation and studio-quality sound. The included loopback function and support for Open Broadcaster Software (OBS Studio), however, makes it also an excellent choice for two-channel podcast creation and live streaming.
Lower noise and distortion – better sound than ever
The versatile US-4x4HR incorporates a wealth of features, including high audio resolution up to 24-bit/192 kHz, ultra-low latency with a Windows buffer size starting at four samples, Ultra-HDDA mic preamplifiers with 48-volt phantom power for superior sound quality with ultra-low noise, a robust USB Type C connector, and a rich assortment of included software to start producing stunning audio right away.
Features:
- Advanced version of our popular US-4×4 with even better sound quality
- Provides four audio inputs and four audio outputs as well as a MIDI interface to a Windows or Mac computer or iOS device
- Audio resolution up to 192 kHz / 24 bit
- USB Audio Compliance 2.0 for iOS connection
| Audio resolution | |
|---|---|
| Sampling frequencies | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| Quantization bit depth | 24-bit |
| Analogue inputs | |
|---|---|
| Mic inputs (balanced) | XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) |
| Input impedance | 2.2 kΩ |
| Rated input level | –7 dBu (0.346 Vrms) |
| Maximum input level | +9 dBu (2.183 Vrms) |
| Gain range | 56 dB |
| Instrument inputs (unbalanced, MIC/LINE INST switch set to INST) | 6.3-mm standard TS stereo jacks (Tip: HOT, Sleeve: GND) |
| Input impedance | ≥1 MΩ |
| Rated input level | –6 dBV (0.501 Vrms) |
| Maximum input level | +10 dBV (3.162 Vrms) |
| Gain range | 56 dB |
| Line inputs (balanced, MIC/LINE INST switch set to MIC/LINE) | 6.3-mm standard TRS stereo jack (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Input impedance | 10 kΩ |
| Rated input level | +4 dBu (1.228 Vrms) |
| Maximum input level | +20 dBu (7.75 Vrms) |
| Gain range | 56 dB |
| Analogue outputs | |
|---|---|
| Line outputs (balanced) | 6.3-mm standard TRS stereo jacks (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Output impedance | 210 Ω |
| Rated output level | +4 dBu (1.228 Vrms) |
| Maximum output level | +20 dBu (7.746 Vrms) |
| Headphone output (PHONES) | 6.3-mm standard stereo jack |
| Maximum output power | 45 mW + 45 mW or higher (THD+N 0.1% or less, into 32 Ω load) |
| Output impedance | 51.5 Ω |
| Load impedance | 16–600 Ω |
| Control inputs/outputs | |
|---|---|
| MIDI IN connector | 5-pin DIN |
| Format | MIDI standard |
| MIDI OUT connector | 5-pin DIN |
| Format | MIDI standard |
| USB | 4-pin USB, Type C |
| Transfer rate | USB 2.0 High Speed (480 MBit/s) |
| Audio performance | |
|---|---|
| Mic amp EIN (equivalent input noise) | ≤−128 dBu (150 Ω termination, GAIN knob at maximum) |
| Frequency response, MIC/LINE input | |
| 44.1 kHz / 48 kHz | 20 Hz – 20 kHz, +0 dB/−0.4 dB (JEITA) |
| 88.2 kHz / 96 kHz | 20 Hz – 40 kHz, +0 dB/−0.4 dB (JEITA) |
| Frequency response, LINE output | |
| 44.1 kHz / 48 kHz | 20 Hz – 20 kHz, +0.2 dB/−0.1 dB (JEITA) |
| 88.2 kHz / 96 kHz | 20 Hz – 40 kHz, +0.2 dB/−0.4 dB (JEITA) |
| S/N ratio | 110 dB (MIC input, GAIN knob at minimum, 20-kHz SPCL LPF, A-weighted) 108 dB (LINE input, GAIN knob at minimum, 20-kHz SPCL LPF, A-weighted) 110 dB (LINE output, LINE OUT knob at maximum, 20-kHz SPCL LPF, A-weighted) |
| Distortion (THD+N) | 0.0013 % (MIC IN, 1 kHz sine wave, −5 dBFS input, GAIN knob at minimum, 20 kHz SPCL LPF) 0.0011 % (LINE IN, 1 kHz sine wave, −5 dBFS input, GAIN knob at minimum, 20 kHz SPCL LPF) 0.0012 % (LINE OUT, 1 kHz sine wave, −4 dBFS input, LINE OUT knob at maximum, 20 kHz SPCL LPF) |
| Crosstalk attenuation | ≥95 dB (MIC/LINE input to LINE output, 1 kHz sine wave, GAIN knob at minimum) |
| Power supply and other specifications | |
|---|---|
| Power supply | |
| When used with a computer | USB bus power or dedicated AC adapter below |
| When used with an iOS device | Dedicated AC adapter (Tascam PS-P1220E, DC 12 V) |
| Power consumption | 2.25 W |
| External dimensions (W × H × D, including protrusions) | 296 mm × 65 mm × 160 mm |
| Weight | 1.6 kg |
| Operating temperature range | 5–35 °C |
- Description
-
Tascam US-4x4HR High-Resolution USB Audio/MIDI Interface
The four-channel US-4x4HR is a member of the Tascam US-HR series of high-resolution USB audio interfaces and an enhanced version of the popular Tascam US-4×4. It provides four mic/line inputs, two of which can alternatively be used for direct input of a guitar or bass, four balanced line outputs, two headphones connectors, and MIDI I/O to your Windows or Mac computer or your iPhone or iPad*. This interface is ideal for multitrack recording of two instruments and two vocalists, for instance, or multi-media production with high demands on simple operation and studio-quality sound. The included loopback function and support for Open Broadcaster Software (OBS Studio), however, makes it also an excellent choice for two-channel podcast creation and live streaming.
Lower noise and distortion – better sound than ever
The versatile US-4x4HR incorporates a wealth of features, including high audio resolution up to 24-bit/192 kHz, ultra-low latency with a Windows buffer size starting at four samples, Ultra-HDDA mic preamplifiers with 48-volt phantom power for superior sound quality with ultra-low noise, a robust USB Type C connector, and a rich assortment of included software to start producing stunning audio right away.
Features:
- Advanced version of our popular US-4×4 with even better sound quality
- Provides four audio inputs and four audio outputs as well as a MIDI interface to a Windows or Mac computer or iOS device
- Audio resolution up to 192 kHz / 24 bit
- USB Audio Compliance 2.0 for iOS connection
- Specifications
-
Audio resolution Sampling frequencies 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Quantization bit depth 24-bit Analogue inputs Mic inputs (balanced) XLR-3-31 equivalent
(1: GND, 2: HOT, 3: COLD)Input impedance 2.2 kΩ Rated input level –7 dBu (0.346 Vrms) Maximum input level +9 dBu (2.183 Vrms) Gain range 56 dB Instrument inputs (unbalanced, MIC/LINE INST switch set to INST) 6.3-mm standard TS stereo jacks
(Tip: HOT, Sleeve: GND)Input impedance ≥1 MΩ Rated input level –6 dBV (0.501 Vrms) Maximum input level +10 dBV (3.162 Vrms) Gain range 56 dB Line inputs (balanced, MIC/LINE INST switch set to MIC/LINE) 6.3-mm standard TRS stereo jack
(Tip: HOT, Ring: COLD, Sleeve: GND)Input impedance 10 kΩ Rated input level +4 dBu (1.228 Vrms) Maximum input level +20 dBu (7.75 Vrms) Gain range 56 dB Analogue outputs Line outputs (balanced) 6.3-mm standard TRS stereo jacks (Tip: HOT, Ring: COLD, Sleeve: GND) Output impedance 210 Ω Rated output level +4 dBu (1.228 Vrms) Maximum output level +20 dBu (7.746 Vrms) Headphone output (PHONES) 6.3-mm standard stereo jack Maximum output power 45 mW + 45 mW or higher (THD+N 0.1% or less, into 32 Ω load) Output impedance 51.5 Ω Load impedance 16–600 Ω Control inputs/outputs MIDI IN connector 5-pin DIN Format MIDI standard MIDI OUT connector 5-pin DIN Format MIDI standard USB 4-pin USB, Type C Transfer rate USB 2.0 High Speed (480 MBit/s) Audio performance Mic amp EIN (equivalent input noise) ≤−128 dBu (150 Ω termination, GAIN knob at maximum) Frequency response, MIC/LINE input 44.1 kHz / 48 kHz 20 Hz – 20 kHz, +0 dB/−0.4 dB (JEITA) 88.2 kHz / 96 kHz 20 Hz – 40 kHz, +0 dB/−0.4 dB (JEITA) Frequency response, LINE output 44.1 kHz / 48 kHz 20 Hz – 20 kHz, +0.2 dB/−0.1 dB (JEITA) 88.2 kHz / 96 kHz 20 Hz – 40 kHz, +0.2 dB/−0.4 dB (JEITA) S/N ratio 110 dB (MIC input, GAIN knob at minimum, 20-kHz SPCL LPF, A-weighted)
108 dB (LINE input, GAIN knob at minimum, 20-kHz SPCL LPF, A-weighted)
110 dB (LINE output, LINE OUT knob at maximum, 20-kHz SPCL LPF, A-weighted)Distortion (THD+N) 0.0013 % (MIC IN, 1 kHz sine wave, −5 dBFS input, GAIN knob at minimum, 20 kHz SPCL LPF)
0.0011 % (LINE IN, 1 kHz sine wave, −5 dBFS input, GAIN knob at minimum, 20 kHz SPCL LPF)
0.0012 % (LINE OUT, 1 kHz sine wave, −4 dBFS input, LINE OUT knob at maximum, 20 kHz SPCL LPF)Crosstalk attenuation ≥95 dB (MIC/LINE input to LINE output, 1 kHz sine wave, GAIN knob at minimum) Power supply and other specifications Power supply When used with a computer USB bus power or dedicated AC adapter below When used with an iOS device Dedicated AC adapter (Tascam PS-P1220E, DC 12 V) Power consumption 2.25 W External dimensions (W × H × D, including protrusions) 296 mm × 65 mm × 160 mm Weight 1.6 kg Operating temperature range 5–35 °C - Video
-
