Description

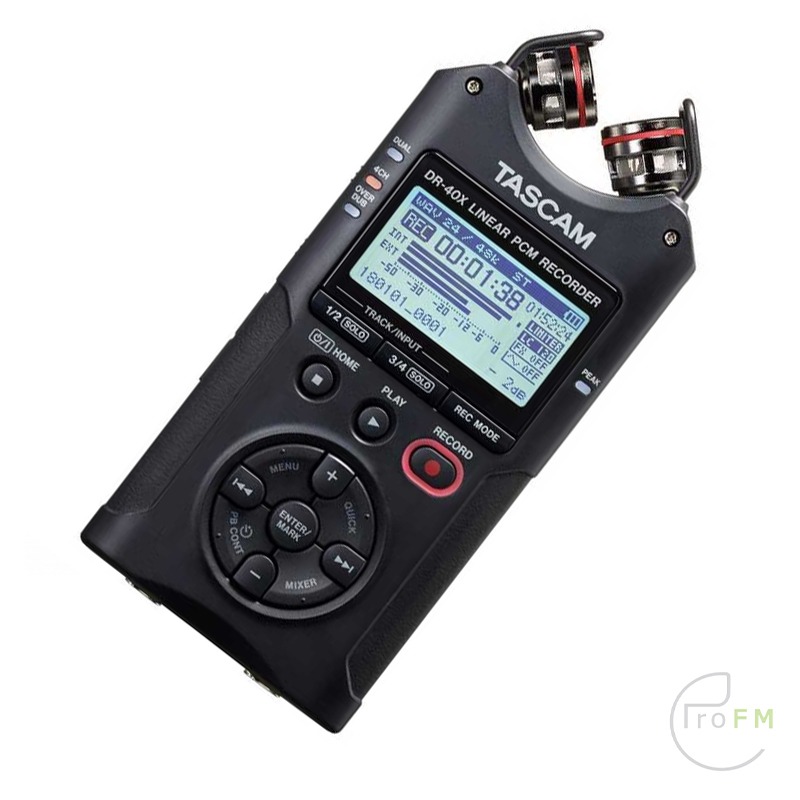

Tascam DR-40X Stereo Handheld Recorder / USB interface.
4-Channel 96kHz/24-bit Digital Recorder with XLR Inputs and Adjustable Mics. The adjustable mics, four-track recording and extended battery life of the TASCAM DR-40 give you the flexibility you need to record tracks anywhere.

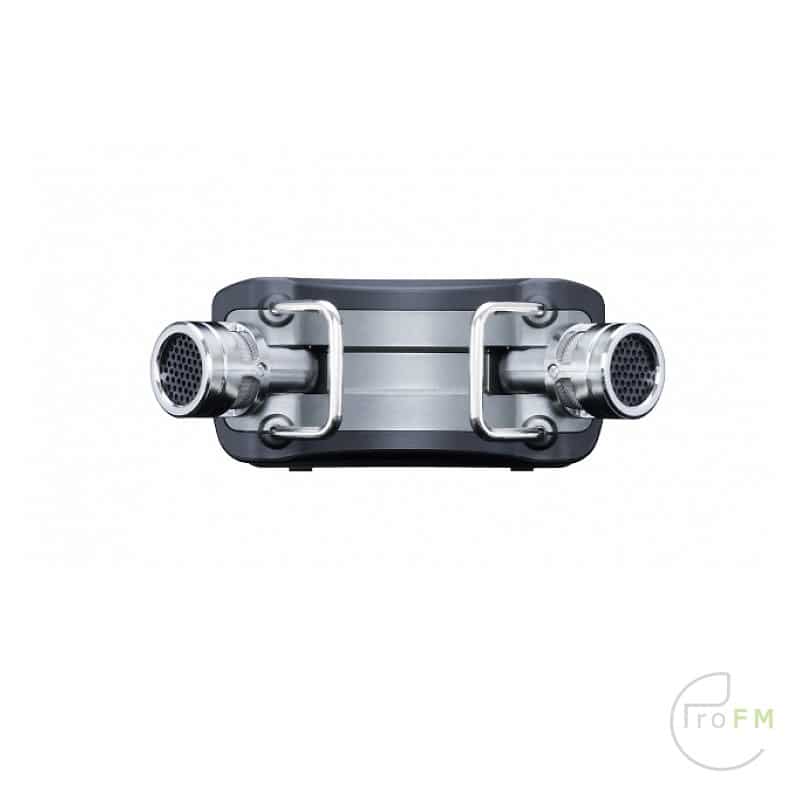

The DR-40 captures up to four tracks from built-in, high-quality condenser microphones, XLR mic or line inputs. The internal mics are adjustable from XY to AB position, helping you to tailor your recording to the sound of the room. A pair of great-sounding TASCAM microphone preamps welcome condenser microphones with phantom power, recording at up to 96kHz/24-bit resolution. It accommodates balanced XLR or 1/4″ line inputs using locking Neutrik Combo jacks. The DR-40 accepts SD or SDHC cards up to 32GB, and a 2GB card is included.
Once recorded, play back your takes with EQ and the optional Level Align feature to avoid volume jumps. A stereo reverb effect is also built-in, as well as a speaker and chromatic tuner. Transfer recordings to computer using the USB 2.0 jack. Other features include overdub mode, variable speed playback, limiting and low cut filter, and much more – all with TASCAM’s simple-to-use interface. No other recorder makes home or live recording as simple as the TASCAM DR-40.
“DR-05”, “DR-07MK2” and our brand new “DR-40” Linear PCM Recorders are part of TASCAM’s handheld recorders. Select a model based on your functional needs.
| Recording media | SD card (64MB to 2GB), SDHC card (4GB to 32GB) |
| File system | FAT16/32 |
| File format | WAV,BWF,MP3 |
| WAV / BWF | 44.1/48/96kHz, 16/24bit |
| MP3 | |
| Sampling frequency | 44.1kHz/48kHz |
| Bit-rate for recording | 32k/64k/96k/128k/192k/256k/320kbps |
| Playback bit rate | 32 – 320kbps, VBR, ID3 tag Ver. 2.4 |
| Number of channels | 4-channel (2 Stereo) |
| Playback speed control (VSA) | 0.5 – 1.5 times (in 0.1 increments) * 44.1/48kHz only |
| Built-in microphone | Unidirectional, stereo (Possible to switch between A-B/X-Y positions) |
| EXT MIC/LINE IN | |

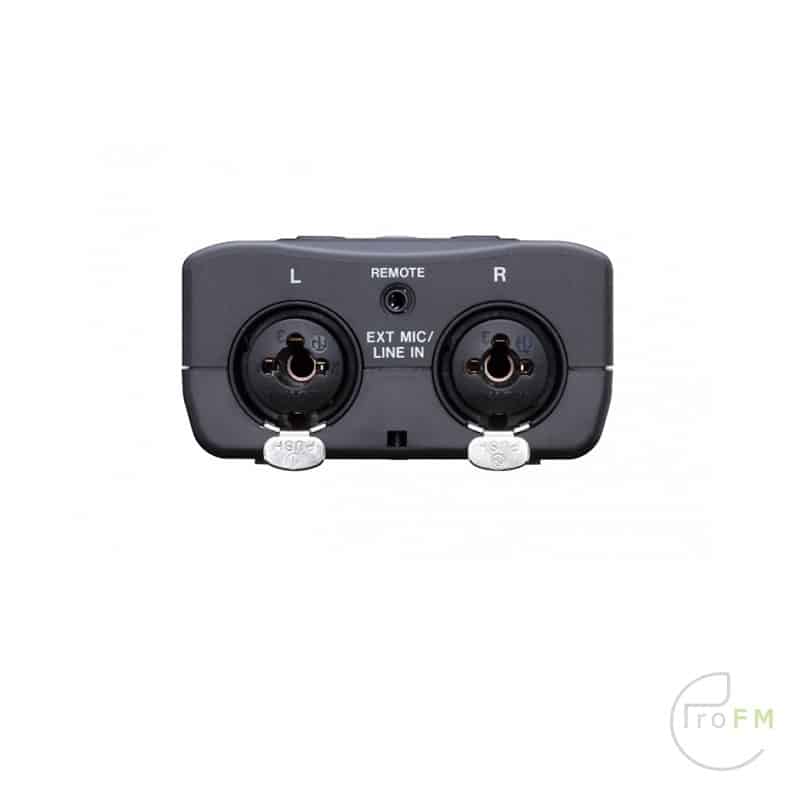

| Connector | XLR/TRS combo jack (1: GND, 2: HOT, 3: COLD) |
| Input impedance | 2.2k ohms(MIC) / 10k ohms(LINE) |
| Nominal input level | -19dBV(MIC) / 4dBu (LINE) |
| Maximum input level | -3dBV (MIC) / 20dBu (LINE) |
| PHONES/LINE OUT | |
| Connector | 1/8″(3.5mm)stereo mini jack, Unbalanced |
| LINE OUT | |
| Output impedance | 12ohms |
| Standard output level | -14dBV(10k ohms load) |
| Maximum output level | 2dBV(10k ohms load) |
| PHONES | |
| Maximum output level | 20mW 20mW(32ohms load) |
| Built-in speakers | 0.3W, Mono |
| Low-cut filter | 40Hz/80Hz/120Hz |
| USB | |
| Connector | Mini-B type |
| Format | USB2.0 HIGH SPEED |
| REMOTE | 2.5mm TRS jack |
| Effector | 6 presets (HALL1/2, ROOM, STUDIO, PLATE1/2) |
| Chromatic tuner | C1 – B6, A4 = 435Hz – 445Hz (in 1Hz increments) |
| Tripod attachment screw-hole | 1/4 inch, Tripod attachment screw-hole |
| Power | 2 AA batteries, USB bus power, AC100 – 240V (Optional AC adapter) |
| Power consumption | 2.5W (Max) |
| Battery operation time (Recording) |
|
| With alkaline batteries (EVOLTA) |
Approx. 20.5 hours (2ch WAV, 44.1kHz, 16bit, using built-in microphone) |
| With Ni-MH batteries (eneloop) |
Approx. 17 hours (2ch WAV, 44.1kHz, 16bit, using built-in microphone) |
| Dimensions | 70(W)x 155(H)x 35(D)mm |
| Weight | 213g (Without battery) |
| Accessories | 2GB microSD card, USB connection cable, 2 AA batteries for confirming operation, Owner’s Manual, Warranty card |
| Audio Performance | |
| Frequency response | 20Hz-20kHz 1dB/-3dB(Fs 44.1kHz,EXT IN to LINE OUT,JEITA) 20Hz-22kHz 1dB/-3dB(Fs 48kHz,EXT IN to LINE OUT,JEITA) 20Hz-40kHz 1dB/-3dB(Fs 96kHz,EXT IN to LINE OUT,JEITA) |
| Distortion | 0.05% or less(Fs 44.1/48/96kHz,EXT IN to LINE OUT,JEITA) |
| S/N ratio | 92dB or more(Fs 44.1/48/96kHz,EXT IN to LINE OUT,JEITA) |
| Computer Requirements | |
| Windows | |
| OS | Windows XP,Windows Vista,Windows 7,Windows 8 |
| CPU | Pentium 300MHz or more |
| Memory | 128MB or more |
| USB | USB2.0 recommended |
| Macintosh | |
| OS | Mac OS X Jaguar (V10.2),Mac OS X Panther (V10.3),Mac OS X Tiger (V10.4), Mac OS X Leopard (V10.5),Mac OS X Snow Leopard(V10.6.8),OS X Lion(V10.7), OS X Mountain Lion(V10.8) |
| CPU | Power PC,iMac,G3,G4 ,G5 266MHz or more |
| Memory | 64MB or more |
| USB | USB2.0 recommended |
- Description
-
Tascam DR-40X Stereo Handheld Recorder / USB interface.
4-Channel 96kHz/24-bit Digital Recorder with XLR Inputs and Adjustable Mics. The adjustable mics, four-track recording and extended battery life of the TASCAM DR-40 give you the flexibility you need to record tracks anywhere.
The DR-40 captures up to four tracks from built-in, high-quality condenser microphones, XLR mic or line inputs. The internal mics are adjustable from XY to AB position, helping you to tailor your recording to the sound of the room. A pair of great-sounding TASCAM microphone preamps welcome condenser microphones with phantom power, recording at up to 96kHz/24-bit resolution. It accommodates balanced XLR or 1/4″ line inputs using locking Neutrik Combo jacks. The DR-40 accepts SD or SDHC cards up to 32GB, and a 2GB card is included.
Once recorded, play back your takes with EQ and the optional Level Align feature to avoid volume jumps. A stereo reverb effect is also built-in, as well as a speaker and chromatic tuner. Transfer recordings to computer using the USB 2.0 jack. Other features include overdub mode, variable speed playback, limiting and low cut filter, and much more – all with TASCAM’s simple-to-use interface. No other recorder makes home or live recording as simple as the TASCAM DR-40.
“DR-05”, “DR-07MK2” and our brand new “DR-40” Linear PCM Recorders are part of TASCAM’s handheld recorders. Select a model based on your functional needs.
- Specifications
-
Recording media SD card (64MB to 2GB), SDHC card (4GB to 32GB) File system FAT16/32 File format WAV,BWF,MP3 WAV / BWF 44.1/48/96kHz, 16/24bit MP3 Sampling frequency 44.1kHz/48kHz Bit-rate for recording 32k/64k/96k/128k/192k/256k/320kbps Playback bit rate 32 – 320kbps, VBR, ID3 tag Ver. 2.4 Number of channels 4-channel (2 Stereo) Playback speed control (VSA) 0.5 – 1.5 times (in 0.1 increments) * 44.1/48kHz only Built-in microphone Unidirectional, stereo (Possible to switch between A-B/X-Y positions) EXT MIC/LINE IN Connector XLR/TRS combo jack (1: GND, 2: HOT, 3: COLD) Input impedance 2.2k ohms(MIC) / 10k ohms(LINE) Nominal input level -19dBV(MIC) / 4dBu (LINE) Maximum input level -3dBV (MIC) / 20dBu (LINE) PHONES/LINE OUT Connector 1/8″(3.5mm)stereo mini jack, Unbalanced LINE OUT Output impedance 12ohms Standard output level -14dBV(10k ohms load) Maximum output level 2dBV(10k ohms load) PHONES Maximum output level 20mW 20mW(32ohms load) Built-in speakers 0.3W, Mono Low-cut filter 40Hz/80Hz/120Hz USB Connector Mini-B type Format USB2.0 HIGH SPEED REMOTE 2.5mm TRS jack Effector 6 presets (HALL1/2, ROOM, STUDIO, PLATE1/2) Chromatic tuner C1 – B6, A4 = 435Hz – 445Hz (in 1Hz increments) Tripod attachment screw-hole 1/4 inch, Tripod attachment screw-hole Power 2 AA batteries, USB bus power, AC100 – 240V (Optional AC adapter) Power consumption 2.5W (Max) Battery operation time
(Recording)With alkaline batteries
(EVOLTA)Approx. 20.5 hours (2ch WAV, 44.1kHz, 16bit, using built-in microphone) With Ni-MH batteries
(eneloop)Approx. 17 hours (2ch WAV, 44.1kHz, 16bit, using built-in microphone) Dimensions 70(W)x 155(H)x 35(D)mm Weight 213g (Without battery) Accessories 2GB microSD card, USB connection cable, 2 AA batteries for confirming operation, Owner’s Manual, Warranty card Audio Performance Frequency response 20Hz-20kHz 1dB/-3dB(Fs 44.1kHz,EXT IN to LINE OUT,JEITA)
20Hz-22kHz 1dB/-3dB(Fs 48kHz,EXT IN to LINE OUT,JEITA)
20Hz-40kHz 1dB/-3dB(Fs 96kHz,EXT IN to LINE OUT,JEITA)Distortion 0.05% or less(Fs 44.1/48/96kHz,EXT IN to LINE OUT,JEITA) S/N ratio 92dB or more(Fs 44.1/48/96kHz,EXT IN to LINE OUT,JEITA) Computer Requirements Windows OS Windows XP,Windows Vista,Windows 7,Windows 8 CPU Pentium 300MHz or more Memory 128MB or more USB USB2.0 recommended Macintosh OS Mac OS X Jaguar (V10.2),Mac OS X Panther (V10.3),Mac OS X Tiger (V10.4),
Mac OS X Leopard (V10.5),Mac OS X Snow Leopard(V10.6.8),OS X Lion(V10.7),
OS X Mountain Lion(V10.8)CPU Power PC,iMac,G3,G4 ,G5 266MHz or more Memory 64MB or more USB USB2.0 recommended
