Description

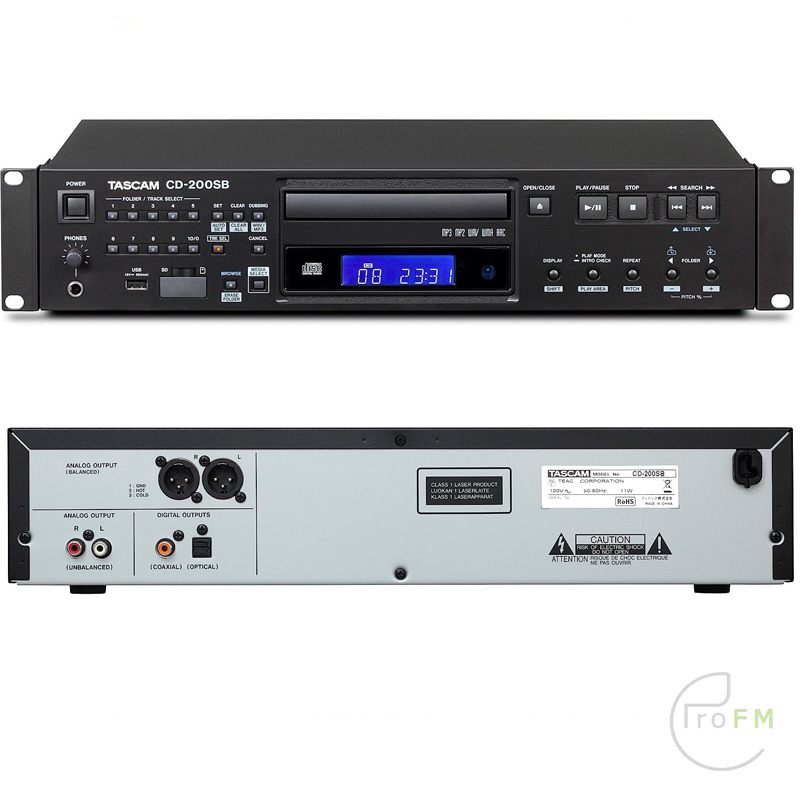

Tascam CD-200SB Solid-State/CD Player
The Tascam CD-200SB is a rugged, universal playback device for audio material available on solid-state media such as SD/SDHC memory cards and USB sticks or on CDs (CD-DA, CD-R, CD-RW). It supports file formats such as WAV, MP3, MP2, WMA and AAC and provides ten keys for direct access to freely selectable folders of a solid-state medium. This makes it the ideal replacement for any aged CD changer. The unit can also extract tracks from audio CDs to SD/SDHC/USB media in either WAV or MP3 format for archiving purposes or to make them more readily available.
The CD-200SB offers functions like Single, Shuffle, Program and Repeat playback, Intro Check and Pitch Control (±14 %). CD-Text and ID3/WMA/AAC tags are also supported to allow artist and track names to be displayed on the unit. And there is an anti-shock memory (10 seconds) available to protect against dropouts. On the output stage, balanced and unbalanced analogue outputs, a headphone output with level control and coaxial and optical digital outputs ensure integration into nearly any conceivable environment. A wireless remote control is also included.
Features:
- Versatile, highly reliable and easy-to-use solid-state and CD player
- WAV, MP3, MP2, WMA, AAC file playback from SD/SDHC cards or USB memory
- WAV, MP3, MP2 file playback from CD-R and CD-RW
- Audio CD playback
- Front-panel keys for direct access to 10 user-defined folders on SD/SDHC cards and USB memory
- Dubbing from CD to solid-state media (WAV or MP3 format)
- Ideal replacement for a disc changer
- Continuous, Single, Random and Program playback modes
- Repeat playback (Single, All, Folder)
- Intro Check feature
- CD Text and ID3/WMA/AAC tag support to display artist and track information if available
- Time display (CD-DA: Elapsed, Remain, Total Remain; Others: Elapsed)
- ±14 % pitch control with CDs
- Anti-shock memory (10 seconds)
- Headphones output with level control
- Balanced analogue output (XLR)
- Unbalanced analogue output (RCA)
- SPDIF digital outputs (coaxial and optical)
- Wireless remote control included
- 19-inch rack-mount chassis (2U)
Specifications
| General | |
|---|---|
| Supported media types | CD, CD-R and CD-RW discs (including 12cm, 8cm and multisession discs and discs with CD text) The following types of media must be formatted in FAT16 or FAT32 format: USB: (4–64 GB) SD: (2 GB) SDHC: (4–32GB) |
| Playback file formats | |
| CD-DA | 44.1kHz, 16-bit stereo |
| MP2 | 32/44.1/48 kHz, 32–320 kbps (data CDs/SD cards/USB flash drives) |
| MP3 | 32/44.1/48 kHz, 32–320 kbps, VBR (data CDs/SD cards/USB flash drives) |
| WAV | 8/16/32/11.025/22.05/44.1/12/24/48 kHz, 16-bit (data CDs/SD cards/USB flash drives) |
| AAC* | 32/44.1/48 kHz, 32–320 kbps, VBR (SD cards/USB flash drives) |
| WMA** | 32/44.1/48 kHz, 32–384 kbps, VBR (SD cards/USB flash drives) |
| *AAC DRM not supported **WMA files must be compliant with Ver. 9 Standard; DRM is not supported. | |
| Formats of dubbed files | WAV: 44.1 kHz, 16-bit stereo MP3: 44.1 kHz, 64/128/256 kbps |
| Analogue audio outputs | |
|---|---|
| ANALOG OUTPUT (BALANCED) | XLR-3-32 (1: GND, 2: HOT, 3: COLD) |
| Output impedance | 200 Ω |
| Reference output level | +4 dBu (1.23 Vrms) |
| Maximum output level | +20 dBu (7.75 Vrms) |
| ANALOG OUTPUT (UNBALANCED) | RCA pin jack |
| Output impedance | 200 Ω |
| Reference output level | –10 dBV (0.32 Vrms) |
| Maximum output level | +6 dBV (2.0 Vrms) |
| PHONES output | 6.3-mm stereo phone jack |
| Maximum output power | 20 mW + 20 mW (THD+N: 0.1%, 32 Ω) |
| Digital audio outputs | |
|---|---|
| DIGITAL OUTPUT (COAXIAL) | RCA pin jack |
| Compatible signal format | IEC-60958-3 (S/PDIF) |
| DIGITAL OUTPUT (OPTICAL) | Optical connector |
| Compatible signal format | IEC-60958-3 (S/PDIF) |
| Audio performance | |
|---|---|
| Frequency Response | 20 Hz – 20 kHz ±1.5 dB (playback, JEITA) |
| Signal-to-Noise Ratio (S/N) | >90 dB (playback, JEITA) |
| Total Harmonic Distortion | <0.01% (playback, JEITA) |
| Dynamic Range | >90 dB (playback, JEITA) |
| Channel Separation | >90 dB (playback, JEITA) |
| Power supply and other specifications | |
|---|---|
| Power Requirement | AC 120 V, 60 Hz (U.S.A./Canada) AC 230 V, 50 Hz (U.K./Europe) AC 240 V, 50 Hz (Australia) |
| Power Consumption | 11 W |
| Dimensions (W x H x D) | 481 mm x 95 mm x 298 mm |
| Weight | 4.7 kg |
| Operating temperature | 5–35 °C |
| Inclination of installation | 5° or less |
- Description
-
Tascam CD-200SB Solid-State/CD Player
The Tascam CD-200SB is a rugged, universal playback device for audio material available on solid-state media such as SD/SDHC memory cards and USB sticks or on CDs (CD-DA, CD-R, CD-RW). It supports file formats such as WAV, MP3, MP2, WMA and AAC and provides ten keys for direct access to freely selectable folders of a solid-state medium. This makes it the ideal replacement for any aged CD changer. The unit can also extract tracks from audio CDs to SD/SDHC/USB media in either WAV or MP3 format for archiving purposes or to make them more readily available.
The CD-200SB offers functions like Single, Shuffle, Program and Repeat playback, Intro Check and Pitch Control (±14 %). CD-Text and ID3/WMA/AAC tags are also supported to allow artist and track names to be displayed on the unit. And there is an anti-shock memory (10 seconds) available to protect against dropouts. On the output stage, balanced and unbalanced analogue outputs, a headphone output with level control and coaxial and optical digital outputs ensure integration into nearly any conceivable environment. A wireless remote control is also included.
Features:
- Versatile, highly reliable and easy-to-use solid-state and CD player
- WAV, MP3, MP2, WMA, AAC file playback from SD/SDHC cards or USB memory
- WAV, MP3, MP2 file playback from CD-R and CD-RW
- Audio CD playback
- Front-panel keys for direct access to 10 user-defined folders on SD/SDHC cards and USB memory
- Dubbing from CD to solid-state media (WAV or MP3 format)
- Ideal replacement for a disc changer
- Continuous, Single, Random and Program playback modes
- Repeat playback (Single, All, Folder)
- Intro Check feature
- CD Text and ID3/WMA/AAC tag support to display artist and track information if available
- Time display (CD-DA: Elapsed, Remain, Total Remain; Others: Elapsed)
- ±14 % pitch control with CDs
- Anti-shock memory (10 seconds)
- Headphones output with level control
- Balanced analogue output (XLR)
- Unbalanced analogue output (RCA)
- SPDIF digital outputs (coaxial and optical)
- Wireless remote control included
- 19-inch rack-mount chassis (2U)
- Specifications
-
Specifications
General Supported media types CD, CD-R and CD-RW discs (including 12cm, 8cm and multisession discs and discs with CD text)
The following types of media must be formatted in FAT16 or FAT32 format:
USB: (4–64 GB)
SD: (2 GB)
SDHC: (4–32GB)Playback file formats CD-DA 44.1kHz, 16-bit stereo MP2 32/44.1/48 kHz, 32–320 kbps (data CDs/SD cards/USB flash drives) MP3 32/44.1/48 kHz, 32–320 kbps, VBR (data CDs/SD cards/USB flash drives) WAV 8/16/32/11.025/22.05/44.1/12/24/48 kHz, 16-bit (data CDs/SD cards/USB flash drives) AAC* 32/44.1/48 kHz, 32–320 kbps, VBR (SD cards/USB flash drives) WMA** 32/44.1/48 kHz, 32–384 kbps, VBR (SD cards/USB flash drives) *AAC DRM not supported
**WMA files must be compliant with Ver. 9 Standard; DRM is not supported.Formats of dubbed files WAV: 44.1 kHz, 16-bit stereo
MP3: 44.1 kHz, 64/128/256 kbpsAnalogue audio outputs ANALOG OUTPUT (BALANCED) XLR-3-32 (1: GND, 2: HOT, 3: COLD) Output impedance 200 Ω Reference output level +4 dBu (1.23 Vrms) Maximum output level +20 dBu (7.75 Vrms) ANALOG OUTPUT (UNBALANCED) RCA pin jack Output impedance 200 Ω Reference output level –10 dBV (0.32 Vrms) Maximum output level +6 dBV (2.0 Vrms) PHONES output 6.3-mm stereo phone jack Maximum output power 20 mW + 20 mW (THD+N: 0.1%, 32 Ω) Digital audio outputs DIGITAL OUTPUT (COAXIAL) RCA pin jack Compatible signal format IEC-60958-3 (S/PDIF) DIGITAL OUTPUT (OPTICAL) Optical connector Compatible signal format IEC-60958-3 (S/PDIF) Audio performance Frequency Response 20 Hz – 20 kHz ±1.5 dB (playback, JEITA) Signal-to-Noise Ratio (S/N) >90 dB (playback, JEITA) Total Harmonic Distortion <0.01% (playback, JEITA) Dynamic Range >90 dB (playback, JEITA) Channel Separation >90 dB (playback, JEITA) Power supply and other specifications Power Requirement AC 120 V, 60 Hz (U.S.A./Canada)
AC 230 V, 50 Hz (U.K./Europe)
AC 240 V, 50 Hz (Australia)Power Consumption 11 W Dimensions (W x H x D) 481 mm x 95 mm x 298 mm Weight 4.7 kg Operating temperature 5–35 °C Inclination of installation 5° or less
