Description

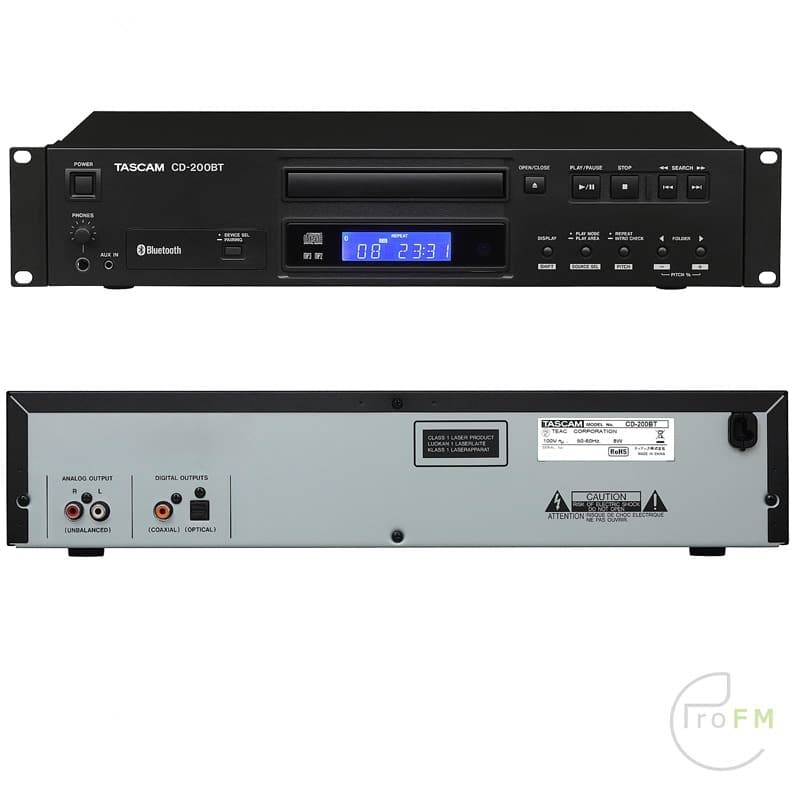

Tascam CD-200BT CD Player With Bluetooth Receiver
The CD-200BT is the next highly anticipated model in the top selling “CD-200” series. It is designed to meet the increasing demand for playback from various audio formats and devices compatible with Bluetooth® technology.
Users can pair up to 8 Bluetooth devices at a time in order for quick switching and playback. Also supported is the use of the aptX® codec to ensure a much higher quality and more reliable audio signal transmitted via Bluetooth. The unit is equipped with controls for fast track/file selection, multiple playback modes, ±14% pitch control and also includes a wireless remote control. Like all models in the signature “CD-200” series, the CD-200BT features Tascam’s esteemed CD-5020A transport to provide quiet playback, smooth loading and longevity while being outfitted with shockproof memory. To ensure easy set-up in any system, there are stereo line RCA, coaxial and optical audio outputs, as well as a headphones output with level control for monitoring.
The CD-200BT is the perfect 2U rack-mountable addition to any commercial or public space audio install. With its wide array of options and playback features the CD-200BT can meet nearly any demands one might encounter for reliable, high-quality audio playback.
Features:
- Easy-to-use, affordable CD player with Bluetooth receiver
- Various playback options:
- Audio CD playback
- MP3 and WAV file playback from CD
- Internet radio or network file playback via a Bluetooth connection with a smartphone or computer
- Playback from other audio sources via AUX IN connector
- Bluetooth apt-X codec provides high quality audio transmission with low latency (AAC and SBS are also supported)
- Up to eight different Bluetooth devices are memorized and can easily be selected with a dedicated button
- High-quality TEAC audio CD drive (supports CD-R and CD-RW)
- Folder selection for MP3 and WAV CDs
- Continuous, Random and Program playback modes
- Repeat playback (Single, All, Folder)
- Intro Check feature
- CD text and ID3 tag support to display artist and track information if available
- Time display (CD-DA: Elapsed, Remain, Total Remain; MP3: Elapsed)
- ±12.5 % pitch control
- Anti-shock memory
- Headphones output with level control
- Analogue output (RCA)
- SPDIF digital outputs (coaxial and optical)
- Wireless remote control included
- 19-inch rack-mount chassis (2U)
Specifications
| General | |
|---|---|
| Supported disc types | CD, CD-R and CD-RW discs (including 12cm, 8cm and multisession discs and discs with CD text) |
| Playback file formats | |
| CD-DA | 44.1kHz, 16-bit stereo |
| MP2 | 32/44.1/48kHz, 32–384kbps (data CDs) |
| MP3 | 32/44.1/48kHz, 32–320kbps, VBR (data CDs) |
| WAV | 8/16/32/11.025/22.05/44.1/12/24/48kHz, 16-bit (data CDs) |
| Analogue audio inputs and outputs | |
|---|---|
| Analogue audio input | AUX IN jack, 3.5-mm stereo mini jack |
| Nominal input level | –20 dBV |
| Maximum input level | –4 dBV |
| Input impedance | 22 kΩ |
| Analogue output (unbalanced) | RCA pin jack |
| Output impedance | 200 Ω |
| Nominal output level | –10 dBV (0.32 Vrms) |
| Maximum output level | +6 dBV (2.0 Vrms) |
| Phones output | 6.3-mm stereo phone jack |
| Maximum output power | 20 mW + 20 mW (THD+N: 0.1%, 32 Ω) |
| Digital audio outputs | |
|---|---|
| Digital output (coaxial) | RCA Pin Jack |
| Compatible signal format | IEC-60958-3 (SPDIF) |
| Digital output (optical) | TOS (JEITA RC-5720C) |
| Compatible signal format | IEC-60958-3 (SPDIF) |
| Audio performance | |
|---|---|
| Frequency Response | 20 Hz – 20 kHz ±1.0 dB (during playback, JEITA) |
| Signal-to-Noise Ratio (S/N) | >90 dB (during playback, JEITA) |
| Total Harmonic Distortion | <0.01% (during playback, JEITA) |
| Dynamic Range | >90 dB (during playback, JEITA) |
| Channel Separation | >90 dB (during playback, JEITA) |
| Bluetooth | Version 3.0, Class 2 (approximate transmission distance: 10m*) |
| Supported profiles | A2DP, AVRCP |
| Supported A2DP codecs | SBC, AAC, aptX |
| Supported A2DP content protection: | SCMS-T |
| *The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic waves. |
| Power supply and other specifications | |
|---|---|
| Power requirements | AC 120 V, 60 Hz (U.S.A./Canada) AC 230 V, 50 Hz (U.K./Europe) AC 240 V, 50 Hz (Australia) |
| Power Consumption | 8 W (U.S.A./Canada/U.K./Europe) 9 W (Australia) |
| Dimensions (W x H x D) | 481 mm x 95 mm x 298 mm |
| Weight | 4.5 kg |
| Operating Temperature | 5–35 °C |
| Inclination of installation | 5° or less |
