Description

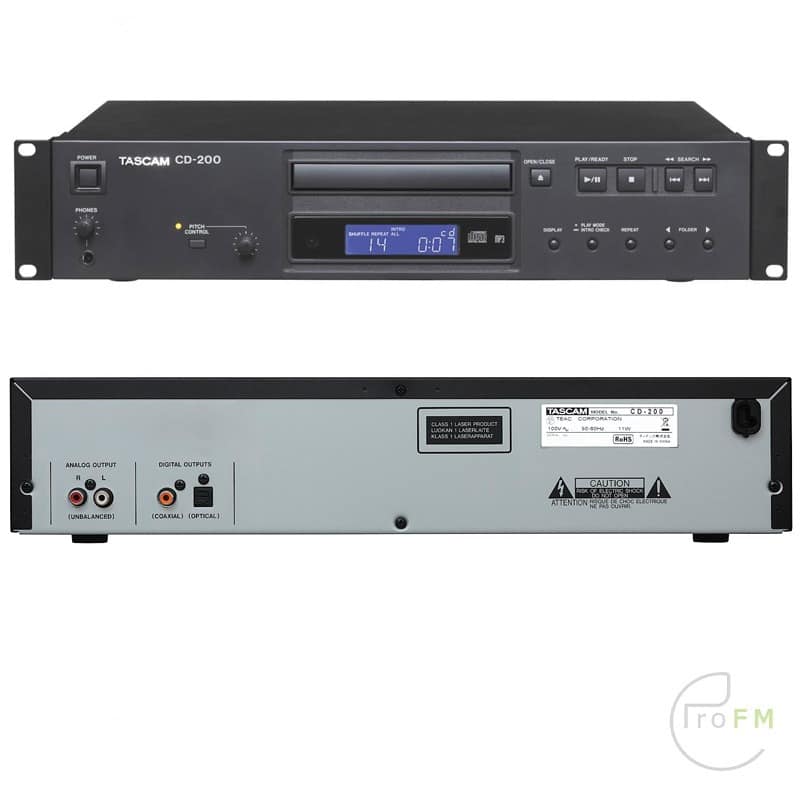

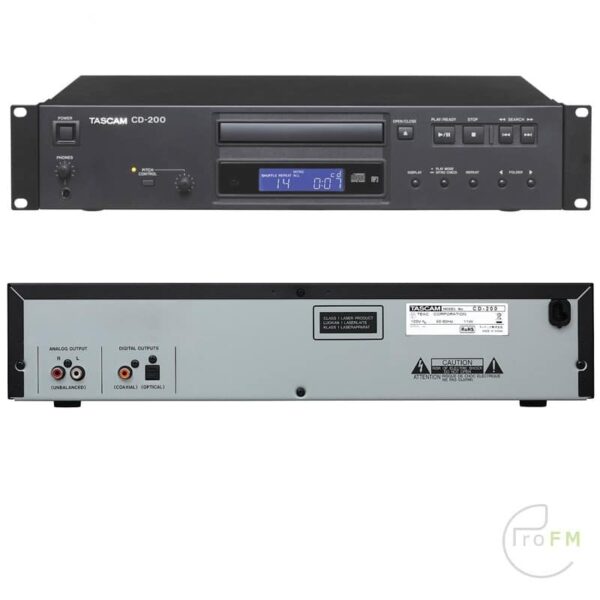

Tascam CD-200 CD Player
Meet the Tascam CD-200: your reliable companion for any installation or PA rental. Why pay more for features you don’t need? With the CD-200 you get exactly what you need, without the fuss.
This CD player is designed with simplicity and cost-effectiveness in mind, but still offers a range of useful features that make playing your favorite music smooth and hassle-free. With features like pitch control with a simple on/off button, a handy headphone output with level control, intro check and anti-shock memory, you can be confident you’ll deliver a flawless performance every time.
And that’s not all. The CD-200 also supports MP3 and WAV files from data CDs, allowing you to play a wider range of music formats. With the ability to display ID3 tags and CD text, you’ll always stay organized and informed about your music.
The included wireless remote literally puts control in your palms, giving you easy access to all functions, even from a distance. And with the handy 10-key pad you can select songs directly, without any hassle.
In short, with the Tascam CD-200 you get the perfect combination of simplicity, reliability and functionality, all packed into a sleek and durable design. Ready to take on any audio challenge, wherever you are.
Tascam CD-200: Simple, convenient and reliable!
Features:
- Easy-to-use, affordable CD player
- High-quality TEAC drive (supports CD-R and CD-RW)
- Audio CD playback
- MP3 and WAV file playback from CD
- Folder selection for MP3 and WAV CDs
- Continuous, Random and Program playback modes
- Repeat playback (Single, All, Folder)
- Intro Check feature
- CD text and ID3 tag support to display artist and track information if available
- Time display (CD-DA: Elapsed, Remain, Total Remain; MP3: Elapsed)
- ±12.5 % pitch control
- Anti-shock memory (10 seconds)
- Headphones output with level control
- Analogue output (RCA)
- SPDIF digital outputs (coaxial and optical)
- Wireless remote control included
- 19-inch rack-mount chassis (2U)
Specifications
| General | |
|---|---|
| Compatible discs | CD-R/CD-RW (12-cm/8-cm) |
| Formats | CD-DA, CD-ROM (ISO 9660 Level 1, 2, 3 JOLIET Romeo UDF 1.5), MP3, WAV |
| MP3 playback specifications | |
| Audio Mode | Stereo/Joint Stereo/Dual Channel/Mono/VBR MPEG1 Audio Layer III (MP3) |
| Sampling frequency | 32 kHz/44.1 kHz/48 kHz |
| Bit rate | 32–320 Kbit/s |
| WAV playback specifications | |
| Sampling frequency | 8 kHz/11.025 kHz/12 kHz/16 kHz/22.05 kHz/24 kHz/32 kHz/44.1 kHz/48 kHz |
| Quantization bit rate | 8-bit/16-bit |
| CD-DA playback specifications | |
| Sampling frequency | 44.1 kHz |
| Quantization bit rate | 16-bit |
| Number of channels | 2 (Stereo) |
| Audio performance | |
|---|---|
| Frequency response | 20 Hz – 20 kHz ±1.5 dB |
| Signal-to-Noise Ratio (S/N) | > 90 dBA (20 kHz LPF) |
| Distortion (THD+N) | < 0.01% (1 kHz: 20 kHz LPF) |
| Dynamic range | 90 dB min. |
| Channel separation | 90 dB min. (1 kHz, 1 kHz BPF) |
| Audio outputs | |
|---|---|
| Analogue output unbalanced | RCA pin jacks |
| Nominal output level | –10 dBV |
| Maximum output level | +6 dBV |
| Output impedance | 200 Ω |
| Headphones output | Standard stereo jack |
| Nominal output power | 20 mW + 20 mW min. (When monitoring CD, THD+N: 0.1% max., 32 Ω load) |
| Coaxial digital output | RCA pin jack |
| Compatible signal format | IEC-60958-3 (SPDIF) |
| Output impedance | 75 Ω |
| Optical digital output | Fibreoptic connector |
| Compatible signal format | IEC-60958-3 (SPDIF) |
| Power supply and other specifications | |
|---|---|
| Power requirements | AC 120 V, 60 Hz (USA/Canada) AC 230 V, 50 Hz (UK/Europe) AC 240 V, 50 Hz (Australia) |
| Power consumption | 12 W |
| Operating temperature range | +5 °C to +35 °C |
| Inclination of installation | 5 degrees or less |
| Dimensions (W x H x D) | 481 mm x 95 mm x 298 mm |
| Weight | 4.2 kg |
