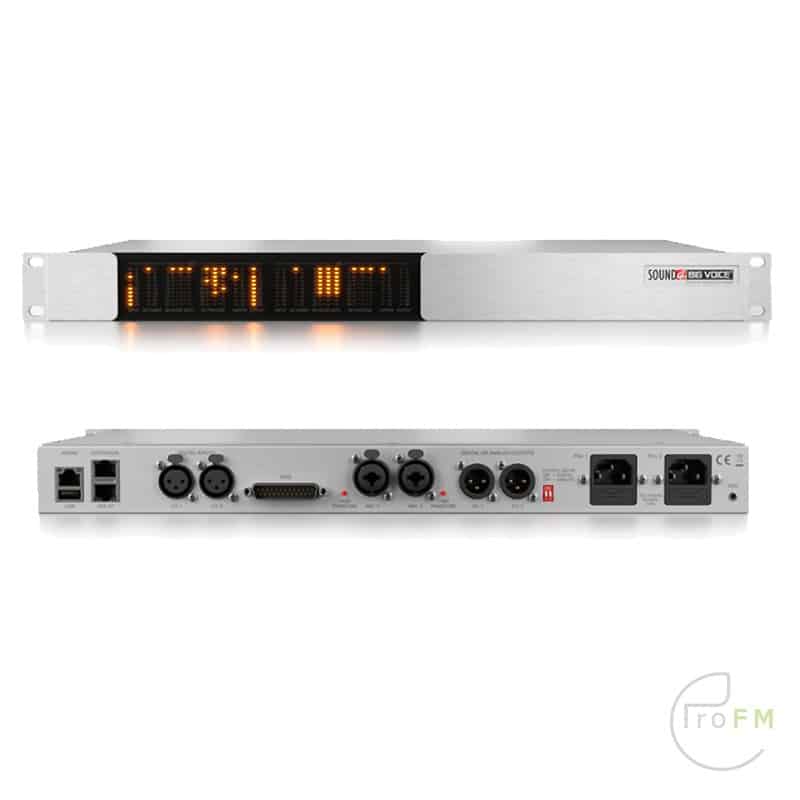

Sound 4 Big Basis 2 Channel Voice Processor.

SOUND4 BIG VOICE² is powered by the revolutionary HQ-Sound 192kHz Audio Processing Engine, a patented SOUND4 technology that has been used in other products for years. The processing structure includes an advanced DeEsser, 3-band noise gate, Pre-EQ 4-band parametric, 3-band dynamic processor, Post-EQ 4-band parametric, brick wall limiter… Yes, much more than a simple noise gate and compressor, and we don’t stop there; Big Voice² products offer further enhancements with our own plug-in extensions like Reverb and more. SOUND4 BIG VOICE² processors are flexible and perfectly adapt to all voices. From natural tone to grand, everything is possible in just a few clicks. The SOUND4 BIG VOICE² is the perfect tool for production studios for that smooth voice-over.

Dominate-it… Let the leading talent LEAD!

SOUND4 BIG VOICE² includes the revolutionary “Dominate-It” feature, ensuring the lead talent always leads. This unique feature, invented by SOUND4, prioritizes the main talent and automatically mutes guest microphones when the main talent speaks. SOUND4 BIG VOICE² can even share the “Dominate-It” feature with other BIG VOICE² processors to control other microphones if needed!

Dedicated to “Live Studios”…

SOUND4 Big Voice² is designed for live studio requirements. The special graphical user interface displays 2 microphones, status, affects, and usernames. Recalling a microphone to a user is done in two clicks… More and more… SOUND4 now introduces the “Session Recall”: it is possible to save all microphone influences + loaded user presets and then recall them all with one click! SOUND4 BIG VOICE² can also be externally automated for automatic recall of sessions…

Bus-Mix…

Auto-Mix all microphones to one output and save fader space on consoles! The Bus-Mix feature groups selected channel outputs to one physical output. This acts as an Auto-Mix feature and is always protected against bus overload. SOUND4 BIG VOICE² is limited to 1 Bus-Mix and cannot be shared with other devices.

Share PRESETS…

SOUND4 BIG VOICE² Preset Sharing feature, another SOUND4 invention, offers the ability to automatically share presets with other BIG VOICE² processors via the network. Presets changed in one studio are immediately updated in all other studios. This saves a significant amount of time and ensures your carefully tuned sound remains consistent regardless of which studio is in use.

An ultra-user-friendly control interface…

Two GUI types: STUDIO is intended for sound setup and LIVE is a highly simplified version for On-Air Studio. Set sound from a single screen! No more opening and closing windows to move from one function to another. In STUDIO GUI, modes at two levels: BASIC where everything is simple and fast, ADVANCED for exploring all processor functionalities. In LIVE GUI, presets can be edited if needed or not in a highly simplified GUI for quick On-Air adjustments. Ultra-fast VU meter for real control. Unlimited “Undo/Redo” version control feature for presets with the ability to recall. Innovative “compare” function with reference concept. Log function for presets. A remote connection manager to control multiple processors. Works on Windows 7, 8, 10, 11, Windows Server 2016, Linux (Debian). Preset settings SOUND4 BIG VOICE offers the ability to set a preset for each user, everyone knows that talents never get the same sound level. Usually, sound processors work with the same level adjustment for all users… Here in the preset setting, SOUND4 BIG VOICE users can adjust the basics for each talent: Phase inversion and phase rotator Low-pass and high-pass filters 3-band frequency adjustment

Dominate-It

The De-Esser… In SOUND4 BIG VOICE, the De-Esser automatically follows the sibilant frequencies, the user only needs to set the gain attenuation and the Q-factor that defines the correction width. A graph on the left side shows the De-Esser at work in real-time.

The 3-band Noise Gate…

In Broadcast Voice Processing, Noise Gate is a crucial functionality for overall voice optimization. Thanks to HQSound algorithms, the SOUND4 BIG VOICE Noise Gate is extremely reactive when opening and closing Gates. This is a real advantage compared to major solutions on the market that usually “eat” the first syllables… SOUND4 BIG VOICE Noise Gate offers an advanced detection mode: bands can be set as “Master”, “Slave”, or “Alone”. For example, it is possible to isolate low-frequency detection and then prevent a gate from opening when the user taps the table. In this case, the user sets the low frequency in slave mode… In advanced mode, users have access to Thresholds, Target (attenuation when the gate is closed), Hold Time (to keep the Gate open before the Release Time), and finally the Release Time.

Pre-EQ (4-band parametric EQ)…

The parametric EQ before the 3-band process is an excellent solution to “lock” bands in desired frequencies. The SOUND4 BIG VOICE is powered by a 4-band parametric Pre Equalizer. Advanced mode offers access to Frequency, Q-factor, and Gain correction for each band.

The 3-band processor…

The 3-band process is the heart of dynamic processing. The SOUND4 BIG VOICE algorithm guarantees gain in each of the bands to complete sound stabilization. “Coloring” is controlled by the Fidelity parameter: it is possible to have a puristic or colored sound texture. The 3-band process features the revolutionary S.I.S (Sound Impact System) algorithm, which allows preserving the authenticity of the original sound attacks. In advanced mode, users have access to “Smart Gate Threshold” (including gain action freeze), “Ratios” (efficiency ratio of dynamic processing), “Fidelity”, “SIS”, “Drives” (increasing or decreasing gain at band input), “Thresholds”, “Attack Time”, “Release Time”, and “Mix output Gain” (to dose the output level of each band).

Post-EQ (4-band parametric EQ)…

The parametric EQ provides the final “touch” in sound setup. The SOUND4 BIG VOICE is powered by a 4-band parametric equalizer. Advanced mode offers access to Frequency, Q-factor, and Gain correction for each band.

The Brick Wall Limiter…

The Brick Wall Limiter is an advanced algorithm that provides strong and robust gain limitation.

Analog/Mic Input
Quantity 2
Level Mic nom. -80dBu to -4dBu (max 16dBu)
Level Line nom. 4dBu (max 24dBu)
Equivalent Input Noise -126dB, 22Hz to 22kHz unweighted
Gain +12 to +67dB
Pad 0dB / -12dB / -24dB (software selectable)
Phase 0° / 180° (software selectable)
Input impedance 2 kΩ
Source impedance 150 Ω
Connectors 2x combo XLR/Jack female balanced, EMI suppressed
Phantom Power +48V (software selectable)
Digital Input
Quantity 2
Standard AES3
Sampling Rate 32 to 192kHz, 24 bits
Connectors 2x XLR female balanced, EMI suppressed
Analog Output
Quantity 2 (shared with Digital Out)
Level + 24 dBu max
Load Impedance 10 kΩ typ. (> 300 Ω)
Connectors 2x XLR male balanced, EMI suppressed (shared with Digital Out, manual switch)
Digital Output
Quantity 2 (shared with Analog Out)
Standard AES3
Sampling Rate 32 to 192kHz, 24 bits
Connectors 2x XLR male balanced, EMI suppressed (shared with Analog Out, manual switch)
Audio Over IP
Interface Ethernet 100Mbps
Live Protocol (AES67) Compatible AES67, Ravenna, Livewire;
48kHz, 24 bits, 12 samples/packet (250µs)
Audio Specifications
I/O Latency Processing Delay approx. 3 to 4ms
I/O Latency Analog 0,4ms (input) / 0,6ms (output)
I/O Latency AES @ 48kHz 1,2ms (input) / 1,4ms (output)
I/O Latency Livewire <2ms (input) / 0,5ms (output)
Distortion 0.05% THD+N
Power Supply
Type Dual Redundant
Voltage 100 – 260 Volt AC, 40W
Operating Conditions
Operational between 0 – 50°C
Size And Weight
Dimensions (WxHxD) 485 x 44 x 260mm
Shipping Weight 550 x 120 x 580 mm / 3.900 kg
HS Code 8517620000
Power Up Boot
Boot time 3s
Optional Interfaces
GPIO 8 inputs, 8 outputs (opto-isolated) with 5V supply (DB25 male)
SOUND4 REMOTE CONTROL Software Operating Systems
Linux Debian 32 & 64 bits
Microsoft Windows 32 & 64 bits: Windows 7, Windows 8, Windows 10, Windows 11, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
PC To Client Communication Interface
TCP/IP Client (Remote) / Server (Big Voice) architecture via Ethernet 1000Mbps
Link & Share All parameters are accessible via simple Telnet protocol
SNMP Supervision with Trap Feature
