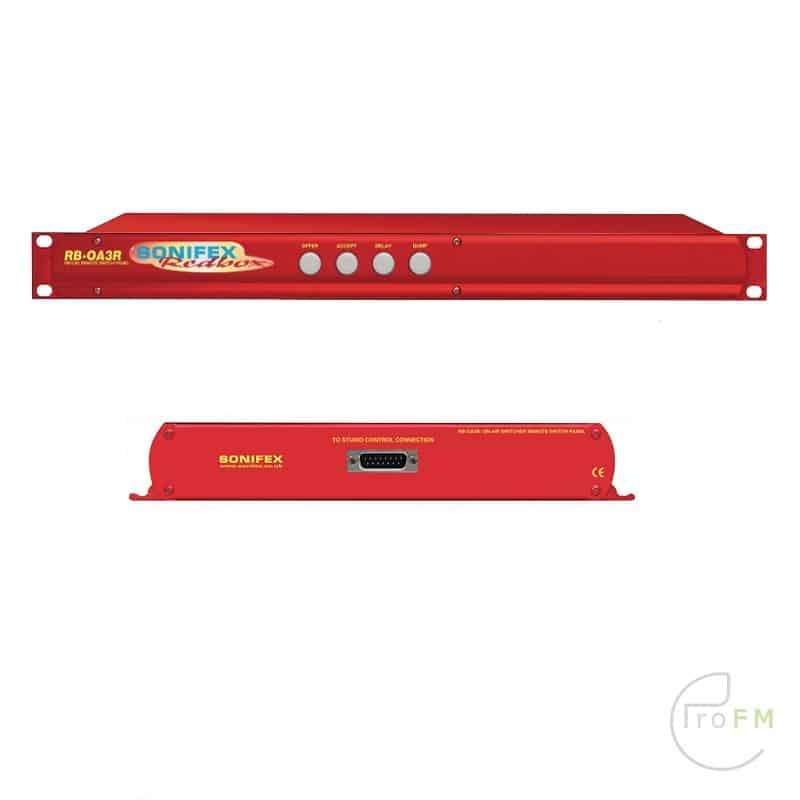

Sonifex REDBOX RB-OA3R Remote Switcher Panel for RB-OA3
The RB-OA3 has been designed for installation in a central technical area with cabling to custom panels, or selection switches, in each studio. If you don’t have any custom switch panels available, you can use an RB-OA3R in each studio.
The RB-OA3R is a 1U rack mount switch unit for use in each studio that needs to be connected to the STUDIO 1-3 CONTROL connectors on an RB-OA3. It takes it’s power from the RB-OA3 unit so needs no power supply itself. It contains four buttons which are used to control the functions of the RB-OA3. Each front panel push button is illuminated by coloured LEDs and controls the OFFER, ACCEPT, DELAY and DUMP functions.
RB-OA3C Expansion Unit Cable For RB-OA3
If you add another RB-OA3 to an existing unit to expand either the number of busses or studios, you need additional cables to connect it which are contained in this kit:
- 1 x Transmission output expansion cable, 25 pin D-type male to 25 pin D-type male, 30cm lead, wired pin to pin.
- 1 x LSO expansion cable, 9 pin D-type male to 9 pin D-type male, 30cm lead, wired pin to pin.
- 1 x RS232 expansion cable, RJ45 to RJ45 standard wiring, 30cm lead.
- 1 x kit should be used for each expansion RB-OA3 being used.
| Connections | |
| Studio Control: | 1 x 15 way D type plug (male) |
| Equipment Type | |
| RB-OA3R: | 1 Studio on-air switcher |
| Physical Specification | |
| Dimensions (Raw): | 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U) |
| Dimensions (Boxed): | 53cm (W) x 20.5cm (D) x 6cm (H) 21” (W) x 8” (D) x 2.4” (H) |
| Weight: | Nett: 1.2kg Gross: 1.8kg Nett: 2.6lbs Gross: 4lbs |
