Description
Sonifex PS -Send Audio IP Streaming Encoder Rackmount
The PS-SEND is a freestanding audio to IP converter which is also available in a 1U rack-mount as the PS-SENDS. It receives audio from a number of user selectable external stereo sources including balanced and unbalanced analogue audio, AES/EBU, S/PDIF & TOSlink digital audio. Once an audio source is selected, the unit encodes the audio in real time and sends it to the network as an encoded stream. The audio stream can be distributed over an IP-based network to one or more PS-PLAY or PS-AMP units or other proprietary servers such as those for Icecast or Shoutcast.

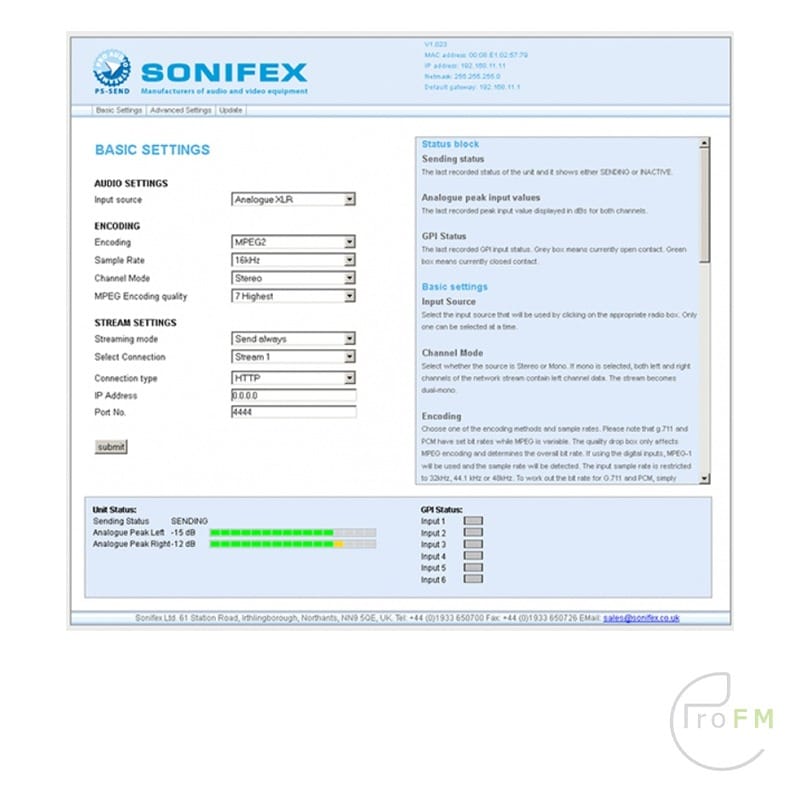

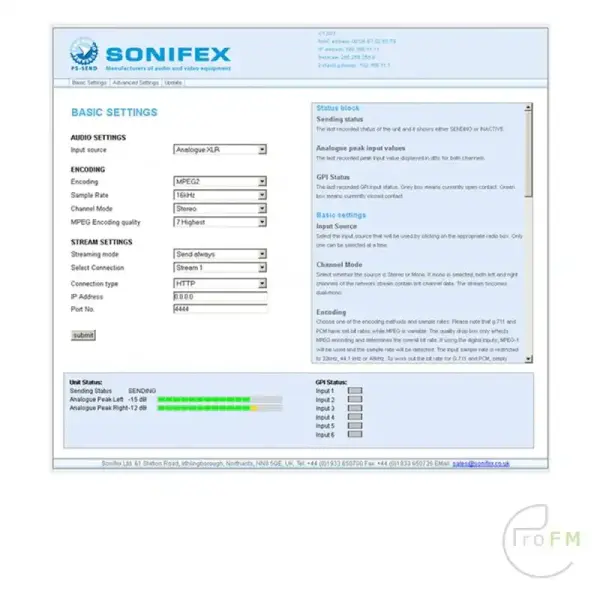

All the configuration settings for the unit are accessed via a local web-server built into it. The type of encoding and the transport mechanism are defined by selecting the connection from a pre-defined list. The PS-SEND encodes an audio source into an MP3 (from analogue or digital inputs), G.711 or PCM (from analogue inputs only) audio stream using HTTP, RTP, raw UDP or raw TCP protocols, including multicast support and the following encoder types are available: Mpeg1 & 2 Layer3, MP3 CBR (constrant bit-rate), PCM linear and A-law, U-law, with 8kHz-48kHz sample rates . The unit can configure its own IP address using DHCP/BOOTP, IPzator or AutoIP. A readout of the set IP address can be heard on every reset using SONICIP technology, if selected. Remote level monitoring is also possible using SNMP traps.

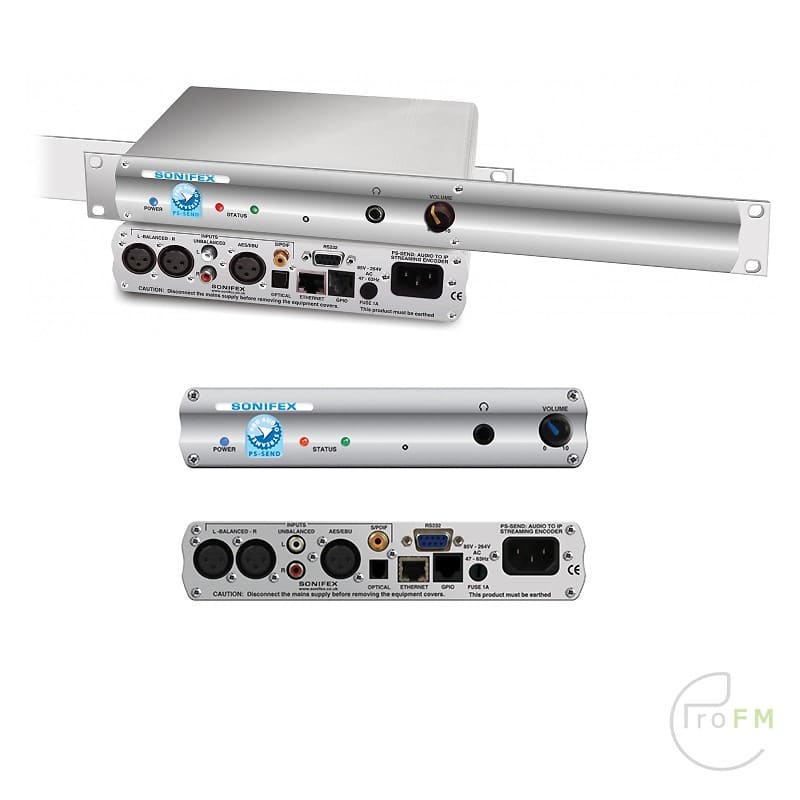

Two red and green front panel LEDs indicate what state the unit is currently in, be it normal operational mode or bootstrap mode, and also indicates the current network connection status. A blue LED denotes power to the unit. The input being routed to the IP stream can be monitored on the front panel ¼” (6.35mm) stereo jack socket in combination with a headphone volume knob.
The rear panel has 2 x RJ45 connectors, one for the 10/100Mbit Ethernet interface and one for GPI connections. The PS-SEND has 6 x GPIs which can be used to trigger the sending of the audio stream and which can also be used to trigger remote events using an output relay on the PS-PLAY and PS-AMP. There is a 9 way D-type RS232 serial connection for control of the unit by automation systems and firmware updates. The unit can be remote controlled via serial connection, TCP or UDP.
Power to the unit is via a universal supply 85V – 264V fused IEC mains socket.
| Analogue Inputs: | 2 x XLR 3 pin (balanced)( L&R) |
| 2 x RCA phono (unbalanced)( L&R) | |
| Analogue Max Input Level: | 18dBu XLR balanced |
| 8dBu RCA phono unbalanced | |
| Analogue Balanced Input Impedance: | 20kΩ |
| Analogue Input SNR: | 74dB |
| Input THD: | 0.02% Relative |
| Interchannel Isolation (Cross Talk): | 80dB (Ref FSD) |
| Digital Inputs: | 1 x AES/EBU XLR 3 pin female |
| 1 x S/PDIF RCA phono | |
| 1 x TOSLink optical input | |
| Analogue Outputs: | 1 x ¼ inch jack headphone socket |
| Headphones Output: | Drives 150mW into 32Ω to 600kΩ stereo headphones |
| GPIs (General Purpose Inputs): | 6 x GPIs, selectable via webpage control on RJ45 socket |
| Serial Port: | 1 x 9 way D-type socket, used to send control commands and update firmware |
| Ethernet Port: | 1 x RJ45 socket. Remote control commands can be sent via TCP or UDP as well as firmware updates. |
| Mains Input: | Filtered IEC, 85 – 264VAC, 47 – 63 Hz,10W, max |
| Fuse Rating: | Anti-surge fuse 1A 20 x 5mm |
| Encoder | G.711 (U Law/A Law 8kHz to 48kHz sampling rate) |
| WAV (IMA ADPCM 16bit PCM uncompressed: 8kHz to 48kHz) | |
| MP3 Layer 1 (32, 44.1 and 48 kHz, CBR VBR ABR) | |
| MP3 Layer 2 (16, 22.05 and 24 kHz, CBR VBR ABR) | |
| Supported Network Transport Protocols | RTP – UDP |
| HTTP – TCP | |
| SIP | |
| Raw UDP | |
| Raw TCP | |
| Can also act as Icecast/Shoutcast source | |
| SNMP – traps for remote management | |
| DHCP, BOOTP, IPZator or AUTOIP – Dynamic IP address resolution | |
| SonicIP IP Address readout | |
| PS-SEND Dimensions (Raw): | 22cm (W) x 13.7cm (D) x 4.3cm (H) |
| 8.67” (W) x 5.39” (D) x 1.7” (H) | |
| PS-SEND Dimensions (Boxed): | 34cm (W) x 27cm (D) x 6cm (H) |
| 13.4” (W) x 10.6” (D) x 2.4” (H) | |
| PS-SEND Weight: | Nett: 0.84kg Gross: 1.64kg |
| Nett: 1.85lbs Gross: 3.6lbs | |
| PS-SENDS Dimensions (Raw): | 48.3cm (W) x 13.7cm (D) x 4.3cm (H) |
| 19” (W) x 5.39” (D) x 1.7” (H) | |
| PS-SENDS Dimensions (Boxed): | 58.8cm (W) x 27cm (D) x 6.8cm (H) |
| 23” (W) x 10.6” (D) x 2.7” (H) | |
| PS-SENDS Weight: | Nett: 1.34kg Gross: 2.14kg |
| Nett: 2.95lbs Gross: 4.7lbs |
