Description

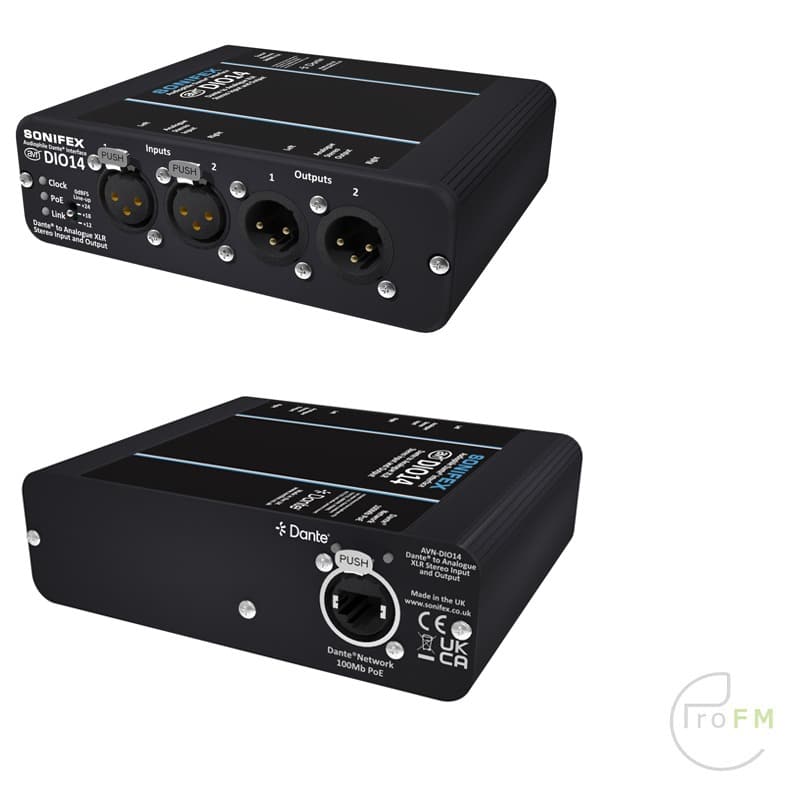

Sonifex AVN-DIO14 Dante to XLR Analogue Stereo Input & Output
The AVN-DIO14 is a Dante to XLR analogue stereo input & output converter in the Sonifex DIO range of Dante input/output devices. It features two balanced analogue XLR outputs, two balanced analogue XLR inputs and one Neutrik etherCON connector for direct connection to a Dante AoIP network.
The front panel provides a global 0dBFS line-up which can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch. There are also front panel LEDs to indicate network clock status, AoIP link status and PoE power active.
It’s powered using Power over Ethernet (PoE), using a Neutrik etherCON connector. The AVN-DIO14 uses the latest Audinate Dante chipset so is AES67 and Dante Domain Manager compliant.
| Technical Specification For AVN-DIO14 | |
| Analogue XLR Input / Output Pin-out | |
| Pin | Function |
| 1 | Chassis Ground |
| 2 | Phase |
| 3 | Non Phase |
| Line Inputs – XLR | |
| Input Impedance: | 5kΩ Unbalanced |
| 0dBFS Line-Up: | Selectable +12/+18/+24dBu |
| Frequency Response: | 20Hz to 20kHz, +0/-0.2dB (ref 1kHz) |
| THD+N: | <-118dBFS, -12dBu (+18dBu=0dBFS mode), 20Hz to 20kHz, 20kHz BW |
| Dynamic Range | 120dB, 20kHz BW, Rs=200Ω |
| Cross Talk | <-110dB |
| Common Mode Rejection | >60dB @ 1kHz |
Line Outputs – XLR | |
| Output Impedance: | <200Ω balanced |
| 0dBFS Line-Up: | Selectable +12/+18/+24dBu |
| Frequency Response: | 20Hz to 20kHz, +0/-0.5dB (ref 1kHz) |
| THD+N: | <-100dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW |
| Dynamic Range | 120dB, 20kHz BW |
| Cross Talk | <-110dB |
Network and AoIP | |
| AoIP Standard: | Dante |
| Channels: | 2 transmit, 2 receive |
| Flows: | 2 transmit, 2 receive |
| Sample Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz |
| Encoding: | PCM 16, PCM 24, PCM 32 |
| AES67 Support | Yes |
| Connectivity: | etherCON (RJ45 compatible) |
| Speed: | 100Mbps |
| Dante Domain Manager Ready: | Yes |
| Clock Source: | Internal (PTP Leader) or Network PTP Leader |
PoE Power | |
| Standard | 802.3af |
| Class | 0 |
| PD Power Range | 0.44 W to 12.94 W |
| Typical PSE Power Usage | 6 W |
| Max PSE Usage | 15.4 W |
Equipment Type | |
| AVN-DIO14: | Dante® to XLR Analogue Stereo Input & Output converter |
Physical Specification | |
| Dimensions (Raw): | 14.0cm (W) x 13.6cm (D) x 4.2cm (H) 5.5” (W) x 5.4” (D) x 1.7” (H) |
| Dimensions (Boxed): | 17.8cm (W) x 17cm (D) x 5.6cm (H) 7.0″ (W) x 6.7″ (D) x 2.2″ (H) |
| Weight: | Nett: 0.42kg Gross: 0.56kg Nett: 0.95lbs Gross: 1.25lbs |
