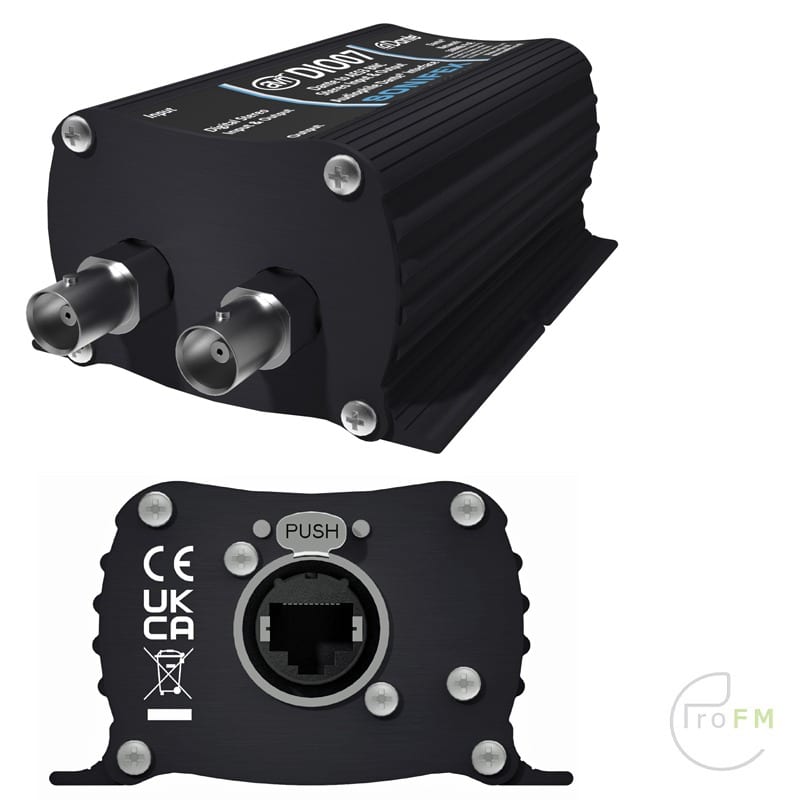

Sonifex AAVN-DIO07 Dante® to AES-3id BNC Stereo Input & Output
The AAVN-DIO07 is a Dante to AES-3id digital input and output audio convertor in the Sonifex DIO range of Dante input/output devices. It features stereo AES-3id digital audio inputs and outputs on BNC connectors, and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.
All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.
All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.
- 1 x stereo AES-3id BNC input.
- 1 x stereo AES-3id BNC output.
- Neutrik EtherCon® Ethernet connection.
- Fully Dante compliant device.
- AES67 compatible.
- Dante Domain Manager compliant.
- Ultra-high quality, wide dynamic range conversion.
- Powered via PoE (Power over Ethernet).
| Technical Specification For AVN-DIO07 | |||
| AES-3id BNC Input & Output Pin-out | |||
| Pin | Function | ||
| Inner: | Signal | ||
| Outer: | Chassis Ground | ||
| AES-3id Input – BNC | |||
| Parameter | Description | ||
| Input Impedance: | 75Ω unbalanced | ||
| Input Format: | AES-3id | ||
| Supported Sample Rates: | 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz | ||
| AES-3id Output – BNC | |||
| Parameter | Description | ||
| Output Impedance: | 75Ω unbalanced | ||
| Output Format: | AES-3id | ||
| Supported Sample Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz | ||
| Dante | |||
| Parameter | Description | ||
| Sample Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz | ||
| Encoding: | PCM 16, PCM 24, PCM 32 | ||
| PoE Power | |||
| Standard | 802.3af | ||
| Class | 0 | ||
| PD Power Range | 0.44 W to 12.94 W | ||
| Typical PSE Power Usage | 2 W | ||
| Max PSE Power Usage | 15.4 W | ||
| Equipment Type | |||
| AVN-DIO07: | Dante® to AES-3id BNC Stereo Input & Output | ||
| Physical Specification | |||
| Dimensions (Raw): | 11.6cm (W) x 7.3cm (D) x 4.3cm (H) 4.6” (W) x 2.9” (D) x 1.7” (H) | ||
| Dimensions (Boxed): | 17.4cm (W) x 9.5cm (D) x 5.6cm (H) 6.9” (W) x 3.7” (D) x 2.2” (H) | ||
| Weight: | Nett: 0.2kg Gross: 0.3kg Nett: 0.44lbs Gross: 0.66lbs | ||
- Description
-
Sonifex AAVN-DIO07 Dante® to AES-3id BNC Stereo Input & Output
The AAVN-DIO07 is a Dante to AES-3id digital input and output audio convertor in the Sonifex DIO range of Dante input/output devices. It features stereo AES-3id digital audio inputs and outputs on BNC connectors, and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.
All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.
All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.
- 1 x stereo AES-3id BNC input.
- 1 x stereo AES-3id BNC output.
- Neutrik EtherCon® Ethernet connection.
- Fully Dante compliant device.
- AES67 compatible.
- Dante Domain Manager compliant.
- Ultra-high quality, wide dynamic range conversion.
- Powered via PoE (Power over Ethernet).
- Specifications
-
Technical Specification For AVN-DIO07 AES-3id BNC Input & Output Pin-out Pin Function Inner: Signal Outer: Chassis Ground AES-3id Input – BNC Parameter Description Input Impedance: 75Ω unbalanced Input Format: AES-3id Supported Sample Rates: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz AES-3id Output – BNC Parameter Description Output Impedance: 75Ω unbalanced Output Format: AES-3id Supported Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz Dante Parameter Description Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz Encoding: PCM 16, PCM 24, PCM 32 PoE Power Standard 802.3af Class 0 PD Power Range 0.44 W to 12.94 W Typical PSE Power Usage 2 W Max PSE Power Usage 15.4 W Equipment Type AVN-DIO07: Dante® to AES-3id BNC Stereo Input & Output Physical Specification Dimensions (Raw): 11.6cm (W) x 7.3cm (D) x 4.3cm (H)
4.6” (W) x 2.9” (D) x 1.7” (H)Dimensions (Boxed): 17.4cm (W) x 9.5cm (D) x 5.6cm (H)
6.9” (W) x 3.7” (D) x 2.2” (H)Weight: Nett: 0.2kg Gross: 0.3kg
Nett: 0.44lbs Gross: 0.66lbs - Video
-
