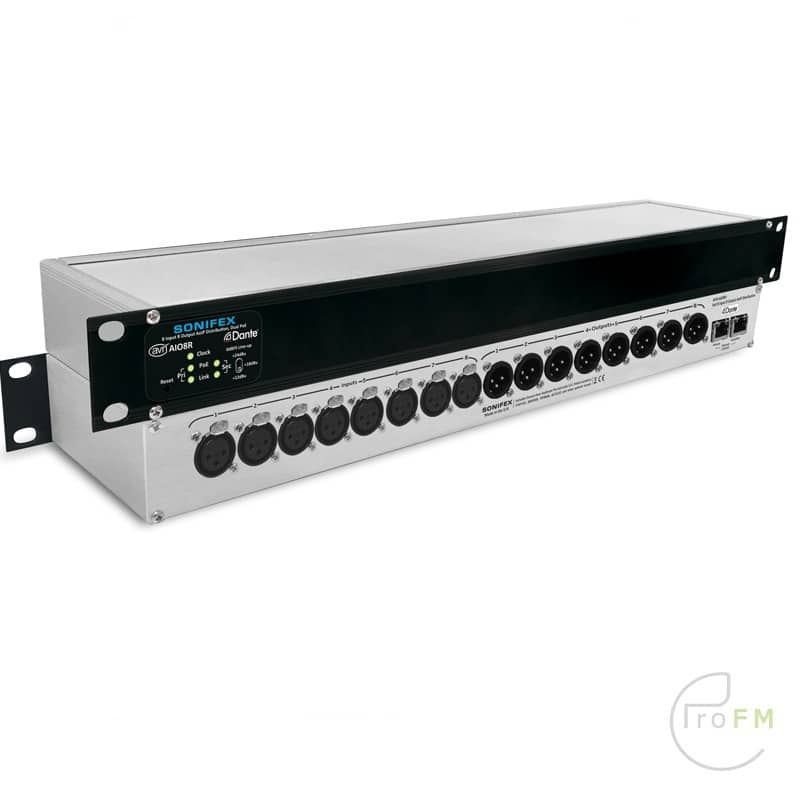

Sonifex AVN-AIO8R 8 Input, 8 Output, Dual Dante® Interface, PoE
The AVN-AIO8R audio converter and interface converts up to eight analogue inputs and eight analogue outputs to and from the Dante Audio-over-IP networking standard. Dual Ethernet ports allow the unit to operate in redundant mode, ensuring audio routing is maintained in the event of loss of link on either of the network connections.
This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up, except line-up levels, done via the standard Dante Controller software and power via PoE (Power Over Ethernet).
All analogue inputs and outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link, and Clock. Global 0dBFS line-up can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch.
- 8 x balanced analogue inputs on XLR.
- 8 x balanced analogue outputs on XLR.
- Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu).
- 2 x RJ45 Dante connectors (1Gb/s Ethernet Port) allowing the unit to operate in redundant or switched modes.
- PoE and Link LED status indicators for each Ethernet port.
- Clock LED status indicator.
- Configuration using Dante Controller.
- AES67 operation & Dante Domain Manager compliant.
- Powered by PoE on either (or both) Ethernet ports, offering power supply redundancy.
- 1U 19” rack-mount form factor.
(The AVN-AIO8 is available with a single Ethernet port).
Technical Specification For AVN-AIO8R |
|
Network and AoIP |
|
| AoIP Standard: | Dante |
| Number of Channels: | 8 receive, 8 transmit |
| Number of Streams: | 8 receive, 8 transmit |
| Sample Rate: | 44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz |
| Format: | Linear PCM, 16, 24 or 32 bit |
| AES67 Support: | Yes |
| Connectivity: | 2 x RJ45 |
| Speed: | 1Gbps or 100Mbps |
| Network Modes: | Switched or redundant |
| Dante Domain Manager Ready: | Yes |
Audio Input Performance Specifications |
|
| Parameter | Line Input |
| Input Impedance: | >20kΩ balanced |
| 0dBFS line-up: | User Selectable +12dBu/+18dBu/+24dBu balanced |
| Frequency Response: | 20Hz to 20kHz, +0/-0.2dB |
| THD+N: | <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW |
| Noise: | -110dBFS, 20kHz BW, Rs=200Ω |
| Crosstalk: | <-100 dB |
| Common Mode Rejection: | >60dB @ 1kHz |
Audio Output Performance Specifications |
|
| Parameter | Line Output |
| Output Impedance: | <50Ω balanced |
| 0dBFS line-up: | User Selectable +12dBu/+18dBu/+24dBu balanced |
| Frequency Response: | 20Hz to 20kHz, +0/-0.5dB |
| THD+N: | <-107dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW |
| Noise: | -107dBFS, 20kHz BW |
| Crosstalk: | <100dB |
Balanced Line Input XLR Pinout |
|
| Pin | Function |
| 1 | Chassis Ground/Screen |
| 2 | Input Phase/Positive |
| 3 | Input Non-Phase/Negative |
Balanced Line Output XLR Pinout |
|
| Pin | Function |
| 1 | Chassis Ground/Screen |
| 2 | Output Phase/Positive |
| 3 | Output Non-Phase/Negative |
PoE Power |
|
| Standard | 802.3af |
| Class | 0 |
| PD Power Range | 0.44 W to 12.94 W |
| Typical PSE Power Usage | 7.5 W |
| Max PSE Power Usage | 15.4 W |
Equipment Type |
|
| AVN-AIO8R: | 8 Input, 8 Output, Dual Dante® Interface, PoE |
Physical Specification |
|
| Dimensions (Raw): | 48cm (W) x 11cm (D) x 4.3cm (H)(1U) 19” (W) x 4.3” (D) x 1.7” (H) |
| Weight: | Nett: 1.1kg Gross: 1.6kg Nett: 2.4lbs Gross: 3.5lbs |
- Description
-
Sonifex AVN-AIO8R 8 Input, 8 Output, Dual Dante® Interface, PoE
The AVN-AIO8R audio converter and interface converts up to eight analogue inputs and eight analogue outputs to and from the Dante Audio-over-IP networking standard. Dual Ethernet ports allow the unit to operate in redundant mode, ensuring audio routing is maintained in the event of loss of link on either of the network connections.
This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up, except line-up levels, done via the standard Dante Controller software and power via PoE (Power Over Ethernet).
All analogue inputs and outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link, and Clock. Global 0dBFS line-up can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch.
- 8 x balanced analogue inputs on XLR.
- 8 x balanced analogue outputs on XLR.
- Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu).
- 2 x RJ45 Dante connectors (1Gb/s Ethernet Port) allowing the unit to operate in redundant or switched modes.
- PoE and Link LED status indicators for each Ethernet port.
- Clock LED status indicator.
- Configuration using Dante Controller.
- AES67 operation & Dante Domain Manager compliant.
- Powered by PoE on either (or both) Ethernet ports, offering power supply redundancy.
- 1U 19” rack-mount form factor.
(The AVN-AIO8 is available with a single Ethernet port).
- Specifications
-
Technical Specification For AVN-AIO8R
Network and AoIP
AoIP Standard: Dante Number of Channels: 8 receive, 8 transmit Number of Streams: 8 receive, 8 transmit Sample Rate: 44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz Format: Linear PCM, 16, 24 or 32 bit AES67 Support: Yes Connectivity: 2 x RJ45 Speed: 1Gbps or 100Mbps Network Modes: Switched or redundant Dante Domain Manager Ready: Yes Audio Input Performance Specifications
Parameter Line Input Input Impedance: >20kΩ balanced 0dBFS line-up: User Selectable +12dBu/+18dBu/+24dBu balanced Frequency Response: 20Hz to 20kHz, +0/-0.2dB THD+N: <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW Noise: -110dBFS, 20kHz BW, Rs=200Ω Crosstalk: <-100 dB Common Mode Rejection: >60dB @ 1kHz Audio Output Performance Specifications
Parameter Line Output Output Impedance: <50Ω balanced 0dBFS line-up: User Selectable +12dBu/+18dBu/+24dBu balanced Frequency Response: 20Hz to 20kHz, +0/-0.5dB THD+N: <-107dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW Noise: -107dBFS, 20kHz BW Crosstalk: <100dB Balanced Line Input XLR Pinout
Pin Function 1 Chassis Ground/Screen 2 Input Phase/Positive 3 Input Non-Phase/Negative Balanced Line Output XLR Pinout
Pin Function 1 Chassis Ground/Screen 2 Output Phase/Positive 3 Output Non-Phase/Negative PoE Power
Standard 802.3af Class 0 PD Power Range 0.44 W to 12.94 W Typical PSE Power Usage 7.5 W Max PSE Power Usage 15.4 W Equipment Type
AVN-AIO8R: 8 Input, 8 Output, Dual Dante® Interface, PoE Physical Specification
Dimensions (Raw): 48cm (W) x 11cm (D) x 4.3cm (H)(1U)
19” (W) x 4.3” (D) x 1.7” (H)Weight: Nett: 1.1kg Gross: 1.6kg
Nett: 2.4lbs Gross: 3.5lbs
