Description

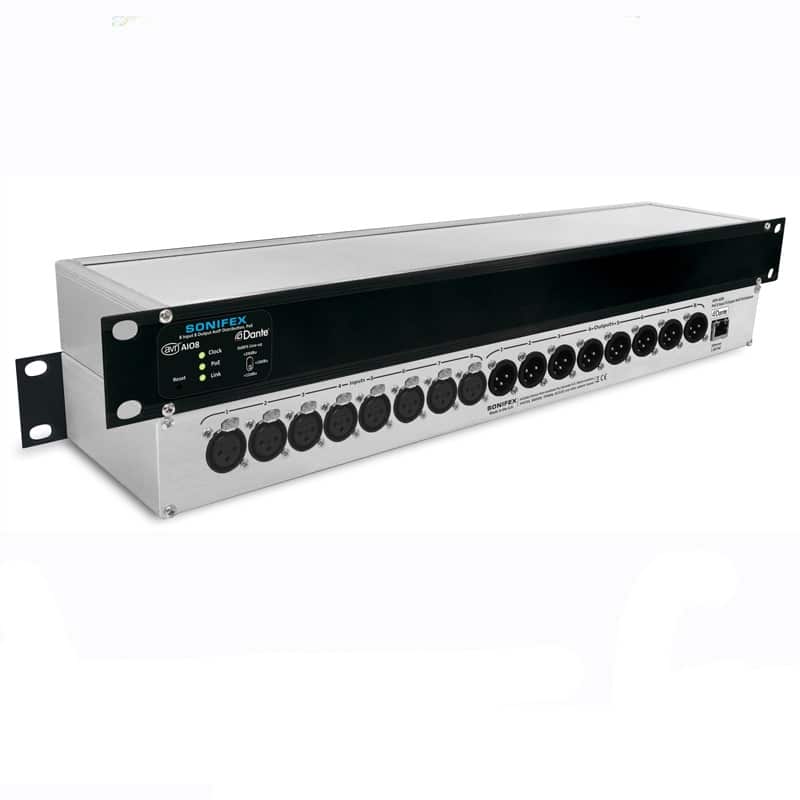

Sonifex AVN-AIO8 8 Input, 8 Output Dante® Interface, PoE
The AVN-AIO8 audio converter and interface converts up to eight analogue inputs and eight analogue outputs to and from the Dante Audio-over-IP networking standard. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up, except line-up levels, done via the standard Dante Controller software and power via PoE (Power Over Ethernet).
All analogue inputs and outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link, and Clock. Global 0dBFS line-up can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch.
- 8 x balanced analogue inputs on XLR.
- 8 x balanced analogue outputs on XLR.
- Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu).
- 1 x RJ45 Dante connector (1Gb/s Ethernet Port).
- PoE, Link, and Clock LED status indicators.
- Configuration using Dante Controller.
- AES67 operation & Dante Domain Manager compliant.
- Powered by PoE.
- 1U 19” rack-mount form factor.
(The AVN-AIO8R is available with dual redundant Ethernet ports).
Technical Specification For AVN-AIO8 | |
Network and AoIP | |
| AoIP Standard: | Dante |
| Number of Channels: | 8 receive, 8 transmit |
| Number of Streams: | 8 receive, 8 transmit |
| Sample Rates: | 44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz |
| Format: | Linear PCM, 16, 24 or 32 bit |
| AES67 Support: | Yes |
| Connectivity: | 1 x RJ45 |
| Speed: | 1Gbps or 100Mbps |
| Dante Domain Manager Ready: | Yes |
Audio Input Performance Specifications | |
| Parameter | Line Input |
| Input Impedance: | >20kΩ balanced |
| 0dBFS line-up: | User Selectable +12dBu/+18dBu/+24dBu balanced |
| Frequency Response: | 20Hz to 20kHz, +0/-0.2dB |
| THD+N: | <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW |
| Noise: | -110dBFS, 20kHz BW, Rs=200Ω |
| Crosstalk: | <-100 dB |
| Common Mode Rejection: | >60dB @ 1kHz |
Audio Output Performance Specifications | |
| Parameter | Line Output |
| Output Impedance: | <50Ω balanced |
| 0dBFS line-up: | User Selectable +12dBu/+18dBu/+24dBu balanced |
| Frequency Response: | 20Hz to 20kHz, +0/-0.5dB |
| THD+N: | <-107dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW |
| Noise: | -107dBFS, 20kHz BW |
| Crosstalk: | <100dB |
Balanced Line Input XLR Pinout | |
| Pin | Function |
| 1 | Chassis Ground/Screen |
| 2 | Input Phase/Positive |
| 3 | Input Non-Phase/Negative |
Balanced Line Output XLR Pinout | |
| Pin | Function |
| 1 | Chassis Ground/Screen |
| 2 | Output Phase/Positive |
| 3 | Output Non-Phase/Negative |
PoE Power | |
| Standard | 802.3af |
| Class | 0 |
| PD Power Range | 0.44 W to 12.94 W |
| Typical PSE Power Usage | 6.5 W |
| Max PSE Power Usage | 15.4 W |
Equipment Type | |
| AVN-AIO8: | 8 Input, 8 Input, 8 Output Dante® Interface, PoE |
Physical Specification | |
| Dimensions (Raw): | 48cm (W) x 11cm (D) x 4.3cm (H)(1U) 19” (W) x 4.3” (D) x 1.7” (H) |
| Weight: | Nett: 1.1kg Gross: 1.6kg Nett: 2.4lbs Gross: 3.5lbs |
- Description
-
Sonifex AVN-AIO8 8 Input, 8 Output Dante® Interface, PoE
The AVN-AIO8 audio converter and interface converts up to eight analogue inputs and eight analogue outputs to and from the Dante Audio-over-IP networking standard. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up, except line-up levels, done via the standard Dante Controller software and power via PoE (Power Over Ethernet).
All analogue inputs and outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link, and Clock. Global 0dBFS line-up can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch.
- 8 x balanced analogue inputs on XLR.
- 8 x balanced analogue outputs on XLR.
- Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu).
- 1 x RJ45 Dante connector (1Gb/s Ethernet Port).
- PoE, Link, and Clock LED status indicators.
- Configuration using Dante Controller.
- AES67 operation & Dante Domain Manager compliant.
- Powered by PoE.
- 1U 19” rack-mount form factor.
(The AVN-AIO8R is available with dual redundant Ethernet ports).
- Specifications
-
Technical Specification For AVN-AIO8
Network and AoIP
AoIP Standard: Dante Number of Channels: 8 receive, 8 transmit Number of Streams: 8 receive, 8 transmit Sample Rates: 44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz Format: Linear PCM, 16, 24 or 32 bit AES67 Support: Yes Connectivity: 1 x RJ45 Speed: 1Gbps or 100Mbps Dante Domain Manager Ready: Yes Audio Input Performance Specifications
Parameter Line Input Input Impedance: >20kΩ balanced 0dBFS line-up: User Selectable +12dBu/+18dBu/+24dBu balanced Frequency Response: 20Hz to 20kHz, +0/-0.2dB THD+N: <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW Noise: -110dBFS, 20kHz BW, Rs=200Ω Crosstalk: <-100 dB Common Mode Rejection: >60dB @ 1kHz Audio Output Performance Specifications
Parameter Line Output Output Impedance: <50Ω balanced 0dBFS line-up: User Selectable +12dBu/+18dBu/+24dBu balanced Frequency Response: 20Hz to 20kHz, +0/-0.5dB THD+N: <-107dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW Noise: -107dBFS, 20kHz BW Crosstalk: <100dB Balanced Line Input XLR Pinout
Pin Function 1 Chassis Ground/Screen 2 Input Phase/Positive 3 Input Non-Phase/Negative Balanced Line Output XLR Pinout
Pin Function 1 Chassis Ground/Screen 2 Output Phase/Positive 3 Output Non-Phase/Negative PoE Power
Standard 802.3af Class 0 PD Power Range 0.44 W to 12.94 W Typical PSE Power Usage 6.5 W Max PSE Power Usage 15.4 W Equipment Type
AVN-AIO8: 8 Input, 8 Input, 8 Output Dante® Interface, PoE Physical Specification
Dimensions (Raw): 48cm (W) x 11cm (D) x 4.3cm (H)(1U)
19” (W) x 4.3” (D) x 1.7” (H)Weight: Nett: 1.1kg Gross: 1.6kg
Nett: 2.4lbs Gross: 3.5lbs
