Description

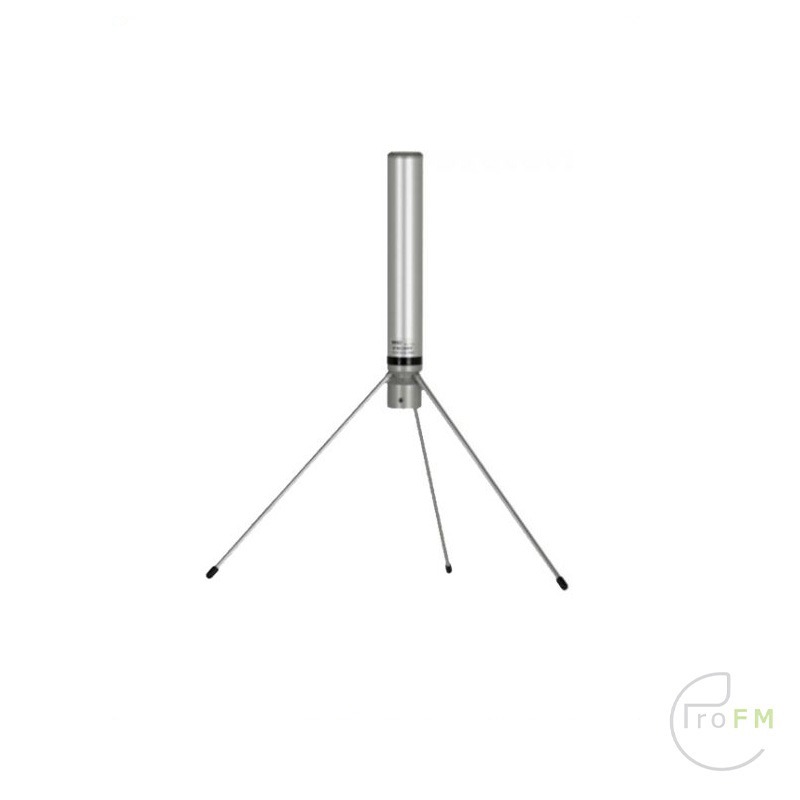

Sirio GP 87-108 LB N GP FM Antenna
1/4 λ Ground Plane wide-band antenna for base station service. It is made of aluminium and hiqhquality materials to get the best efficiency and robustness. Its radial whip is earthed to be protected against the static discharges. GP 87-108 LB is developed for FM radio band
Optional:
Type : Side Mast Fixing Bracket
Top Size : ∅ 38 mm for antenna fitting
Botton Size : ∅ 42/50 mm for fitting on the mast
Weight (approx.) : 1100 gr
Material : Galvanized Steel
Type: 1/4λ ground plane large band
Frequency range: RADIO band 87-108 MHz @ SWR ≤ 2.5
Impedance: 50Ω
Radiation (H-plane): 360° omnidirectional
Radiation (E-plane): beamwidth @ -3 dB = 78°
Radiation angle: 0°
Polarization: linear vertical
Gain: 0 dBd – 2.15 dBi
Max. Power (CW) @ 30°C: 600 Watts
Grounding protection: All metal parts are DC-grounded, the inner conductor shows a DC short
Connector: N-female
