SielCo TX3000 FM Transmitter 3 KW / 3000 Watts

Call for price

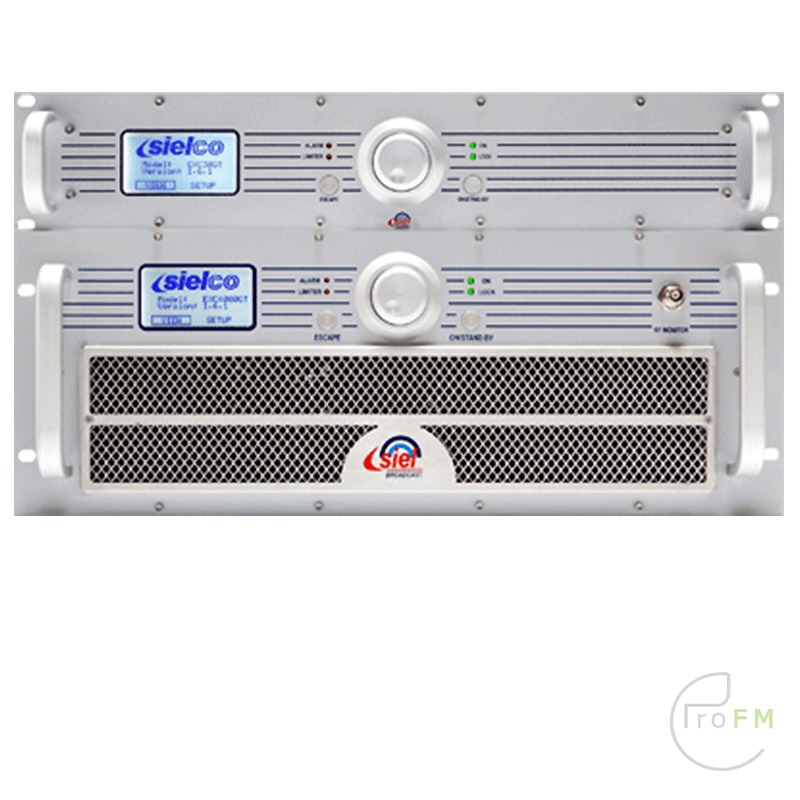

SielCo TX3000 FM Transmitter 3 KW / 3000 Watts

The SielCo TX 3000GX is a 3000 Watt FM Transmitter . It exists of a EXC30GT driver – exiter and aan RFB3000 Amplifier.The combined FM transmitter and FM output stage is light in weight and has minimum dimensions and low energy consumption.

Category: SKU: 1069 Tag:

Description

SielCo TX3000GX FM Transmitter 3 KW / 3000 Watts

The TX3000GX model is Sielco’s 3 kW combined transmitter. It exists of a EXC30GT driver – exiter and aan RFB3000 Amplifier. It is appreciated for its great efficiency and versatility for three main reasons: LIGHT weight, MINIMUM size and LOW consumption. Buying a TX 3000GX, like any other model of the GX line, means making a winning choice, enjoying all the relevant benefits over the lifetime of the product and saving money: reduced transport costs, less space required to install it and the lowest energy consumption during work.

The TX 3000GXT is easy to set up: very easy to configure thanks to its intuitive human interface equipped with an elegant graphic LCD display, a multi-function jog control and just a few other control buttons.

The high flexibility of this combined transmitter can be further enhanced by the use of important options such as: telemetry/remote control systems, Ethernet connection with SNMP protocol, high quality stereo encoder, digital audio card in accordance with AES/EBU directive and RS232/ 485 serial port to allow easier integration with other instruments.

The modern and attractive design of our GX transmitters reflects the state-of-the-art technology of this reliable, low-maintenance model that saves you time and money. Note: the amplifier marked by the code RFB requires an exciter such as our EXC30GT as a driver.

The two devices linked together form the so-called combined transmitters, which are characterized by the prefix code TX.



Functions:

* Digital Control
* Compact chassis
* Frequency Agile – User can select any channel from 87.6MHz to 108MHz.
* Auto Power Control – Output power is kept at your selected level, both forward and reflected power is displayed on the front panel.
* Display – Blue colored screen allows easy display of all parameters in high ambient light conditions.
* Transmitter complies with CCIR AND FCC standards.
* Comprehensive transmitter protection minimizes system downtime.
*Audio/mpx input level -3.5 ÷ 12.5 dBm adjustable
*Adjustable in 10 kHz steps
*Pre-enphasis 50 ~s ±3% (0, 25, 50, 75 ~s selectable)
*Audio/mpx input impedance 10k/600 ohms balanced
*Deviation limiter adjustable from 0 to 7dB

Description

SielCo TX3000GX FM Transmitter 3 KW / 3000 Watts

The TX3000GX model is Sielco’s 3 kW combined transmitter. It exists of a EXC30GT driver – exiter and aan RFB3000 Amplifier. It is appreciated for its great efficiency and versatility for three main reasons: LIGHT weight, MINIMUM size and LOW consumption. Buying a TX 3000GX, like any other model of the GX line, means making a winning choice, enjoying all the relevant benefits over the lifetime of the product and saving money: reduced transport costs, less space required to install it and the lowest energy consumption during work.

The TX 3000GXT is easy to set up: very easy to configure thanks to its intuitive human interface equipped with an elegant graphic LCD display, a multi-function jog control and just a few other control buttons.

The high flexibility of this combined transmitter can be further enhanced by the use of important options such as: telemetry/remote control systems, Ethernet connection with SNMP protocol, high quality stereo encoder, digital audio card in accordance with AES/EBU directive and RS232/ 485 serial port to allow easier integration with other instruments.

The modern and attractive design of our GX transmitters reflects the state-of-the-art technology of this reliable, low-maintenance model that saves you time and money. Note: the amplifier marked by the code RFB requires an exciter such as our EXC30GT as a driver.

The two devices linked together form the so-called combined transmitters, which are characterized by the prefix code TX.



Functions:

* Digital Control
* Compact chassis
* Frequency Agile – User can select any channel from 87.6MHz to 108MHz.
* Auto Power Control – Output power is kept at your selected level, both forward and reflected power is displayed on the front panel.
* Display – Blue colored screen allows easy display of all parameters in high ambient light conditions.
* Transmitter complies with CCIR AND FCC standards.
* Comprehensive transmitter protection minimizes system downtime.
*Audio/mpx input level -3.5 ÷ 12.5 dBm adjustable
*Adjustable in 10 kHz steps
*Pre-enphasis 50 ~s ±3% (0, 25, 50, 75 ~s selectable)
*Audio/mpx input impedance 10k/600 ohms balanced
*Deviation limiter adjustable from 0 to 7dB

Specifications

Additional information

Weight 40 kg
Dimensions 100 × 80 × 50 cm
