SielCo TX10000GX FM Transmitter  10KW / 10000 Watts

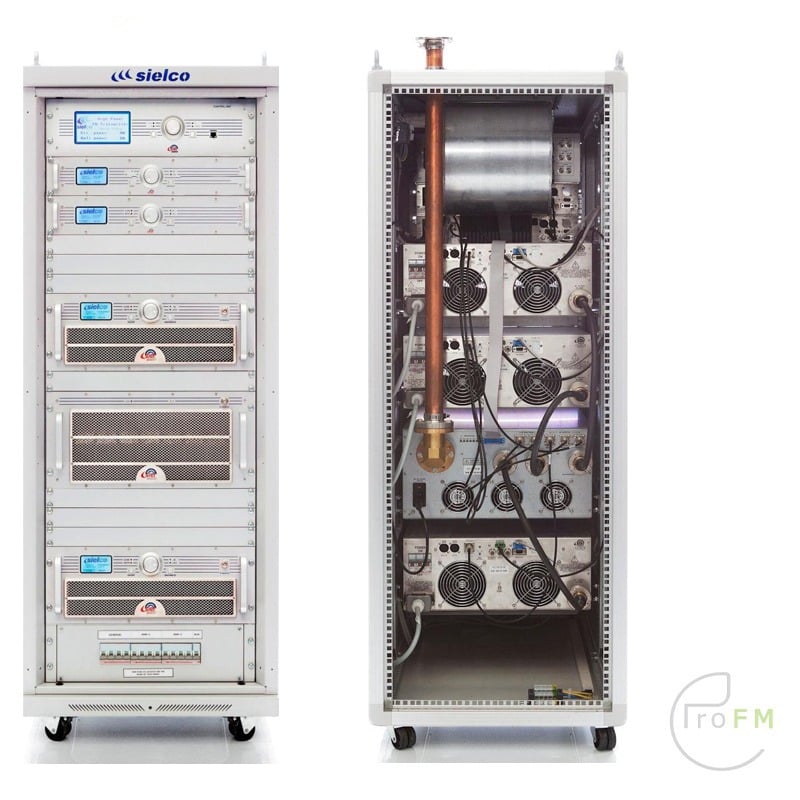

Sielco TX10000GX 10KW FM Transmitter composed of EXC30GT driver exiter and two RFB5000GX amplifiers.
The TX10000XT model is the 10000W version with two amplifiers. This model i also available with 3 Lower power amplifiers (RFB3500GX) and then labeled TX10000GX+
The TX 10000GT is low power consumption, very easy to configure thanks to its intuitive human interface which is equipped with an elegant graphic LCD display, a multifunctional jog control and just a few other control buttons. The high flexibility of this combined transmitter can be further enhanced by the use of important options such as: telemetry/remote control systems, Ethernet connection with SNMP protocol, high quality stereo encoder, digital audio card in accordance with AES/EBU directive and RS232/ 485 serial port to allow easier integration with other instruments.

The modern and attractive design of our GX transmitters reflects the state-of-the-art technology of this reliable, low-maintenance model that saves you time and money.

Highlights:

Professional performance, reliability and easy maintenance.
High gain amplifier with very low power consumption
Fully microprocessor controlled, menu digital interface for diagnosis and monitoring of all parameters displayed on the LCD screen.
APC (automatic power control) and flip-back protection, safe and reliable operation in any environmental condition.
Manufactured using the latest technologies for safe operation and easy maintenance.
Works perfectly with all Sielco telemetry systems.

4.10.b TX10KGX technical specifications
Frequency range …………………………………………………………………………………………………………………………………………… 87.5 – 108 MHz
Rated RF output power …………………………………………………………………………………………………………. 10.5 KW typical; 9.5 KW minimum
Exciter power … …………………………………………………………………………………………………………………………………………………………… 10 W
Output power ALC stability …………………………………………………………………………………………………………………………………………….. ± 3%
Harmonic and spurious emissions ……………………………………………………………………………………………………………………………….. < 80 dB
Output RF impedance ………………………………………………………………………………………………………………………………………………. 50 Ohm
RF output connector …………………………………………………………………………………………………………………………………………… flange 1-5/8”
RF sampling connector………………………………………………………………………………………………………………………………………………….. BNC
Modulation input ………………………………………………………………………………………………………………………………………….. -3.5 ÷ +12.5 dBm
Modulation signal ………………………………………………………………………………………………………………………………… Mpx, L & R, Mono, Aux
S/N stereo…….. ………………………………………………………………………………………………………………………………………………………… >75 dB
Power supply…… ……………………………………………………………………………………………………………… 400 Vac ± 15% 3 phases with neutral
Total consumption ………………………………………………………………………………………………………………………………………………….<17,5 kVA
Operative temperature range ………………………………………………………………………….. recommended: 0 to 35 °C; extreme: – 5 to + 45 °C*
Relative humidity……………………………………………………………………………..….. …………………………… up to 95 % not condensing
Operative atmospheric pressure ……………………………………………………………………………..….. …………………. 86 kPa to 106 kPa
Dimensions (30 units 19” UL standard rack) ………………………………………………………………………………….. 59 x 102 x 160 cm (W x D x H)
Weight …………………………………………………………………………………………………………………………………………………………………… 210 Kg**
