Name: SielCo RFB5000GX FM Amplifier 5KW / 5000 Watts
Brand: Sielco
SKU: 1023
Availability: InStock

Description

Description
Specifications

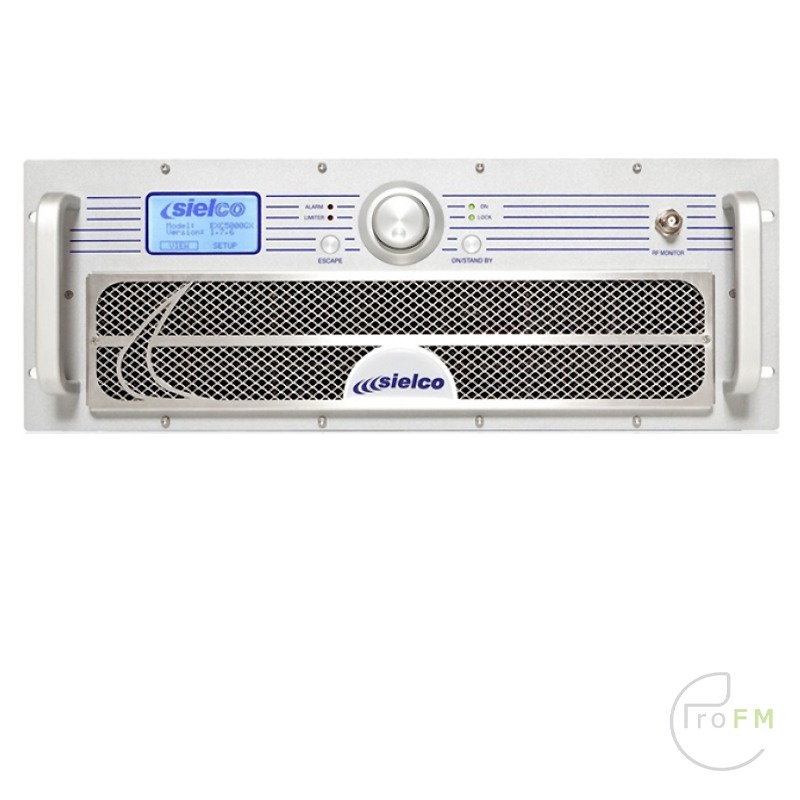

SielCo RFB5000GX FM Amplifier 5KW / 5000 Watts

The RFB5000GX is the new 5000W amplifier of the innovative GX version that updates the consolidated transmitters and amplifiers of GX line that has been around for several years and was
produced and sold in thousands of units. With its 33 kg and compact dimensions in 4U (the first in the world), the transmitter is easy to transport and easy to install in any 19″ rack. The new basic amplifier module gives 1200W with LDMOS transistors of the latest generation that has in fact allowed to increase the power while increasing the efficiency that now is close to 70%.
In addition to the beneficial influence on the cost of the electricity, we have less heating generation and therefore greater reliability.
The amplifiers RFB5000GX, without the FM modulator and the internal driver, can be driven by any external exciter of small power such as the EXC30GT with power duly reduced to 4W.
It meets or exceeds FCC or CCIR requirements.

Highlights:

– Professional performance, extreme compactness, reliability and lightness, easy maintenance.
– High gain amplifier with very low power consumption
– Fully microprocessor controlled, menu digital interface for diagnosis and monitoring of all parameters displayed on the LCD screen.
– APC (automatic power control) and flip-back protection, safe and reliable operation in any environmental condition.
– Manufactured using the latest technologies for safe operation and easy maintenance.
– Works perfectly with all Sielco telemetry systems

Frequency range:from 87,5 to 108 MHz
Rated RF output power:5000W
Transmitter tuning steps:10/100 KHz
Output power ALC stability:±3%
Harmonic and spurious emissions:<70dB (harmonic), <80 dBc (spurious)
RF output connector:7/8″
Power supply:Single phase – 230 VAc ± 15%
Three phase – 230 or 400 Vac ± 15% with neutral line
Total consumption at rated RF power:<7400W
Operative temperature range:suggested – from 0 to 35 °C extreme – from -10 to 50 °C max (with derating)
Relative humidity:up to 95% not condensing
Dimensions (WxHxD):483x177x650 mm
Weight:33kg

Description: SielCo RFB5000GX FM Amplifier 5KW / 5000 Watts

The RFB5000GX is the new 5000W amplifier of the innovative GX version that updates the consolidated transmitters and amplifiers of GX line that has been around for several years and was
produced and sold in thousands of units. With its 33 kg and compact dimensions in 4U (the first in the world), the transmitter is easy to transport and easy to install in any 19″ rack. The new basic amplifier module gives 1200W with LDMOS transistors of the latest generation that has in fact allowed to increase the power while increasing the efficiency that now is close to 70%.
In addition to the beneficial influence on the cost of the electricity, we have less heating generation and therefore greater reliability.
The amplifiers RFB5000GX, without the FM modulator and the internal driver, can be driven by any external exciter of small power such as the EXC30GT with power duly reduced to 4W.
It meets or exceeds FCC or CCIR requirements.

Highlights:

– Professional performance, extreme compactness, reliability and lightness, easy maintenance.
– High gain amplifier with very low power consumption
– Fully microprocessor controlled, menu digital interface for diagnosis and monitoring of all parameters displayed on the LCD screen.
– APC (automatic power control) and flip-back protection, safe and reliable operation in any environmental condition.
– Manufactured using the latest technologies for safe operation and easy maintenance.
– Works perfectly with all Sielco telemetry systems
Specifications: Frequency range:from 87,5 to 108 MHz
Rated RF output power:5000W
Transmitter tuning steps:10/100 KHz
Output power ALC stability:±3%
Harmonic and spurious emissions:<70dB (harmonic), <80 dBc (spurious)
RF output connector:7/8″
Power supply:Single phase – 230 VAc ± 15%
Three phase – 230 or 400 Vac ± 15% with neutral line
Total consumption at rated RF power:<7400W
Operative temperature range:suggested – from 0 to 35 °C extreme – from -10 to 50 °C max (with derating)
Relative humidity:up to 95% not condensing
Dimensions (WxHxD):483x177x650 mm
Weight:33kg
