Description

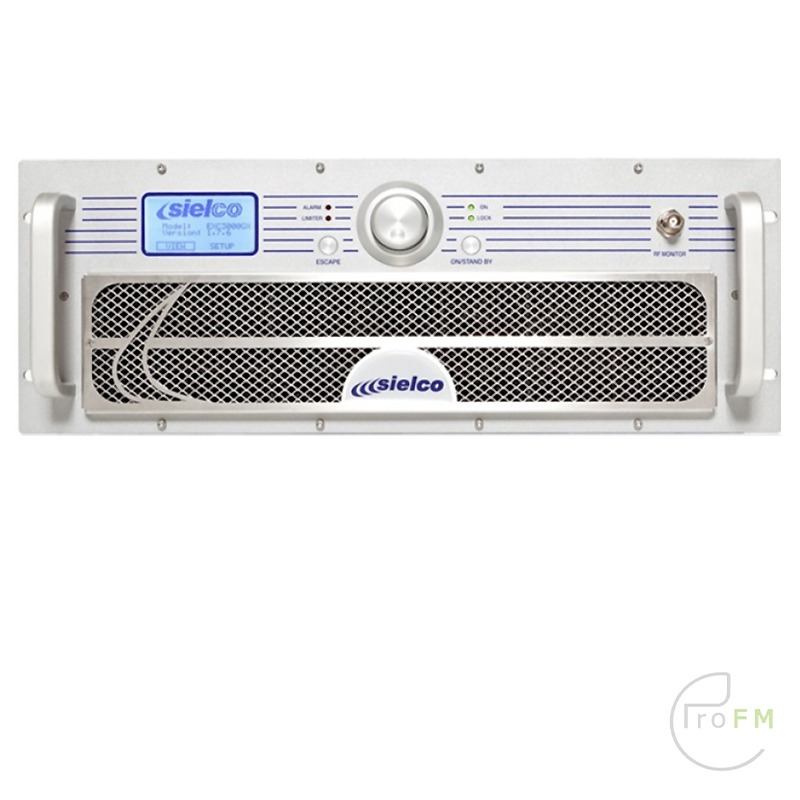

SielCo RFB3500GX FM Amplifier 3.5 KW / 3500 Watts
Produced by Sielco. It is appreciated for the great efficiency and versatility due to three main reasons: LIGHT weight, MINIMUM size and LOW consumption. To buy an RFB 3500GX, as anyone other model of the GX line, means to make a winning choice, to enjoy all the relevant advantages during all the life of the product and to spare money: less transport costs, less needed space to install it and the lowest energy consumption during the work.
RFB 3500GX is simple to set up: very easy to configure thanks to the intuitive human interface equipped with an elegant LCD graphic display, a multifunction jog control and only a few other control buttons. The high flexibility of this amplifiercould be even increased through the use of important options like: telemetry/remote control systems, Ethernet connection with SNMP protocol, high quality stereo encoder, audio digital board in accordance with AES/EBU directive and RS232/485 serial port to enable an easier integration with other instruments.
The modern and attractive design of our GX amplifiers reflects the state-of-the-art technology of this trustworthy model that requires a few maintenance and that allows to spare time and money. N.B.: the amplifier characterized by the code RFB needs an exciter like our EXC30GT as driver.
Highlights:
- Professional performance, Extreme compactness, reliability and lightness easy maintenance.
- High gain amplifier with a very low power consumption
- Fully microprocessor-controlled, menu-digital interface for diagnosis and monitoring of all parameters displayed on the LCD.
- APC (automatic power control) and foldback protection, safe and reliable operation in every environmental condition.
- Manufactured using the latest technologies for safe operation and easy maintenance.
- Works perfectly with all Siel telemetry systems
Frequency range:from 87,5 to 108 MHz
Rated RF output power:3000W
Transmitter tuning steps:10/100 KHz
Output power ALC stability:±3%
Harmonic and spurious emissions:<70dB (harmonic), <80 dBc (spurious)
RF output connector:7/8″
Power supply:Single phase – 230 VAc ± 15%
Three phase – 230 or 400 Vac ± 15% with neutral line
Total consumption at rated RF power:<3000W
Operative temperature range:suggested – from 0 to 35 °C
extreme – from -10 to 50 °C max (with derating)
Relative humidity:up to 95% not condensing
Dimensions (WxHxD):483x177x650 mm
Weight:30kg
- Description
-
SielCo RFB3500GX FM Amplifier 3.5 KW / 3500 Watts
Produced by Sielco. It is appreciated for the great efficiency and versatility due to three main reasons: LIGHT weight, MINIMUM size and LOW consumption. To buy an RFB 3500GX, as anyone other model of the GX line, means to make a winning choice, to enjoy all the relevant advantages during all the life of the product and to spare money: less transport costs, less needed space to install it and the lowest energy consumption during the work.
RFB 3500GX is simple to set up: very easy to configure thanks to the intuitive human interface equipped with an elegant LCD graphic display, a multifunction jog control and only a few other control buttons. The high flexibility of this amplifiercould be even increased through the use of important options like: telemetry/remote control systems, Ethernet connection with SNMP protocol, high quality stereo encoder, audio digital board in accordance with AES/EBU directive and RS232/485 serial port to enable an easier integration with other instruments.
The modern and attractive design of our GX amplifiers reflects the state-of-the-art technology of this trustworthy model that requires a few maintenance and that allows to spare time and money. N.B.: the amplifier characterized by the code RFB needs an exciter like our EXC30GT as driver.
Highlights:
- Professional performance, Extreme compactness, reliability and lightness easy maintenance.
- High gain amplifier with a very low power consumption
- Fully microprocessor-controlled, menu-digital interface for diagnosis and monitoring of all parameters displayed on the LCD.
- APC (automatic power control) and foldback protection, safe and reliable operation in every environmental condition.
- Manufactured using the latest technologies for safe operation and easy maintenance.
- Works perfectly with all Siel telemetry systems
- Specifications
-
Frequency range:from 87,5 to 108 MHz
Rated RF output power:3000W
Transmitter tuning steps:10/100 KHz
Output power ALC stability:±3%
Harmonic and spurious emissions:<70dB (harmonic), <80 dBc (spurious)
RF output connector:7/8″
Power supply:Single phase – 230 VAc ± 15%
Three phase – 230 or 400 Vac ± 15% with neutral line
Total consumption at rated RF power:<3000W
Operative temperature range:suggested – from 0 to 35 °Cextreme – from -10 to 50 °C max (with derating)
Relative humidity:up to 95% not condensing
Dimensions (WxHxD):483x177x650 mm
Weight:30kg
