Description

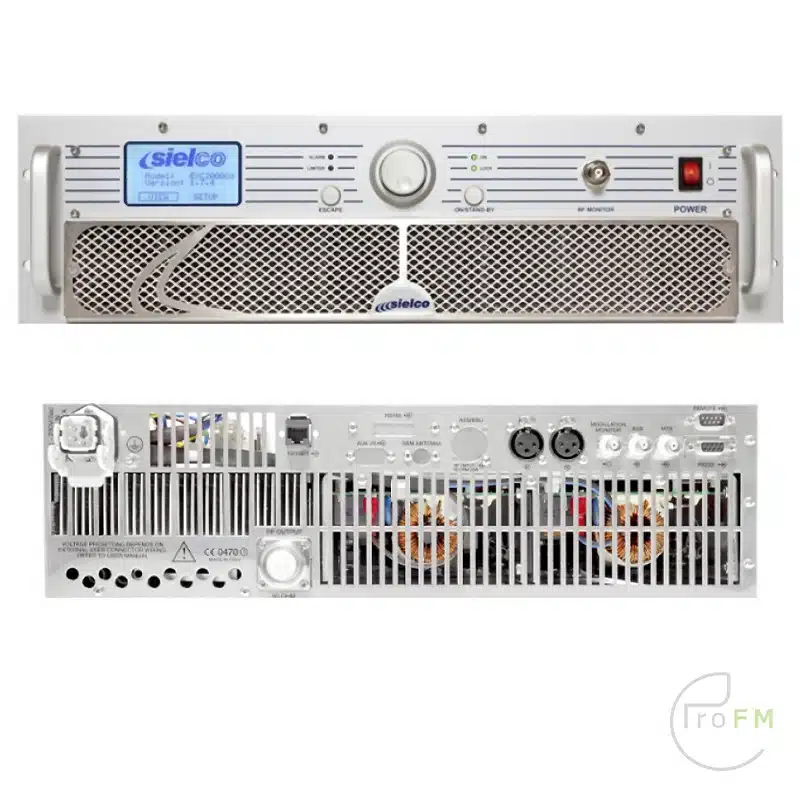

SielCo RFB2000GX FM Amplifier 2 KW / 2000 Watts
The Sielco RFB2000GX model is the 2000 Watt amplifier of the innovative GX family produced by Sielco. It is appreciated for the great efficiency and versatility due to three main reasons: LIGHT weight, MINIMUM size and LOW consumption. To buy an RFB 2000GX, as anyone other model of the GX line, means to make a winning choice, to enjoy all the relevant advantages during all the life of the product and to spare money: less transport costs, less needed space to install it and the lowest energy consumption during the work.
RFB2000GX is simple to set up: very easy to configure thanks to the intuitive human interface equipped with an elegant LCD graphic display, a multifunction jog control and only a few other control buttons. The high flexibility of this amplifiercould be even increased through the use of important options like: telemetry/remote control systems, Ethernet connection with SNMP protocol, high quality stereo encoder, audio digital board in accordance with AES/EBU directive and RS232/485 serial port to enable an easier integration with other instruments.
The modern and attractive design of our GX amplifiers reflects the state-of-the-art technology of this trustworthy model that requires a few maintenance and that allows to spare time and money. N.B.: the amplifier characterized by the code RFB needs an exciter like our EXC30GT as driver
Highlights:
- Professional performance, Extreme compactness, reliability and lightness easy maintenance.
- High gain amplifier with a very low power consumption
- Fully microprocessor-controlled, menu-digital interface for diagnosis and monitoring of all parameters displayed on the LCD.
- APC (automatic power control) and foldback protection, safe and reliable operation in every environmental condition.
- Manufactured using the latest technologies for safe operation and easy maintenance.
- Works perfectly with all Sielco telemetry systems
TECHNICAL DATA
Frequency range:from 87,5 to 108 MHz
Rated RF output power:2000W
Output power ALC stability:±3%
Harmonic and spurious emissions:<70dB (harmonic), <80 dBc (spurious)
RF output connector:7/16 ”
Power supply:Single phase – 230 VAc ± 15%
Three phase – 230 or 400 Vac ± 15% with neutral line
Total consumption at rated RF power:<2800W
Operative temperature range:suggested – from 0 to 35 °C extreme – from -10 to 50 °C max (with derating)
Relative humidity:up to 95% not condensing
Dimensions (WxHxD):483x177x650 mm
Weight:21kg
