Description

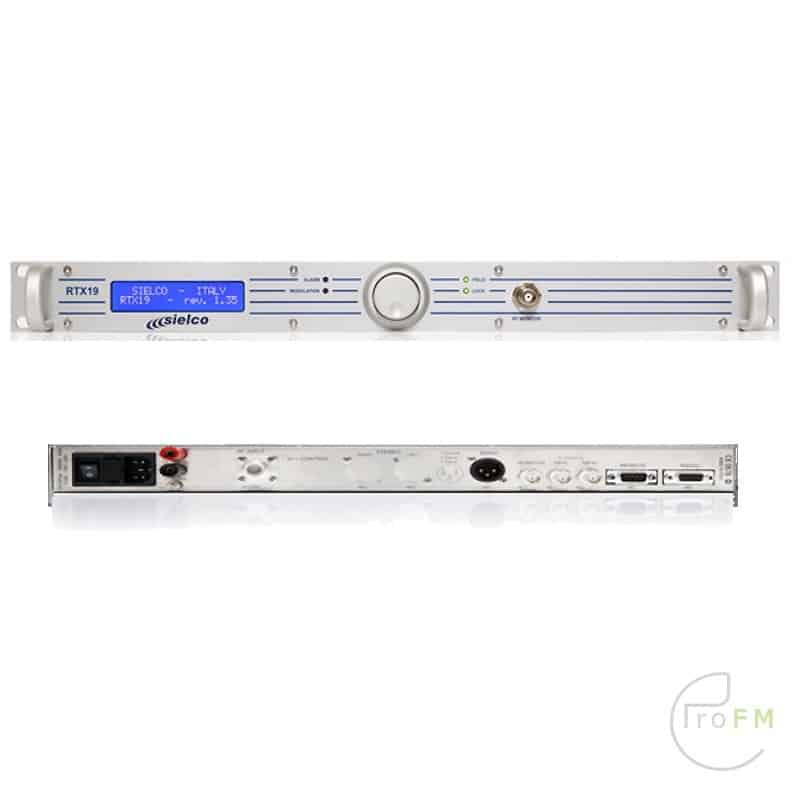

Sielco RTX19-1 FM Re-Broadcast Receiver / FM Receiver
The Re-Broadcast receiver of the Sielco RTX19-1 (87.5-108 Mhz RTX19-1) rebroadcasts the sound of the FM transmitter, with the same parameters on a different frequency. In very good quality. Useful if your broadcaster has different frequencies that overlap in the broadcast area.
It offers a fully digital readout and a complete and intuitive control via the front panel by means of a few jogs, integrated with a comprehensive programmer and remote monitoring. The Receiver is housed in an elegant, modern-looking and space-saving 19″ cabinet. Its good sensitivity, high selectivity, RF acceptance and excellent audio and composite signal recovery combine to provide full programmability. This is easily operated via the front display panel. The RTX19 is a very flexible and easy to use, reliable and maintenance free. It can also be used as a programmable monitor receiver for the studio or location, providing a very clean, high quality LF demodulated output. The Sielco RTX 19-1 will make the sound better than it sounds. the consumer tuners. You can get true broadcast quality. A top quality internal stereo decoder card can also be provided as a standard option.
Main features:
- – Front panel programmable synthesized local oscillator, with 100/10 kHz programming step, which permits easy, precise and immediate operation on site.
- – Complete front-panel or remote programmability of frequency, output levels, de-emphasis time constant, muting level and operating parameters.
- – Simple and modular internal construction facilitates stage testing and servicing. No internal tuning is required to vary operating parameters.
- – Very good screening and high RF acceptance front-end, with ability to operate in harsh, overcrowded RF environment.
- – Double conversion IF, with “”pulse count”” digital demodulator, yields very low distortion and noise, highly stable against temperature and time.
- – Linear MPX output, permits mono or stereo retransmission, without need for any subsequent stereoencoder, filter and pre-emphasis.
- – Wide pass-band modulation with phase/level compensated IF filter keeps superior stereo separation and optimum RDS re-broadcast
- – Auxiliary wider-band separate monitor output and precisely de-emphasized/filtered mono balanced output.
- – Optional high performance digital stepwise stereodecoder. (This option may also be installed as an upgrade on the field)
- – Field or condition-driven relay contact for external switchover.
- – High efficiency, low-noise switch-mode power supply, with extended 90 ÷260 Vac input range and battery backup input with recharging option
- – Complete digital control of all internal circuitry and extremely wide monitoring facilities. RS232 port for complete remote control
- – Password protection of critical data and presets
