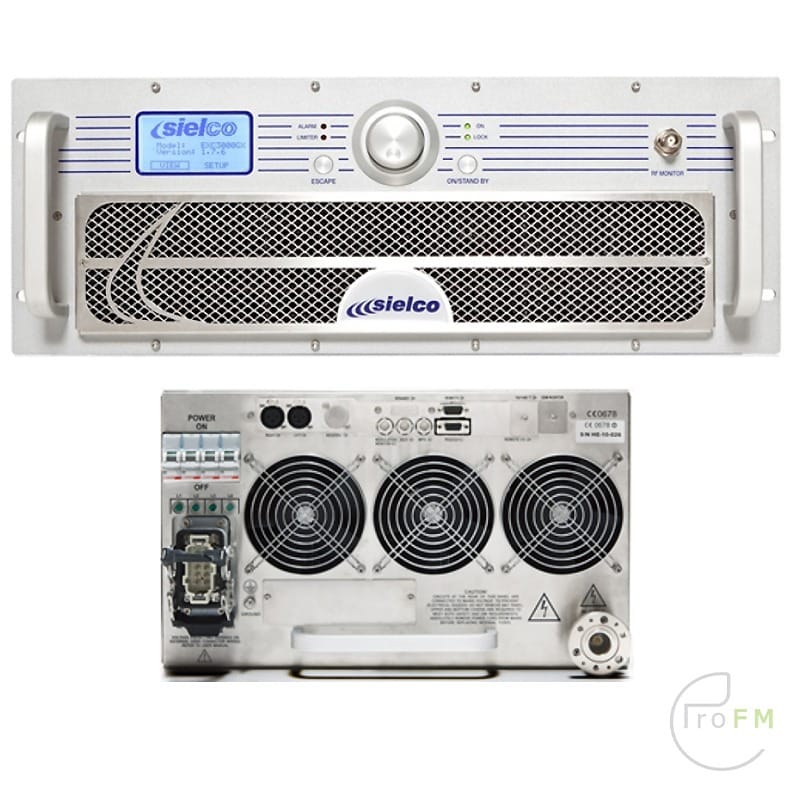

SielCo EXC5000GX FM Transmitter 5 KW / 5000 Watts

The EXC5000GX is the new 5000W transmitter of the innovative GX version that updates the consolidated transmitters and amplifiers of GT line that has been around for several years and was produced and sold in thousands of units.
With its 33 kg and compact dimensions in 4U (the first in the world), the transmitter is easy to transport and easy to install in any 19″ rack. The new basic amplifier module gives 1200W with LDMOS transistors of the latest generation that has in fact allowed to increase the power while increasing the efficiency that now is close to 70%.
In addition to the beneficial influence on the cost of the electricity, we have less heating generation and therefore greater reliability.
Many options are available on request. The most common are: the internal high quality stereo coder, the AES / EBU digital input, the remote control board via Ethernet allowing remote controlling from anywhere in the world (with devices like PC or mobile devices like smartphone), the remote control via GSM modem and RDS board.
It meets or exceeds CE, FCC or CCIR requirements.

The functions can be extended through the appropriate dedicated options.

• Functions

• Digital control
• Compact chassis
• Frequency Agile – User can select any channel from 87.6MHz to 108MHz.
• Auto Power Control – Output power is maintained at your selected level, both forward and reflected power is displayed on the front panel.
• Display – Blue colored screen allows easy viewing of all parameters in high ambient light.
• Transmitter complies with CCIR AND FCC standards.
• Comprehensive transmitter protection minimizes system downtime.
• Audio/mpx input level -3.5 ÷ 12.5 dBm adjustable
• Adjustable in 10 kHz steps
• Pre-enphasis 50 ~s ±3% (0, 25, 50, 75 ~s selectable)
• Audio/mpx input impedance 10k/600 ohm balanced
• Deviation limiter adjustable from 0 to 7dB

Technical Specifications EXC5000GX

Frequency range:from 87,5 to 108 MHz
FM modulation:75 KHz peak deviation (adjustable)
Audio and Mpx input level:from -3,5 to 12,5 dBm @ 75 KHz deviation
Auxiliary input channel level:SCA – from -12,5 to 3,5 dBm @ 7,5 KHz deviation
RDS – from -24 to -8 dBm @ 2 KHz deviation
Modulation distortion:75 KHz deviation – <0.05%, 0.02% typical
S/N ratio, mono:30÷20000Hz – >76 dB, 80 typical
CCIR – >75 dB, 79 typical
S/N ratio, stereo:30÷20000Hz – >72 dB, 77 typical
CCIR – >68 dB, 72 typical
Audio channels frequency response:30÷15000 Hz – ±0.1 dB
Pre-emphasis time constant:25/50/75 μs selectable
Rated RF output power: 5000W
Transmitter tuning steps:10/100 KHz
Output power ALC stability:±3%
Harmonic and spurious emissions:<70dB (harmonic), <80 dBc (spurious)
RF output connector:7/8″
Power supply:Single phase – 230 VAc ± 15%
Three phase – 230 or 400 Vac ± 15% with neutral line
Total consumption at rated RF power:<3900W (EXC2500GT), <6400W (EXC4000GT)
Operative temperature range:suggested – from 0 to 35 °C
extreme – from -10 to 50 °C max (with derating)
Relative humidity:up to 95% not condensing
Dimensions (WxHxD):483x177x650 mm
Weight:45kg
