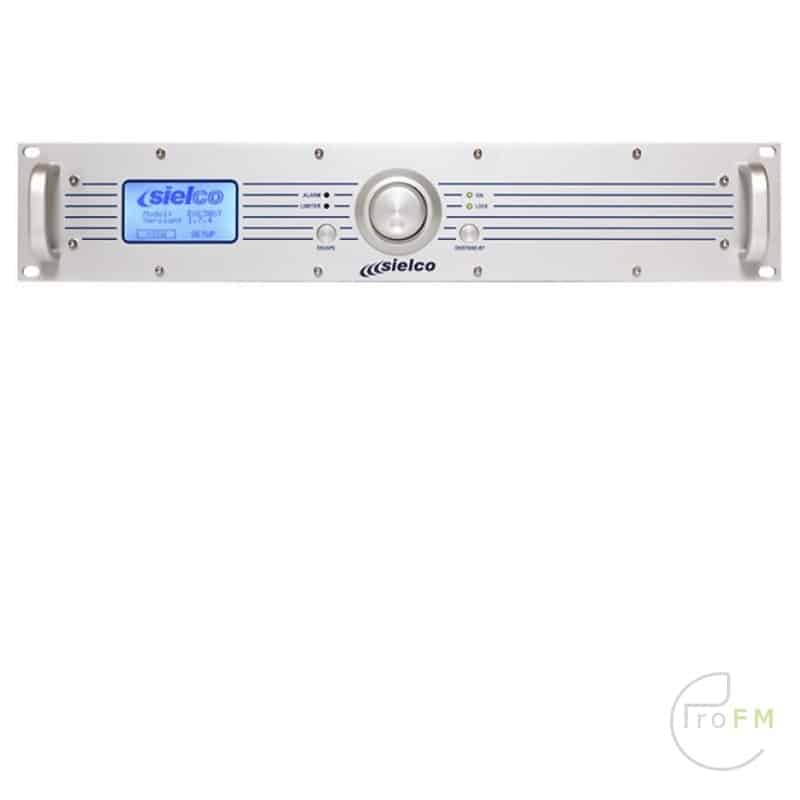

SielCo EXC30GT FM Transmitter 30 Watts

Sielco EXC30GT is the 30W rated model of the innovative GT Transmitter family appreciated for their great efficiency and versatility, due to 3 intrinsic factors: decreased weight, minimal size and reduced consumptions. As per all the GT devices, deciding to buy an EXC30GT represents a winning choice because it allows to obtain remarkable benefits for all the product life. Once bought, it ensures savings on the transport costs and rent burdens of the station where it is installed only for its small size and weight. Even more important, also during its normal job it pays back day by day, thanks to the lowest electrical costs of its class which minimize the electric bill.

EXC30GT is convenient also at the moment of the installation: it is operative in a blink and it is easy to set up thanks to an intuitive control interface – common to all GT models – equipped of a detailed LCD graphic display, a multifunction practical knob and few other buttons. This remarkable basic flexibility can be even increased by other important options, as the Telemetry / Remote Control System possible through GSM cellular networks, the Ethernet connectivity with SNMP protocol, the high quality Stereo Encoder, the Digital Audio input conforming to the AES/EBU directive and the RS232/485 Serial Remote Control ports which enable an easier integration with other machines in a system.

The modern and attractive shape of GT transmitters reflects the trustable modular project philosophy aimed to reduce the number of maintenance interventions and make them easier to minimize the relevant costs. All that is completed by an efficient Sielco post-sale service, ensuring the best trust for the final user. For all the product life.

Features

* Digital control
* Compact Chasis
* Frequency Agile – User can select any channel from 87.6 MHz to 108MHz.
* Auto Power Control – Output power is maintained at your selected level, both forward and reflected power are diplayed on the front panel.
* Display -Blue coloredscreen provide easy viewing off all parameters under high ambient light.
* Transmitter fulfils CCIR AND FCC standards.
* Extensive transmitter protection minimizes system downtime.
*Audio/mpx input level -3.5 ÷ 12.5 dBm adjustable
*Adjustable at 10kHz steps
*Pre-enphasis 50 ~s ±3% (0, 25, 50, 75 ~s selectable)
*Audio/mpx input impedance 10k/600 ohm balanced
*Deviation limiter from 0 to 7dB adjustable

Frequency range : from 87,5 to 108 MHz
Transmitter tuning steps :10/100 KHz
Frequency stability / error : ± 250Hz over temperature range – 100Hz/year
Modulation :FM  75 KHz peak, adjustable (180KF3E/256KF8E)
Audio and Mpx input level : from -3,5 to 12,5 dBm @ 75 KHz deviation
Auxiliary input channel level
SCA :from -12,5 to 3,5 dBm @ 7,5 KHz deviation
RDS : from -24 to -8 dBm @ 2 KHz deviation
Modulation distortion : 75 KHz dev. <0.03%, 0.02% typical
S/N ratio, mono : 30÷20000Hz  >76 dB, 83 typical
CCIR : >75 dB, 79 typical
S/N ratio, stereo : 30÷20000Hz  >72 dB, 77 typical
CCIR : >68 dB, 72 typical
Audio channels frequency response : 30÷15000 Hz ±0.1 dB
MPX input frequency response : 30÷100000 Hz  ±0.1 dB
Pre-emphasis time constant : 25/50/75 μs selectable
Rated RF output power :30W
Output power ALC stability : ±3%
Harmonic and spurious emissions :<70dB (harmonic), <80 dBc (spurious)
RF output connector : N
Power supply : Single phase 115÷230 Vac 10/-15%
Three phase  N.A.
Total consumption at rated RF power: <550W (EXC300GX)
Operative temperature range  suggested  from 0 to 35 °C
extreme  from -10 to 45 °C (50°C max with derating)
Relative humidity : up to 95% not condensing
Dimensions (WxHxD) : 483x88x395 mm
Weight : 8kg
