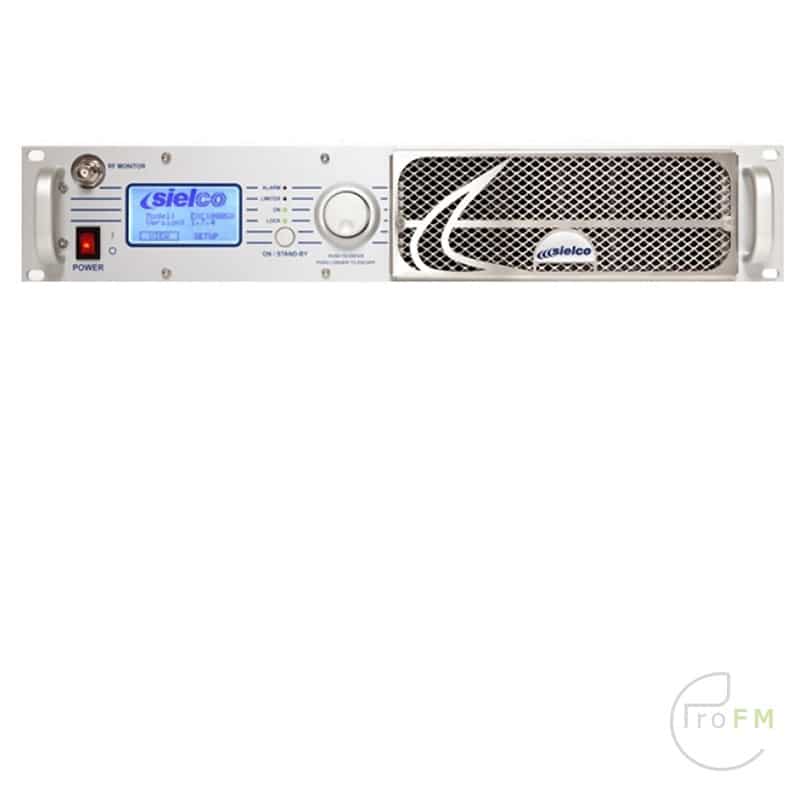

SielCo EXC1000GX FM Transmitter 1 KW / 1000 Watts

Sielco EXC1000GX model is the 1000W compacttransmitter of the innovative GX family produced by Sielco. It is appreciated for the great efficiency and versatility due to three main reasons: LIGHT weight, MINIMUM size and LOW consumption. To buy an EXC1000GX, as anyone other model of the GX line, means to make a winning choice, to enjoy all the relevant advantages during all the life of the product and to spare money: less transport costs, less needed space to install it and the lowest energy consumption during the work.

The Sielco EXC1000GX is simple to set up: very easy to configure thanks to the intuitive human interface equipped with an elegant LCD graphic display, a multifunction jog control and only a few other control buttons. The high flexibility of this compact transmitter could be even increased through the use of important options like: telemetry/remote control systems, Ethernet connection with SNMP protocol, high quality stereo encoder, audio digital board in accordance with AES/EBU directive and RS232/485 serial port to enable an easier integration with other instruments. The modern and attractive design of our GX transmitters reflects the state-of-the-art technology of this trustworthy model that requires a few maintenance and that allows to spare time and money.

Features

• Digital control
• Compact Chasis
• Frequency Agile – User can select any channel from 87.6 MHz to 108MHz.
• Auto Power Control – Output power is maintained at your selected level, both forward and reflected power are diplayed on the front panel.
• Display -Blue coloredscreen provide easy viewing off all parameters under high ambient light.
• Transmitter fulfils CCIR AND FCC standards.
• Extensive transmitter protection minimizes system downtime.
• Audio/mpx input level -3.5 ÷ 12.5 dBm adjustable
• Adjustable at 10kHz steps
• Pre-enphasis 50 ~s ±3% (0, 25, 50, 75 ~s selectable)
• Audio/mpx input impedance 10k/600 ohm balanced
• Deviation limiter from 0 to 7dB adjustable

Frequency range:from 87,5 to 108 MHz
Transmitter tuning steps:10/100 KHz
FM modulation:75 KHz peak deviation (adjustable)
Audio and Mpx input level:from -3,5 to 12,5 dBm @ 75 KHz deviation
Auxiliary input channel level:SCA – from -12,5 to 3,5 dBm @ 7,5 KHz deviation
RDS – from -24 to -8 dBm @ 2 KHz deviation
Modulation distortion:75 KHz dev. – <0.03%, 0.02% typical
S/N ratio, mono:30÷20000Hz – >76 dB, 83 typical
CCIR – >75 dB, 79 typical
S/N ratio, stereo:30÷20000Hz – >72 dB, 77 typical
CCIR – >68 dB, 72 typical
Audio channels frequency response:30÷15000 Hz – ±0.1 dB
MPX input frequency response:30÷100000 Hz – ±0.1 dB
Pre-emphasis time constant:0/50/75 μs selectable
Rated RF output power:1000W
Output power ALC stability:±3%
Harmonic and spurious emissions:<70dB (harmonic), <80 dBc (spurious)

RF output connector:7/16 DIN
Power supply:Single phase – 230 VAc ± 10%
Three phase – N.A.
Total consumption at rated RF power:2300W typ. 2800W max
Operative temperature range:suggested – from 0 to 35 °C extreme – from -10 to 55 °C max (with derating)
Relative humidity:up to 95% not condensing
Dimensions (WxHxD):483x88x585 mm
Weight:15kg
