Description

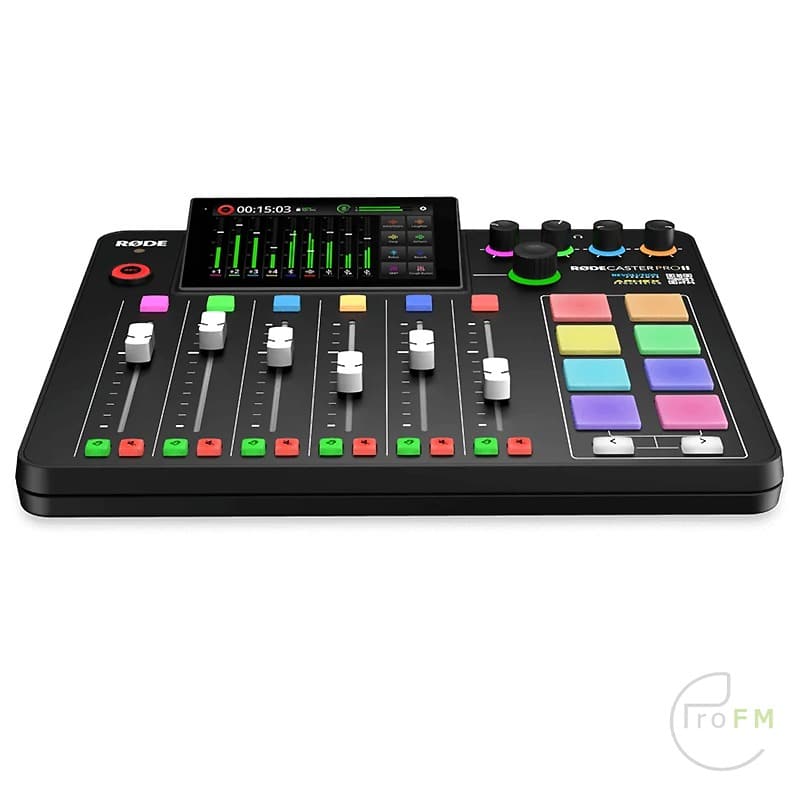

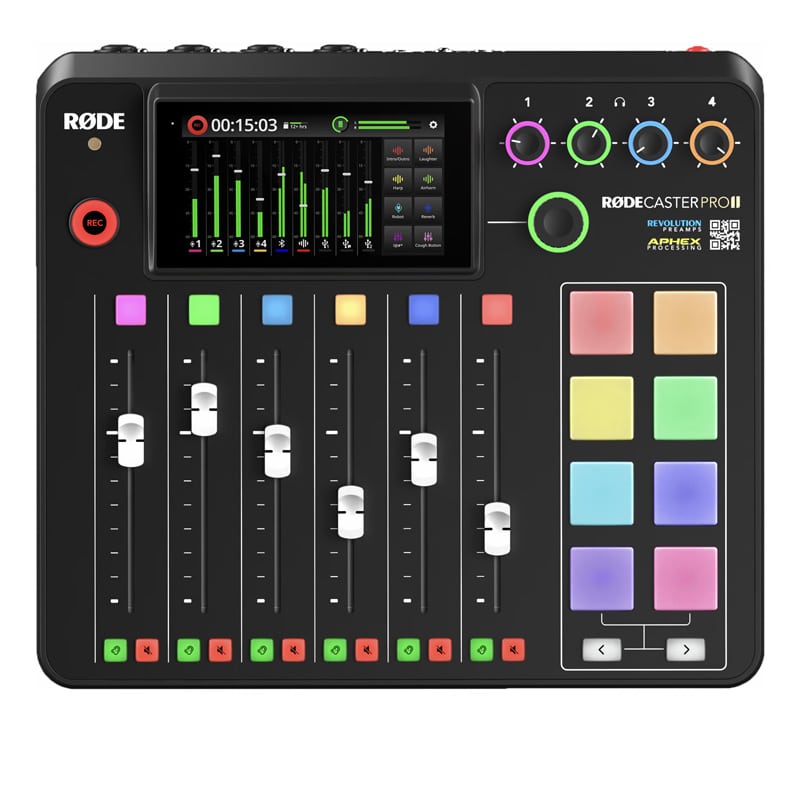

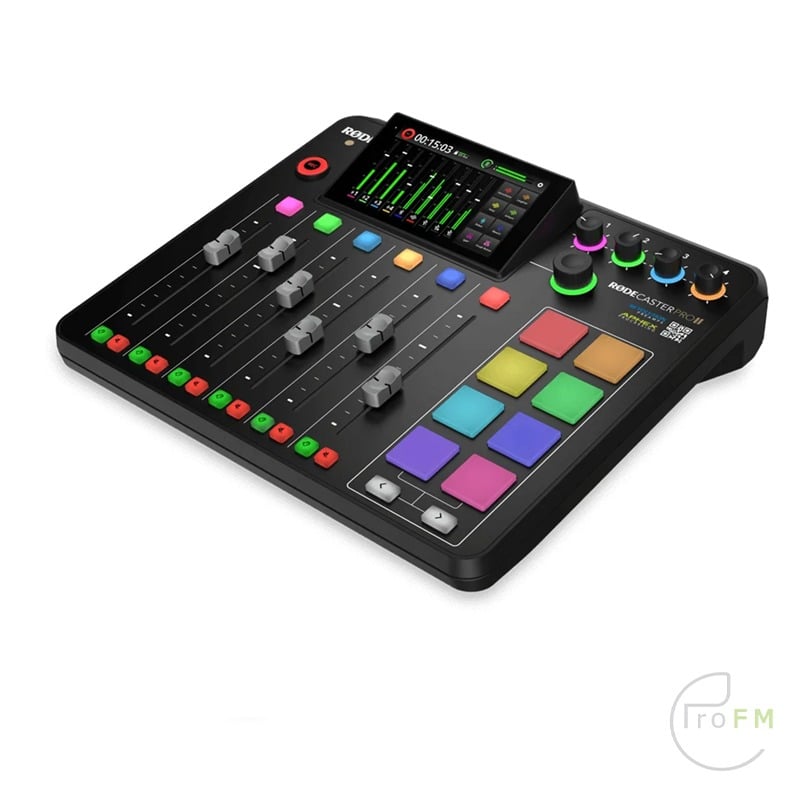

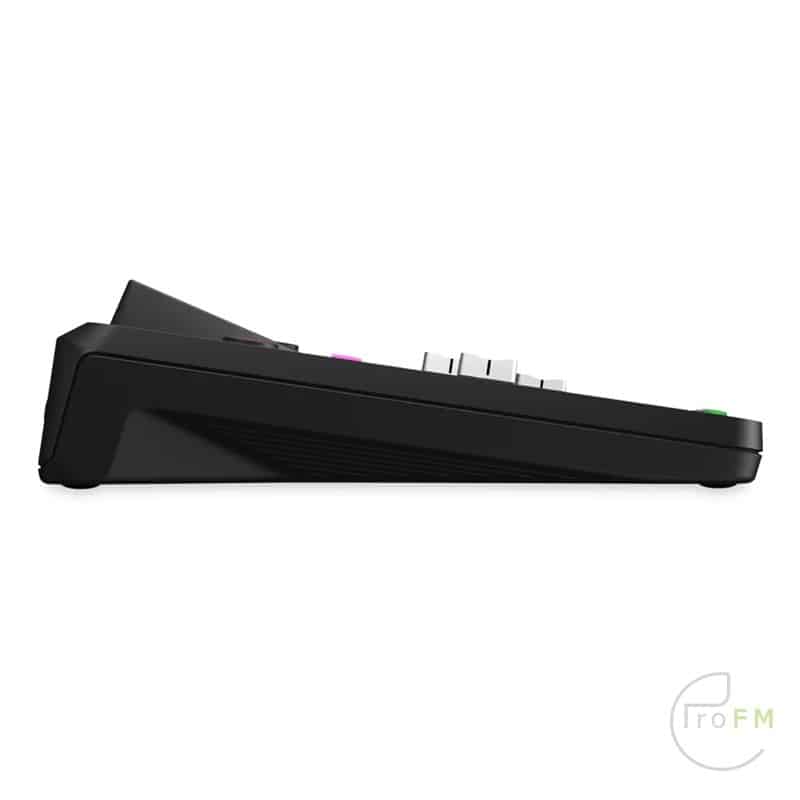

Rode RodeCaster Pro 2 Podcast Mixer
Acoustic & Electrical
Mechanical
Frequency Range
Mic Inputs: 20Hz – 20kHz Monitor Outputs: 20Hz – 20kHz
Microphone Input Impedance
4KΩ
Instrument Input Impedance
1MΩ
Preamplifier Gain Range
0 – 76dB
Equivalent Input Noise
-131.5dBV (A-weighted)
Line Output Maximum Level
4dBu
Headphone Output Power
250mW
Power Requirements
30W USB-C PD (15V, 2A)

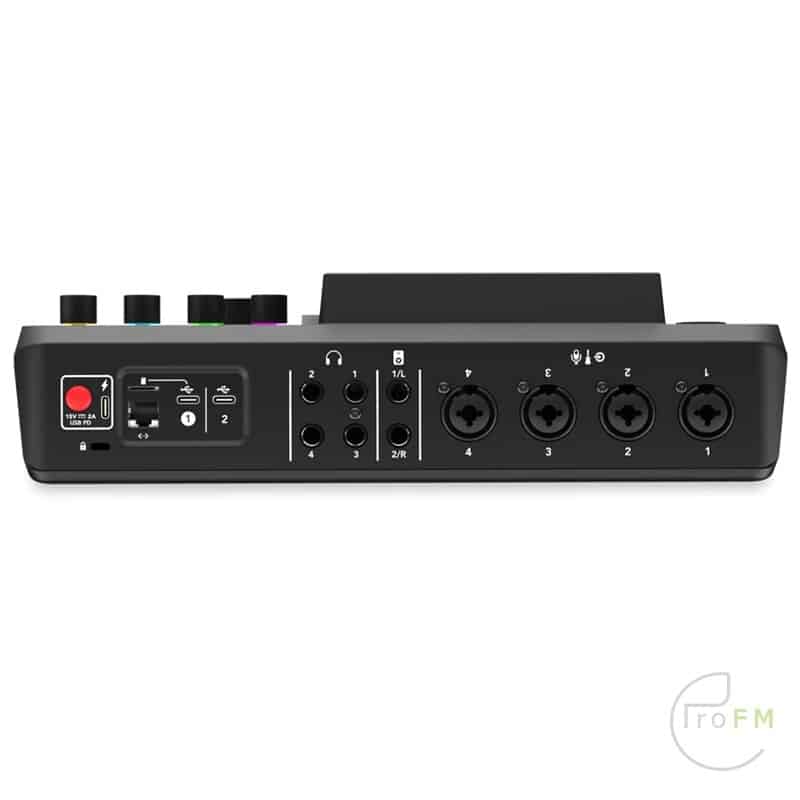

Analogue Audio Input Connectivity
4 x combo jack inputs (microphone, line, instrument)
Analogue Audio Output Connectivity
2 x balanced line output, 4 x headphone output
Bluetooth Connectivity
Bluetooth audio with Music and Headset profile (wide band speech)
USB Interface 1
1 x 2-in/16-out multichannel device, 1 x 2-in/2-out with mix-minus
USB Interface 2
1 x 2-in/2-out with mix-minus
Bit Depth
24bit
Sample Rate
48kHz
Recording Storage
microSDHC, microSDXC, USB-C removable drive (exFAT – minimum 100MB/s)
Data transfer
USB 3.0 SD card reader 130MB/s
Network Connectivity
Wifi 802.11g/n/ac 2.4GHz and 5GHz, Ethernet 100/1000
OS Requirements
macOS 10.15 or later, Windows 10 Version 1803 or later, Windows 11
Internal Storage
4GB (SMART pads)
