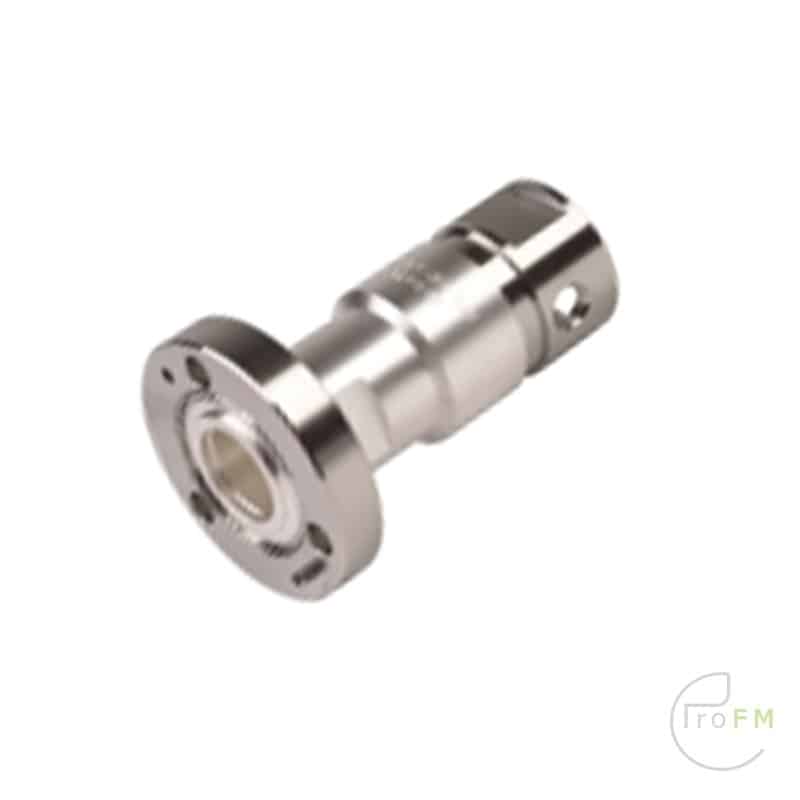

RFS Cellflex LCF78-50 – 7/8 EIA Flange Connector

 182,00

RFS Cellflex LCF78-50 – 7/8 EIA Flange Connector

Whether you’re establishing new connections or upgrading your current network setup using LCF78-5-0 coax cable, this connector is the ideal choice.
Category: SKU: 1165 Tag:

Description

RFS Cellflex LCF78-50 – 7/8 EIA Flange Connector

Unlock seamless connectivity with this Flange Connector, designed to elevate your network performance. Crafted for excellence, this connector ensures a reliable connection between your devices and the high-quality LCF78-50 cable, guaranteeing uninterrupted data transmission. Here’s why it stands out.

Whether you’re establishing new connections or upgrading your current network setup, this Connector is the ideal choice. Its robust construction, combined with advanced technology, guarantees optimal performance, making it a valuable asset for telecommunications professionals. Experience enhanced connectivity and seamless data transmission with this innovative connector from RFS.

  • RFS Cellflex LCF78-50 7-8′ EIA Flange connector for LCF78-50 Cable
  • Connector type EIA Cable type HCA 7/8″
  • Orientation Straight Connector
  • mount Toolscrew
  • Connection method Plast



Part number BN 97 91 28
Connector type 7/8” EIA
Version CAF®
Impedance 50 Ω
Frequency range 0 – 1 GHz 1 – 2 GHz 2 – 3 GHz
VSWR ≤ 1.02 ≤ 1.03 ≤ 1.06
Material and surface
Inner conductor copper alloy silver-plated
Outer conductor copper alloy silver-plated
Other metal parts copper alloy bright nickel-plated
Insulation PTFE
Sealing silicone rubber, PLAST 2000®
Degree of protection IP68 (pressure-tight up to 4bar/400kPa)
Cable compatibility RFS HCA 78-50
Standards IEC 60339
Installation instructions M30197
Weight approx. 0.6 kg
Included in delivery protective cap, cover, installation instructions

Description

RFS Cellflex LCF78-50 – 7/8 EIA Flange Connector

Unlock seamless connectivity with this Flange Connector, designed to elevate your network performance. Crafted for excellence, this connector ensures a reliable connection between your devices and the high-quality LCF78-50 cable, guaranteeing uninterrupted data transmission. Here’s why it stands out.

Whether you’re establishing new connections or upgrading your current network setup, this Connector is the ideal choice. Its robust construction, combined with advanced technology, guarantees optimal performance, making it a valuable asset for telecommunications professionals. Experience enhanced connectivity and seamless data transmission with this innovative connector from RFS.

  • RFS Cellflex LCF78-50 7-8′ EIA Flange connector for LCF78-50 Cable
  • Connector type EIA Cable type HCA 7/8″
  • Orientation Straight Connector
  • mount Toolscrew
  • Connection method Plast



Specifications

Part number BN 97 91 28
Connector type 7/8” EIA
Version CAF®
Impedance 50 Ω
Frequency range 0 – 1 GHz 1 – 2 GHz 2 – 3 GHz
VSWR ≤ 1.02 ≤ 1.03 ≤ 1.06
Material and surface
Inner conductor copper alloy silver-plated
Outer conductor copper alloy silver-plated
Other metal parts copper alloy bright nickel-plated
Insulation PTFE
Sealing silicone rubber, PLAST 2000®
Degree of protection IP68 (pressure-tight up to 4bar/400kPa)
Cable compatibility RFS HCA 78-50
Standards IEC 60339
Installation instructions M30197
Weight approx. 0.6 kg
Included in delivery protective cap, cover, installation instructions

Additional information

Weight 0,6 kg
Dimensions 10 × 10 × 10 cm
