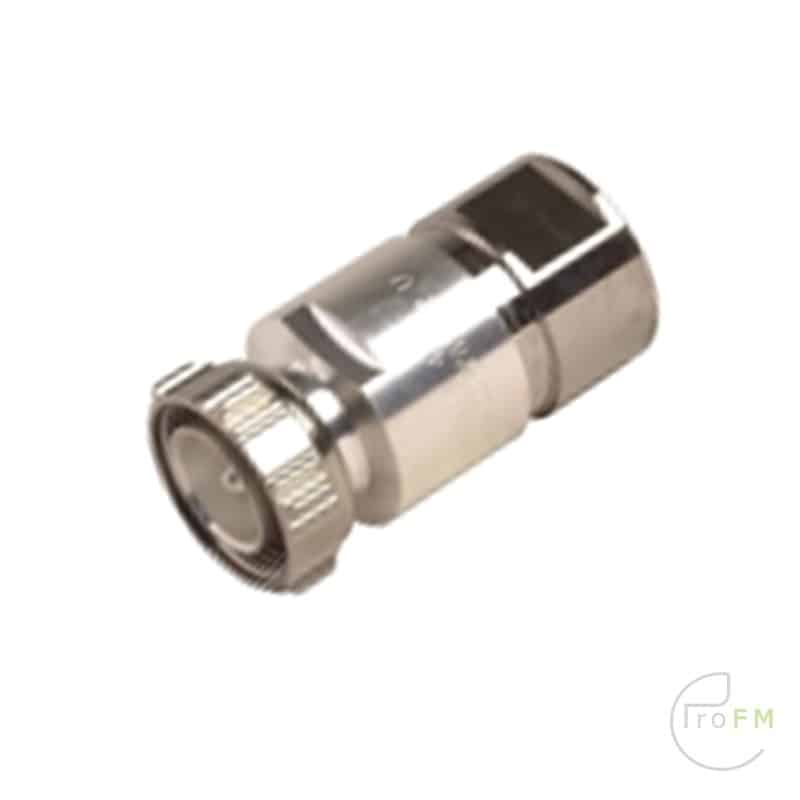

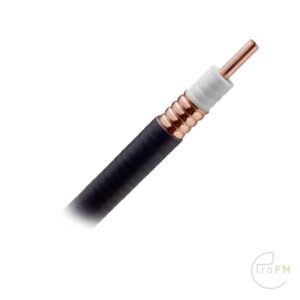

RFS Cellflex LCF78-50 – 7/16 DIN Male Connector
FEATURES / BENEFITS
- Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
- Two-piece design i.e. visual inspection of interlocking leads to improved installation security
- OMNI FIT™ concept i.e. streamlined order management and reduced stock level
- Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
- Unique NiTin plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
- Multi-thread (Tristart) design i.e. simplified and accelerated tightening process
- RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis
| Connector type | 7/16 |
|---|---|
| Cable type | HCA 7/8″ |
| Orientation | Straight |
| Gender | Male |
| Connector mount | Toolscrew |
| Connection method | Plast |
Part number BN 49 18 18
Connector type 7-16 plug
Version CAF®
Impedance 50 Ω
Frequency range 0 – 1 GHz 1 – 2 GHz 2 – 3 GHz
VSWR ≤ 1.02 ≤ 1.03 ≤ 1.06
Material and surface
Inner conductor copper alloy silver-plated
Outer conductor copper alloy silver-plated
Other metal parts copper alloy bright nickel-plated
Insulation PTFE
Sealing silicone rubber, PLAST 2000®
Degree of protection IP68 (pressure-tight up to 4 bar/400kPa)
Cable compatibility RFS HCA 78-50
Standards IEC 61169-4
Installation instructions M30197
Weight approx. 0.32 kg
Included in delivery cover, installation instructions
