RFS Cellflex LCF158-50 – 7/8 EIA Flange Connector

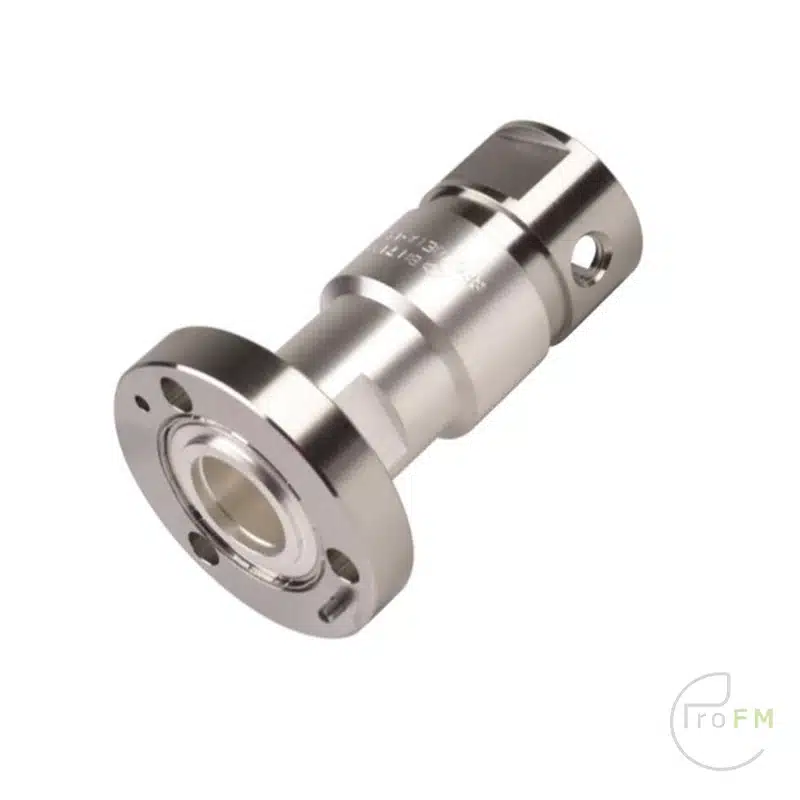

RFS 7/8 EIA Flange connector for LC158-50 coax cable
FEATURES / BENEFITS
- Single-piece design for Fast and Easy Installation
Reliable and simple attachment avoids unnecessary connector adjustments and provides outstanding performance every time. Saves time and provides cost savings. - Robust Mechanical Design
Low and consistent intermodulation performance guarantees outstanding system sensitivity. - Excellent Electrical Performance
Consistent and repeatable low VSWR improves overall system performance and margin and reduces mismatch losses - Totally Waterproof according to IP 68
Assures safe, long term operation in the harshest of Environments.
| ||||||||||||||||||||||||||||||||||||
| ||||||||||||
| ||||||||||||||||||
| ||||||||||||
| |||||||||
- Description
-
RFS Cellflex LCF158-50 – 7/8 EIA Flange Connector
RFS 7/8 EIA Flange connector for LC158-50 coax cable
FEATURES / BENEFITS
- Single-piece design for Fast and Easy Installation
Reliable and simple attachment avoids unnecessary connector adjustments and provides outstanding performance every time. Saves time and provides cost savings. - Robust Mechanical Design
Low and consistent intermodulation performance guarantees outstanding system sensitivity. - Excellent Electrical Performance
Consistent and repeatable low VSWR improves overall system performance and margin and reduces mismatch losses - Totally Waterproof according to IP 68
Assures safe, long term operation in the harshest of Environments.
- Single-piece design for Fast and Easy Installation
- Specifications
-
GENERAL SPECIFICATIONS Transmission Line Type Coaxial Cable Cable Size 1-5/8 Cable Type Foam Dielectric Model Series LCF158-50 RCF158-50 Connector Interface 7/8″ EIA Connector Type RAPID FIT™ Sealing Method Sealing compound ¹ ) Gender None ELECTRICAL SPECIFICATIONS 3rd Order IM Product @ 2×20 Watts dBc <-156 Maximum Frequency GHz 2.75 VSWR, Return Loss VSWR (dB) 0 < f ≤ 1.0 GHz: 1.02 (40)
1.0 < f ≤ 2.7 GHz: 1.04 (34.1)
2.7 < f ≤ 3.7 GHz: 1.06 (30.7)MECHANICAL SPECIFICATIONS Plating Outer/Inner Silver/Silver Length mm (in) 105 (4.1) Outer Diameter mm (in) 57.2 (2.3) Inner Contact Attachment Spring Finger Outer Contact Attachment Spring Finger ACCESSORIES Wrench size front mm (in) Poly Hook Spanner Wrench Wrench size rear mm (in) Poly Hook Spanner Wrench Trimming Tool TRIM-Series-A TESTING AND ENVIRONMENTAL Waterproof Level IP68 Sealing Volume, cm3 (ounces) cm³ (ounces) 20 (0.68)
