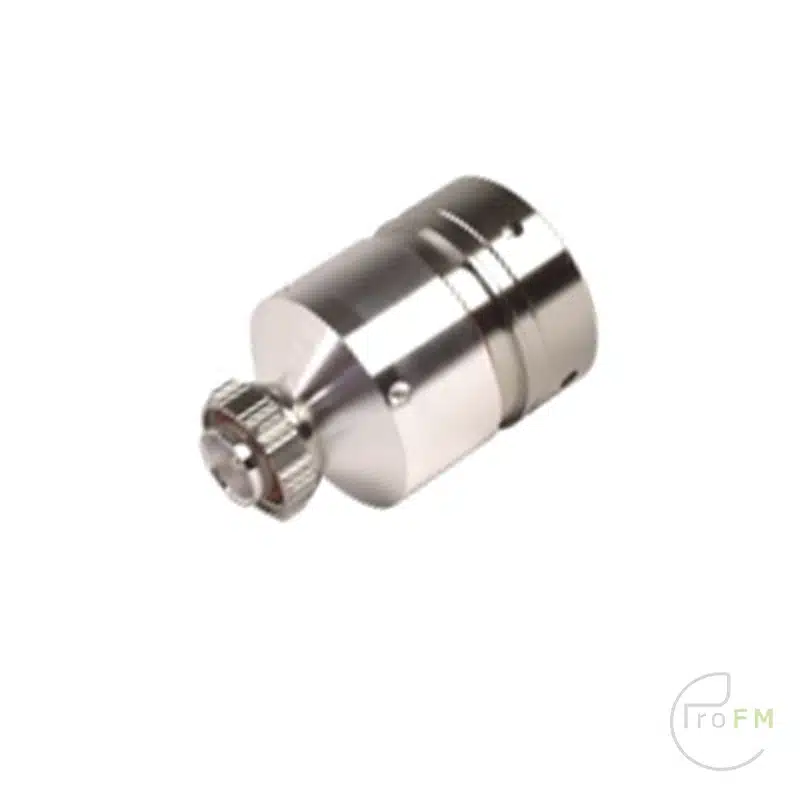

RFS Cellflex LCF158-50 – 7/16 DIN Male Connector
FEATURES / BENEFITS
- Cost effective two-piece design for safe and easy installation
- Compatible with copper and aluminium cable types i.e. one connector for both outer conductor materials eliminates the risk of faulty connector installation and helps to keep inventory down
- Robust mechanical design for low and consistent intermodulation performance i.e. keeps the mobile network performance up reduces the number of dropped calls and avoids revenue losses
- Superior electrical performance for consistent and repeatable VSWR i.e. ensure network system performance
- Waterproof to IP 68 i.e. no downtime risk, secures revenue
- RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis
| Connector type | 7/16 |
|---|---|
| Cable type | LCF158-50 |
| Orientation | Straight |
| Gender | Male |
| Connector mount | Toolscrew |
| Connection method | Plast |
RFS Cellflex LCF158-50 Rapid Fit 7/16 DIN Male connector for LCF158-50 coax cable.
Part number BN 84 48 44
Connector type 7-16 plug
Version CAF®
Impedance 50 Ω
Frequency range 0 – 1 GHz ≤ 1 – 2.2 GHz ≤ 2.2 – 2.75 GHz
VSWR ≤ 1.02 ≤ 1.03 ≤ 1.06
Material and surface
Inner conductor copper alloy silver-plated
Outer conductor copper alloy silver-plated
Other metal parts copper alloy bright nickel-plated
Insulation PTFE
Sealing silicone rubber, PLAST 2000®
Degree of protection IP68 (mated)
Cable compatibility RFS LCF 158-50 A
Standards IEC 61169-4
Installation instructions M30798
Weight approx. 0.6 kg
Included in delivery cover, installation instructions
