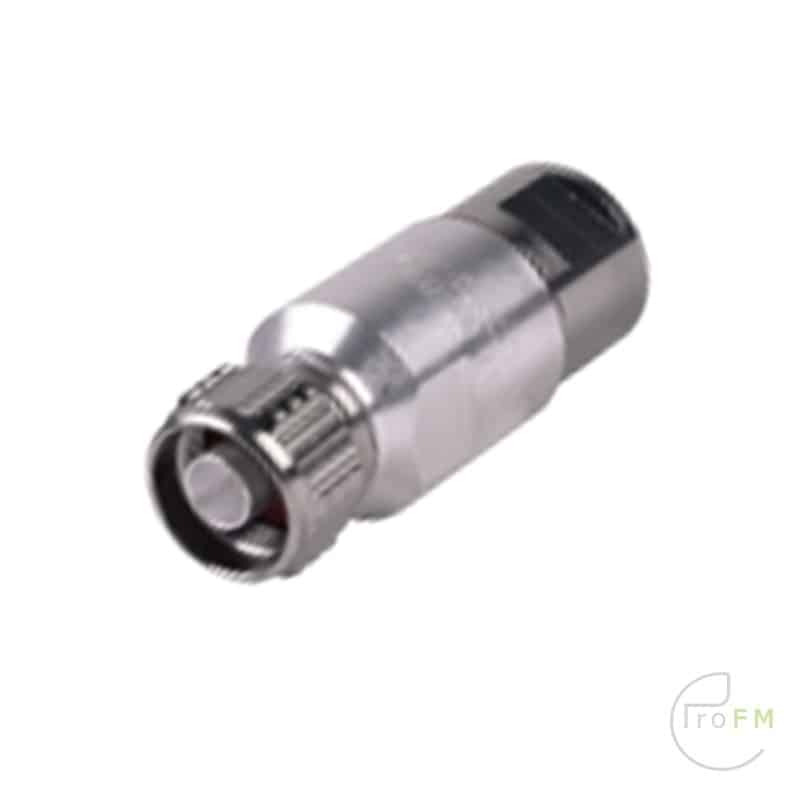

Connector N-Male LCF12 Plast
The Connector N-Male LCF12 Plast is designed for seamless integration with Cellflex 12-50 coaxial cable. Engineered for precision, this connector ensures reliable signal transmission, making it ideal for various RF applications.
| Connector type | N |
|---|---|
| Cable type | LCF12-50 |
| Orientation | Straight |
| Gender | Male |
| Connector mount | Toolscrew |
| Connection method | Plast |
Connector type N plug
Version CAF®
Impedance 50 Ω
Frequency range 0 – 1 GHz 1 – 2.7 GHz 2.7 – 3.8 GHz 3.8 – 6 GHz
VSWR ≤ 1.02 ≤ 1.03 ≤ 1.08 ≤ 1.1
Material and surface
Inner conductor copper alloy silver-plated
Outer conductor copper alloy silver-plated
Other metal parts copper alloy bright nickel-plated
Insulation PTFE, PE
Sealing silicone rubber, EPDM, heat-shrinkable adhesive tubing
Degree of protection IP68 (mated)
Cable compatibility RFS LCF 12-50
Standards IEC 61169-16
Installation instructions M30749
Weight approx. 0.12 kg
Included in delivery: installation instructions
