Description

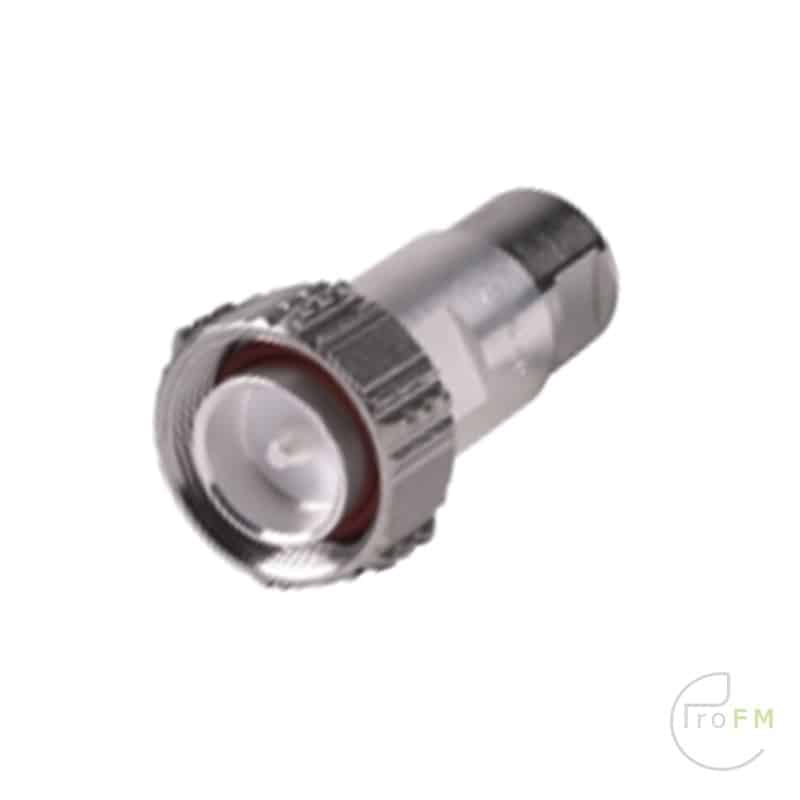

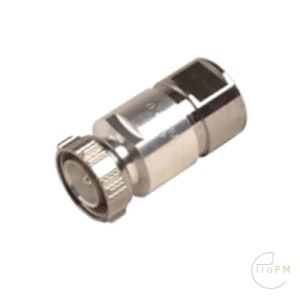

RFS Cellflex LCF12-50 – 7/16 Male Connector
Optimize your RF connections with this 7/16 DIN Connector Male, ideal for use with 1/2″ foam cables like Cellflex LCF12-50. Engineered for precision, this connector ensures reliable signal transmission in various applications. Its compatibility and durability make it a trusted choice for telecommunications, broadcasting, and RF environments. With easy installation and robust construction, trust in RFS for seamless connectivity that meets industry standards.
| Connector type | 7/16 |
|---|---|
| Cable type | LCF12-50 |
| Orientation | Straight |
| Gender | Male |
| Connector mount | Toolscrew |
| Connection method | O-ring |
Part number BN 84 73 89
Connector type 7-16 plug
Version CAF®
Impedance 50 Ω
Frequency range 0 – 1 GHz 1 – 2.7 GHz 2.7 – 3.8 GHz 3.8 – 6 GHz
VSWR ≤ 1.02 ≤ 1.03 ≤ 1.06 ≤ 1.1
Material and surface
Inner conductor copper alloy silver-plated
Outer conductor copper alloy silver-plated
Other metal parts copper alloy bright-nickel-plated
Insulation PTFE, PE
Sealing silicone rubber, EPDM, heat-shrinkable adhesive tubing
Degree of protection IP68 (mated)
Cable compatibility RFS LCF 12-50
Standards IEC 61169-4
Installation instructions M30749
Weight approx. 0.15 kg
Included in delivery sealing, installation instructions
- Description
-
RFS Cellflex LCF12-50 – 7/16 Male Connector
Optimize your RF connections with this 7/16 DIN Connector Male, ideal for use with 1/2″ foam cables like Cellflex LCF12-50. Engineered for precision, this connector ensures reliable signal transmission in various applications. Its compatibility and durability make it a trusted choice for telecommunications, broadcasting, and RF environments. With easy installation and robust construction, trust in RFS for seamless connectivity that meets industry standards.
Connector type 7/16 Cable type LCF12-50 Orientation Straight Gender Male Connector mount Toolscrew Connection method O-ring - specifications
-
Part number BN 84 73 89
Connector type 7-16 plug
Version CAF®
Impedance 50 Ω
Frequency range 0 – 1 GHz 1 – 2.7 GHz 2.7 – 3.8 GHz 3.8 – 6 GHz
VSWR ≤ 1.02 ≤ 1.03 ≤ 1.06 ≤ 1.1
Material and surface
Inner conductor copper alloy silver-plated
Outer conductor copper alloy silver-plated
Other metal parts copper alloy bright-nickel-plated
Insulation PTFE, PE
Sealing silicone rubber, EPDM, heat-shrinkable adhesive tubing
Degree of protection IP68 (mated)
Cable compatibility RFS LCF 12-50
Standards IEC 61169-4
Installation instructions M30749
Weight approx. 0.15 kg
Included in delivery sealing, installation instructions
