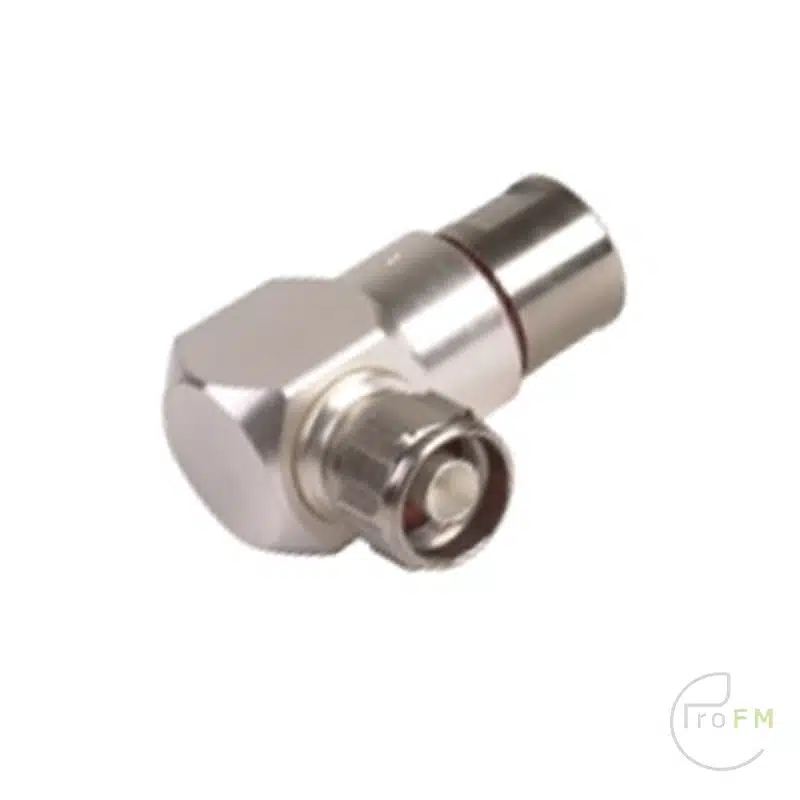

Name: RFS Cellflex LCF12-50 - N-Male Connector Right Angle
Brand: RFS
SKU: 1163
Availability: InStock

Description

Description
Specifications

RFS Cellflex LCF12-50 – N-Male Connector Right Angle

Upgrade your RF systems effortlessly with this Right Angle N-Male Connector, tailor-made for LCF12-50 coaxial cables. Engineered with precision, this connector guarantees optimal performance, ensuring seamless broadcast transmission. Its right-angle design offers versatility, making it perfect for installations in confined spaces where conventional connectors struggle to fit.


Connector type	N
Cable type	LCF12-50
Orientation	Right Angle
Gender	Male
Connector mount	Toolscrew
Connection method	Plast

Part number BN 87 01 67
Connector type N plug
Version CAF®
Impedance 50 Ω
Frequency range 0 – 1 GHz 1 – 2 GHz 2 – 2.7 GHz 2.7 – 3.8 GHz
VSWR ≤ 1.04 ≤ 1.06 ≤ 1.08 ≤ 1.1
Material and surface
Inner conductor copper alloy silver-plated
Outer conductor copper alloy silver-plated
Other metal parts copper alloy bright nickel-plated
Insulation PTFE
Sealing silicone rubber, PLAST 2000®
Degree of protection IP68 (mated)
Cable compatibility RFS LCF 12-50
Standards IEC 61169-16
Installation instructions M30596
Weight approx. 0.16 kg
Included in delivery cover, installation instructions

Description

RFS Cellflex LCF12-50 – N-Male Connector Right Angle


Connector type	N
Cable type	LCF12-50
Orientation	Right Angle
Gender	Male
Connector mount	Toolscrew
Connection method	Plast

Specifications

Additional information

Weight	0,2 kg
Dimensions	10 × 10 × 5 cm
