Description

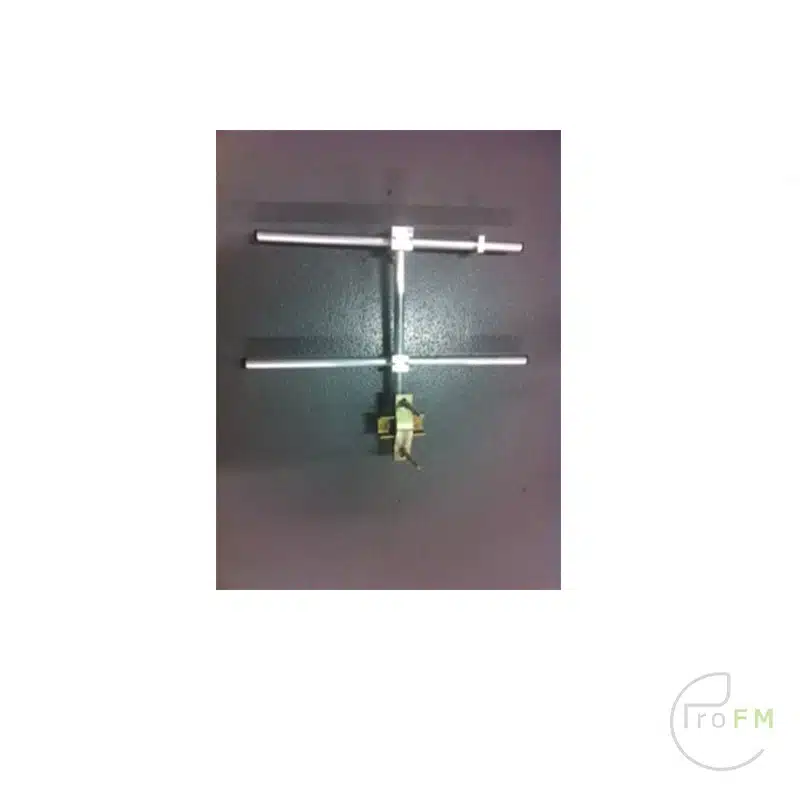

ProFM STLTY2 Tuned 2 Element Yagi STL – DAB Antenna
This narowband yagi STL antenna is constructed of alluminium or stainless steel.
Because of its construction it can support up to 500w with connector “”N””,
This type of antenna is suitable for directional (100 degree ) service for stl service.
We can offer this antenna in the frequency range 150- 500 Mhz so also suitable for DAB broadcast.
Type: 2-element yagi, directional, Tuned high gain
– Frequency range @SWR ≤ 1.5: 150-500 MHz
_ Bandwith: 2 Mhz
– Impedance: 50Ω
– Radiation (H-plane): beam width @ -3 dB = 100° @ center freq.
– Radiation (E-plane): beam width @ -3 dB = 65° @ center frequency.
– Front to back ratio: ≥ 16 dB
– Polarization: linear vertical or horizontal
– Gain: 5 dB
– Maximum Power (CW) @ 30°C: 500 Watts
– Earth protection: all metal parts are DC grounded, the inner conductor has a DC short circuit
– Connector: N-female
GAIN: 5 dB (half wave dipole)
TYPICAL V.S.W.R: <1.2:1
MAX. POWER: MEDIUM POWER 500 W
CONNECTOR TYPE: N
WIND LOAD: Kg. 40 Km
MATERIAL: ALUMINIUM OR STAINLESS STEEL
MOUNTING: WHITH STANDARD CLAMP 50-110 mm .
