Description

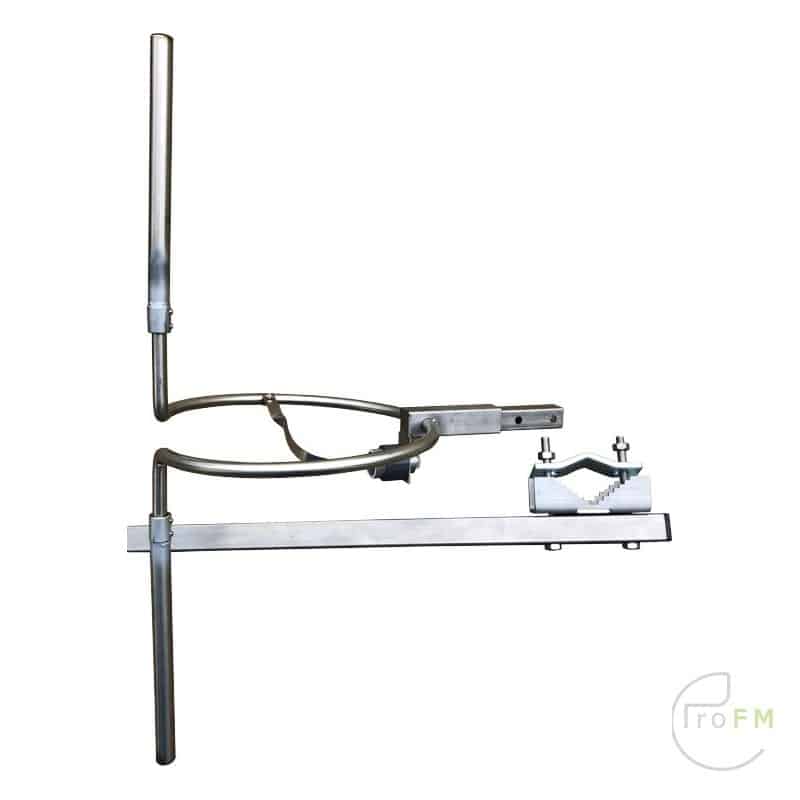

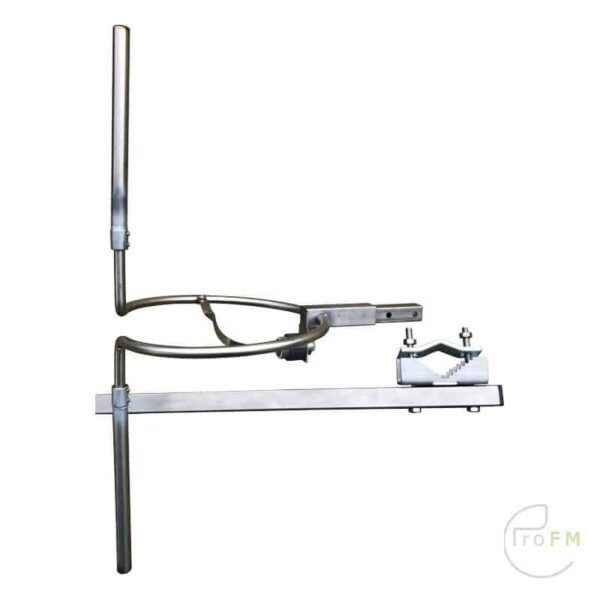

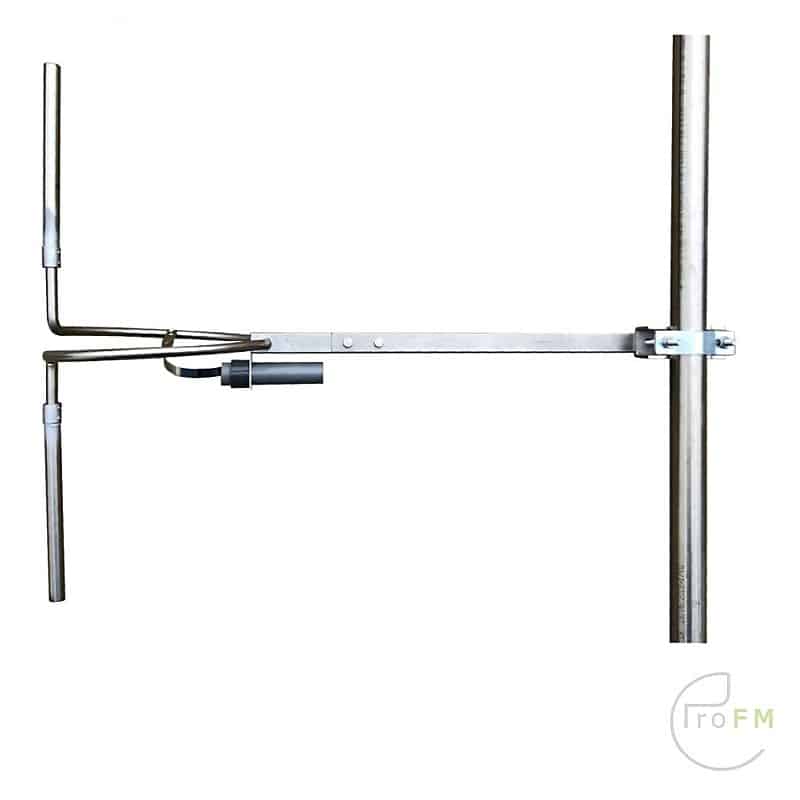

ProFM ECOCIRCTD Circulair FM Antenna INOX
This very sturdy antenna was created to be used as stand alone or as an element of a system made up of various units to make a stacked antenna array.
Demontable for economical shipping ,Special treatment Stainless steel, TIG weld Broadband ,87,5 -108 Mhz
Tunable to frequency.. Nickel plated nuts (stainless steel)to avoid stuck nuts, stainless steel screws.
Lightning protect (grounded) Omnidirectional patern, circulair polarisation
Antenna is constructed out of stainless steel and is fully demountable for easy shipping and weights around 5 kg
Model:ProFM BBDP2 Dipole
IMPEDANCE: 50 ohm
FREQUENCY RANGE: 87.5 – 108 Mhz – Tuned
GAIN: -1,5 dB (half wave dipole)
TYPICAL – V.S.W.R.: >1.1:1 +/- 100 Khz
POLARIZATION: Circular omnidirectional
MAX. POWER: 600 W N female / 1500W 7/16 female
CONNECTOR TYPE: N female or 7/16
WIND LOAD: 8 Kgrms @ 160 Km/h
MAX. WIND VELOCITY: 190 Km/p u
GROUNDING: Grounded Via clamps

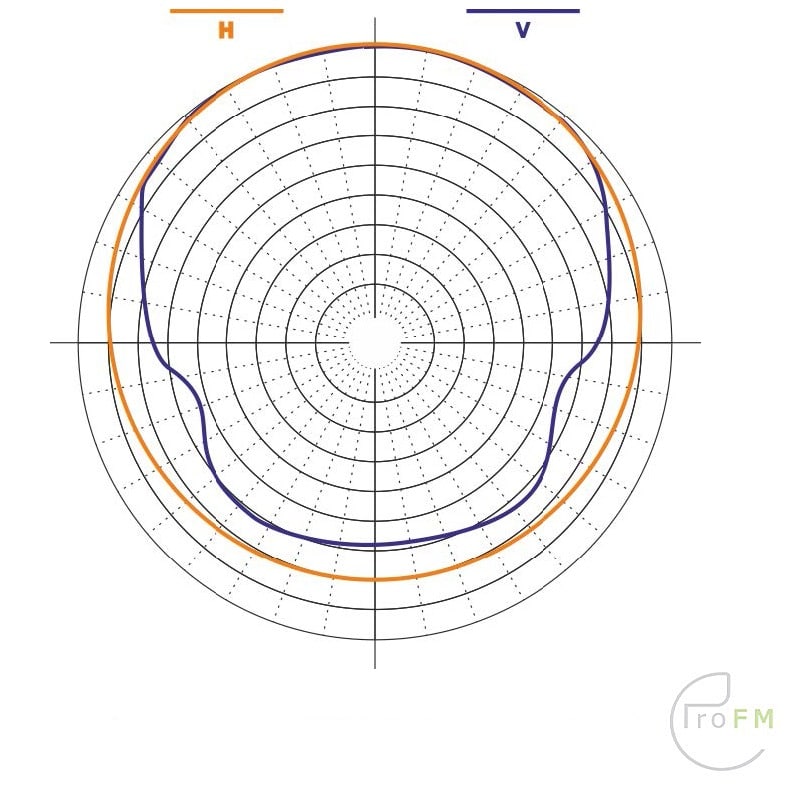

VERTICAL AMPLITUDE: 75º @ -3dB E plane
MOUNTING BRACKETS:30 / 70 mm
MATERIALS:
WEIGHT: 5 Kg
Dipoles – Vertical Amplitude
1 75º
2 38º
4 19º
6 15º
8 9º
Gain:
Dioples – Gain
1 -1,5dB
2 0dB
4 3,1dB
6 4,2dB
8 6dB
- Description
-
ProFM ECOCIRCTD Circulair FM Antenna INOX
This very sturdy antenna was created to be used as stand alone or as an element of a system made up of various units to make a stacked antenna array.
Demontable for economical shipping ,Special treatment Stainless steel, TIG weld Broadband ,87,5 -108 Mhz
Tunable to frequency.. Nickel plated nuts (stainless steel)to avoid stuck nuts, stainless steel screws.
Lightning protect (grounded) Omnidirectional patern, circulair polarisationAntenna is constructed out of stainless steel and is fully demountable for easy shipping and weights around 5 kg
- Specifications
-
Model:ProFM BBDP2 Dipole
IMPEDANCE: 50 ohm
FREQUENCY RANGE: 87.5 – 108 Mhz – Tuned
GAIN: -1,5 dB (half wave dipole)
TYPICAL – V.S.W.R.: >1.1:1 +/- 100 Khz
POLARIZATION: Circular omnidirectional
MAX. POWER: 600 W N female / 1500W 7/16 female
CONNECTOR TYPE: N female or 7/16
WIND LOAD: 8 Kgrms @ 160 Km/h
MAX. WIND VELOCITY: 190 Km/p u
GROUNDING: Grounded Via clamps
VERTICAL AMPLITUDE: 75º @ -3dB E plane
MOUNTING BRACKETS:30 / 70 mm
MATERIALS:
WEIGHT: 5 KgDipoles – Vertical Amplitude
1 75º
2 38º
4 19º
6 15º
8 9ºGain:
Dioples – Gain
1 -1,5dB
2 0dB
4 3,1dB
6 4,2dB
8 6dB
