ProFM ECOCIRCTD Circulair FM Antenna INOX

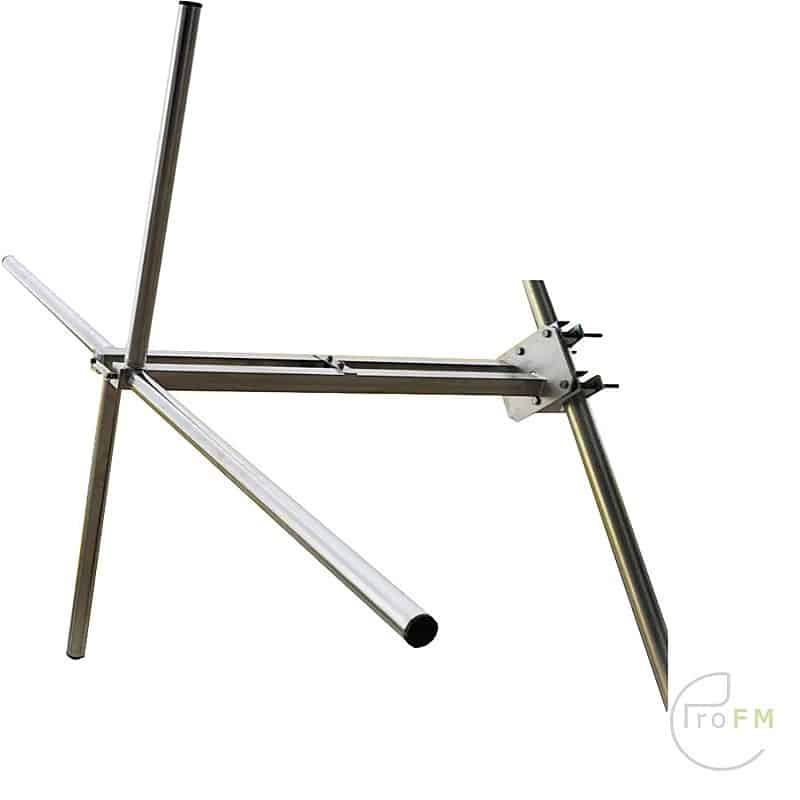

This very sturdy antenna was created to be used as stand alone or as an element of a system made up of various units to make a stacked antenna array.
Demontable for economical shipping ,Special treatment Stainless steel, TIG weld Broadband ,87,5 -108 Mhz

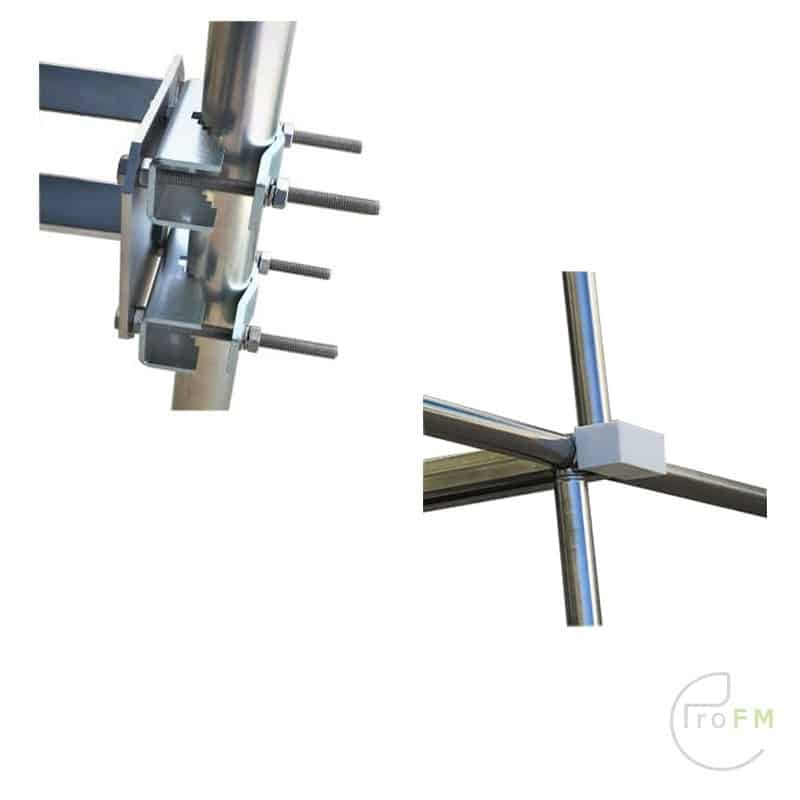

Tunable to frequency.. Nickel plated nuts (stainless steel)to avoid stuck nuts, stainless steel screws.
Lightning protect (grounded) Omnidirectional patern, circulair polarisation

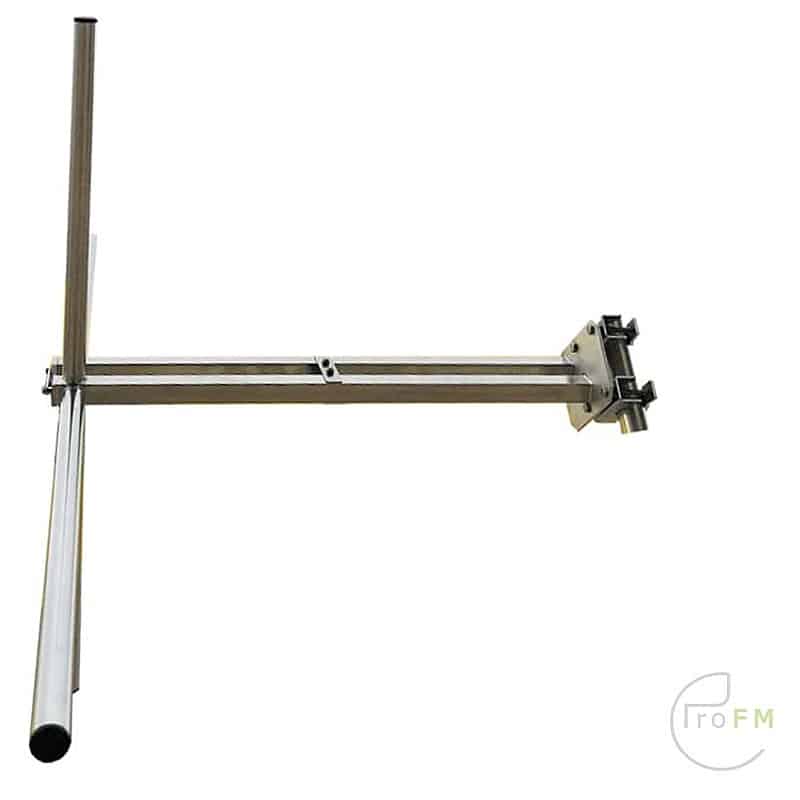

Antenna is constructed out of stainless steel and is fully demountable for easy shipping and weights around 13 kg
Model:ProFM BBDP2 Dipole
IMPEDANCE: 50 ohm
FREQUENCY RANGE: 87.5 – 108 Mhz Broadband
GAIN: 0,5 dB (half wave dipole)
TYPICAL – V.S.W.R.: >1.1:1 +/- 100 Khz
POLARIZATION: Circular omnidirectional
MAX. POWER: 2000w- 7/16 connector / 4000W 7/8 EIA Flange
CONNECTOR TYPE: 7/16 or 7/8 EIA Flange
WIND LOAD: 35 Kgrms @ 160 Km/h
MAX. WIND VELOCITY: 180 Km/p u
GROUNDING: Grounded Via clamps
VERTICAL AMPLITUDE:70º @ -3dB E plane
MOUNTING BRACKETS:30 / 70 mm
MATERIALS:Stainless Steel
WEIGHT: 5 Kg
Dipoles – Vertical Amplitude
1 64º
2 31º
4 16º
6 11º
8 5º
Gain:
Dipoles – Gain
1 -1,5dB
2 0dB
4 3,3dB
6 4,6dB
8 6,5dB
