Description

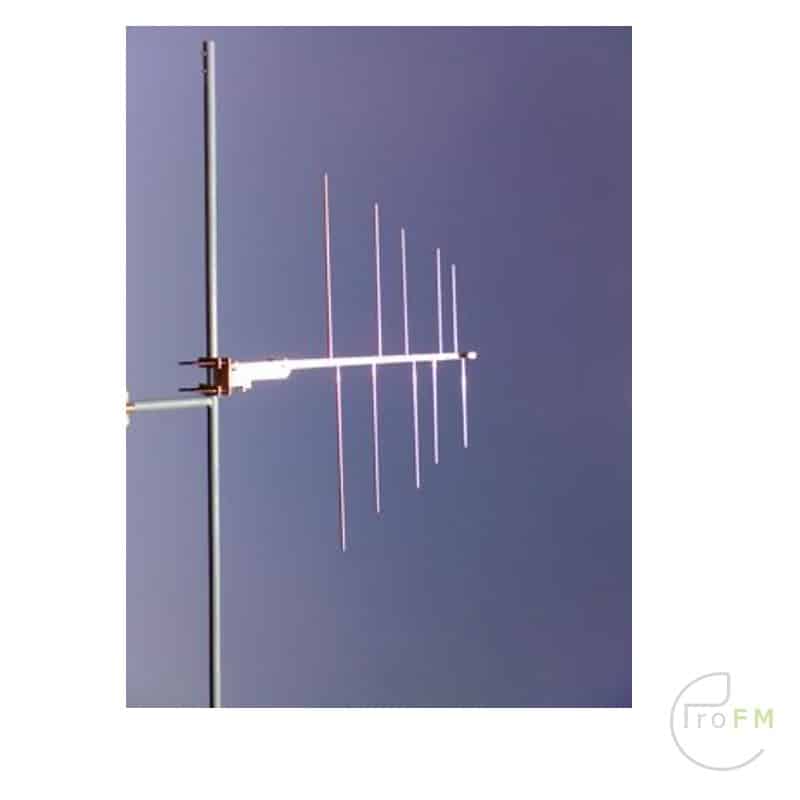

ProFM BBLP5 Log Periodic 5 Element FM Antenna
This antenna is very robust and has been created to be used singly or alone stations, coupled with other software systems to dial a number of antenna. At a radiation angle of 100 degree giving a gain equally on all the salient characteristics.
For this relay is ideal for medium to high power at high altitudes and then is widely used along with rf power system repeaters, to create zero where the radio signal goes to disturb other broadcasters.
Standard delivery on a 7/16 connector for a maximum power of 2 kW or with 7/8 connector for maximum power output of 5 Kw.
Contructed out of aluminium
Model:ProFM BBLP5-7/16-7/8
WEIGHT: Kg. 6 ALUMINIUM
IMPEDANCE: 50 ohm
MOUNTING: WHITH STANDARD -CLAMP 50-110 MM.
FREQUENCY RANGE: 87.5-108 Mhz
DIMENSIONS: 1470X1730X220 MM.

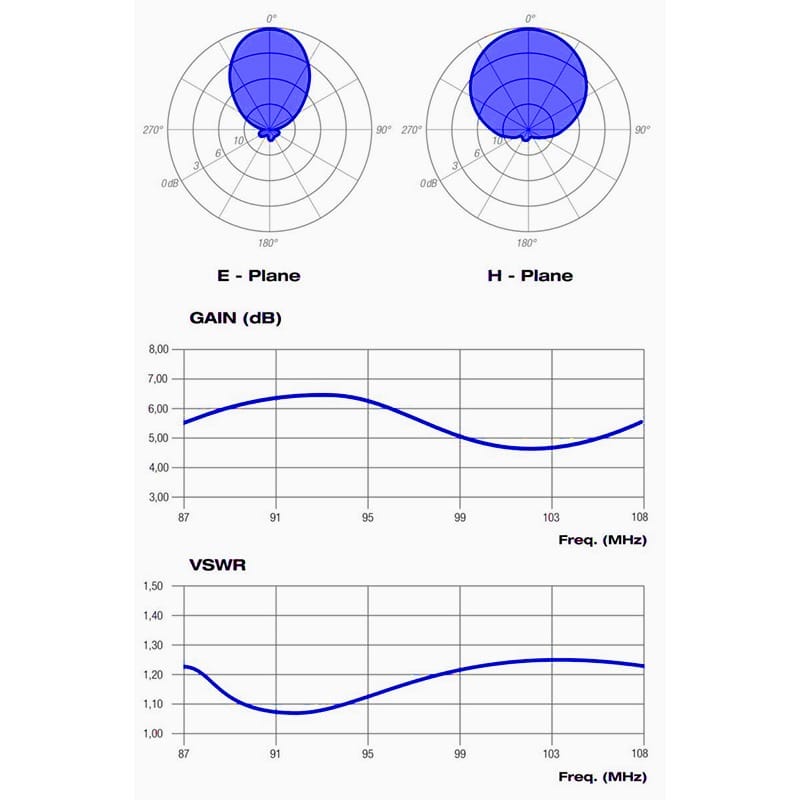

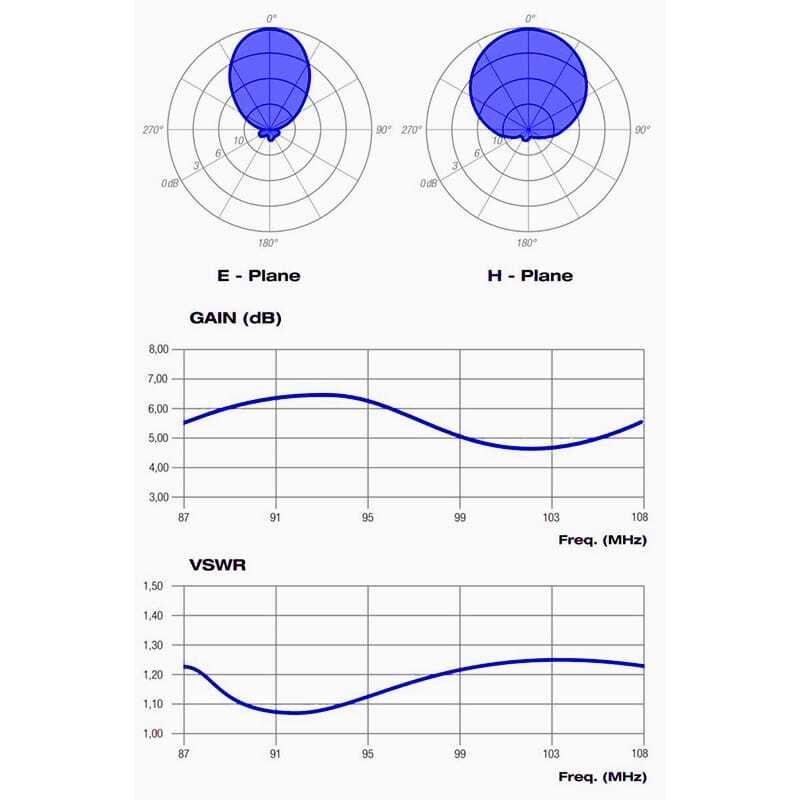

GAIN: 5 dB (half wave dipole)
MATERIALS HARDWARE MOUNTING: STEEL GALVANIZED.
TYPICAL – V.S.W.R.: <1.35 : 1
ISULATOR: PTFE (TEFLON
POLARIZATION: LINEAR, HORIZONTAL OR VERTICAL
INTERNAL : ALUMINIUM COPPER
MAX. POWER: MEDIUM POWER 2000 W H POWER 5 KW
WIND LOAD: 150 Kg. 90 Km. Hora
CONNECTOR TYPE: 7/16 female or 7/8 female
MAX WIND VELOCITY 90 KM HORA
MATERIALS ANTENNA: ALLUMINIUM ANTICORODAL
