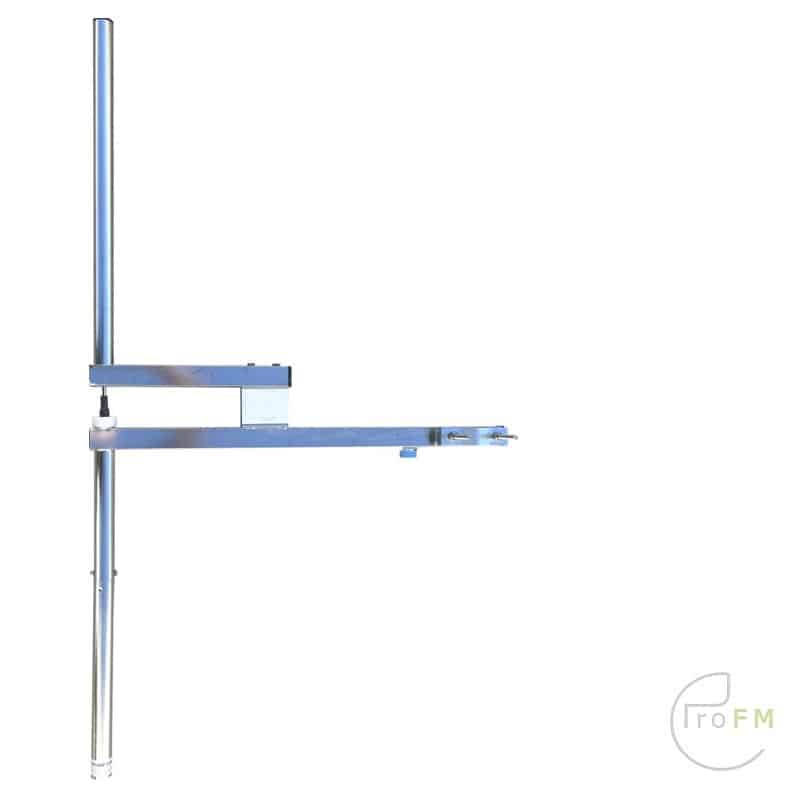

ProFM BBDP3 Broadband FM Dipole Antenna Stainless Steel
This very sturdy antenna was created to be used as stand alone or as an element of a system made up of various units to make a stacked antenna array.
Demontable for economical shipping ,Special treatment Stainless steel, TIG weld Broadband ,87,8-108 Mhz broadband. Nickel plated nuts (stainless steel)to avoid stuck nuts, stainless steel screws.
Lightning protect (grounded)
Antenna is constructed out of stainless steel and is fully demountable for easy shipping and weights around 5 kg
Model:ProFM BBDP2 Dipole
IMPEDANCE: 50 ohm
FREQUENCY RANGE: 87.5-108 Mhz
GAIN: 1 dB (half wave dipole)
TYPICAL – V.S.W.R.: 1.2 : 1

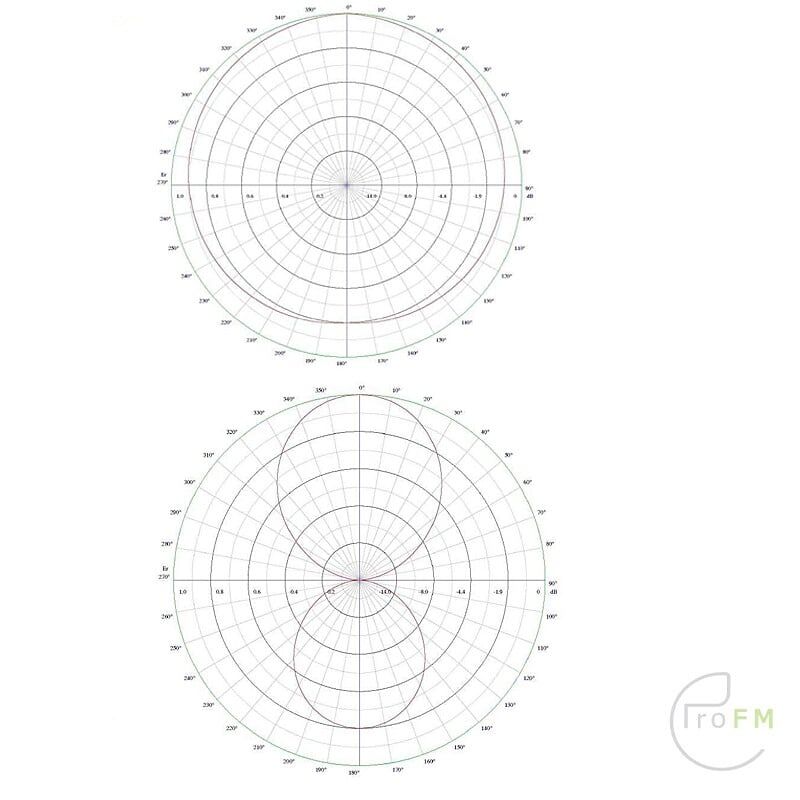

POLARIZATION: LINEAR VERTICAL
MAX. POWER: Depending on connector – 4 KW
Max Power: N- Connector: 600 Watt / 7/16 Connector:2000 Watt / 7/8 EIA Flange connector 4 KW
CONNECTOR TYPE: N female – 7/16 – 7/8 EIA
WIND LOAD: 32 Kg. 150 Km. Hora
MAX. WIND VELOCITY: 200 Km/p u
GROUNDING:Via clamps
WEIGHT: 5 Kg
| BAY | DIPOLE x BAY | GAIN dBd | Antenna height in meter |
WEIGHT
kg |
WIND LOAD (v=160 Km/h)(kg) |
| 1 | 1 | 1,5 | 1.4 | 3,650 | 10,1 |
| 2 | 1 | 4,5 | 4.0 | 7,300 | 20.2 |
| 4 | 1 | 7,5 | 9.2 | 14,600 | 40.4 |
| 6 | 1 | 9,3 | 14.5 | 21,900 | 60.6 |
| 8 | 1 | 10.5 | 20.0 | 29,200 | 80.8 |
- Description
-
ProFM BBDP3 Broadband FM Dipole Antenna Stainless Steel
This very sturdy antenna was created to be used as stand alone or as an element of a system made up of various units to make a stacked antenna array.
Demontable for economical shipping ,Special treatment Stainless steel, TIG weld Broadband ,87,8-108 Mhz broadband. Nickel plated nuts (stainless steel)to avoid stuck nuts, stainless steel screws.
Lightning protect (grounded)Antenna is constructed out of stainless steel and is fully demountable for easy shipping and weights around 5 kg
- Specifications
-
Model:ProFM BBDP2 Dipole
IMPEDANCE: 50 ohm
FREQUENCY RANGE: 87.5-108 Mhz
GAIN: 1 dB (half wave dipole)
TYPICAL – V.S.W.R.: 1.2 : 1
POLARIZATION: LINEAR VERTICAL
MAX. POWER: Depending on connector – 4 KW
Max Power: N- Connector: 600 Watt / 7/16 Connector:2000 Watt / 7/8 EIA Flange connector 4 KW
CONNECTOR TYPE: N female – 7/16 – 7/8 EIA
WIND LOAD: 32 Kg. 150 Km. Hora
MAX. WIND VELOCITY: 200 Km/p u
GROUNDING:Via clamps
WEIGHT: 5 KgBAY DIPOLE x BAY GAIN dBd Antenna
height in meterWEIGHT kg
WIND LOAD
(v=160 Km/h)(kg)1 1 1,5 1.4 3,650 10,1 2 1 4,5 4.0 7,300 20.2 4 1 7,5 9.2 14,600 40.4 6 1 9,3 14.5 21,900 60.6 8 1 10.5 20.0 29,200 80.8
