Name: ProFM BBDP3 Broadband Dipole Antenna System Inox Stacked array of 2
Brand: ProFM Broadcast
SKU: 1201
Availability: InStock

Description

Description
Specifications

ProFM BBDP3 Broadband Dipole Antenna System Inox Stacked array of 2

Introducing the ProFM BBDP3 Broadband Dipole Antenna System Inox, a cutting-edge solution tailored for FM Broadcast Band (87.5 – 108 MHz). Crafted from durable stainless steel, each antenna in the series features a balun feed vertical dipole configuration, ensuring optimal performance and longevity. This is a complete set of two antennas, powersplitter and coupling cables.

Omnidirectional Excellence:

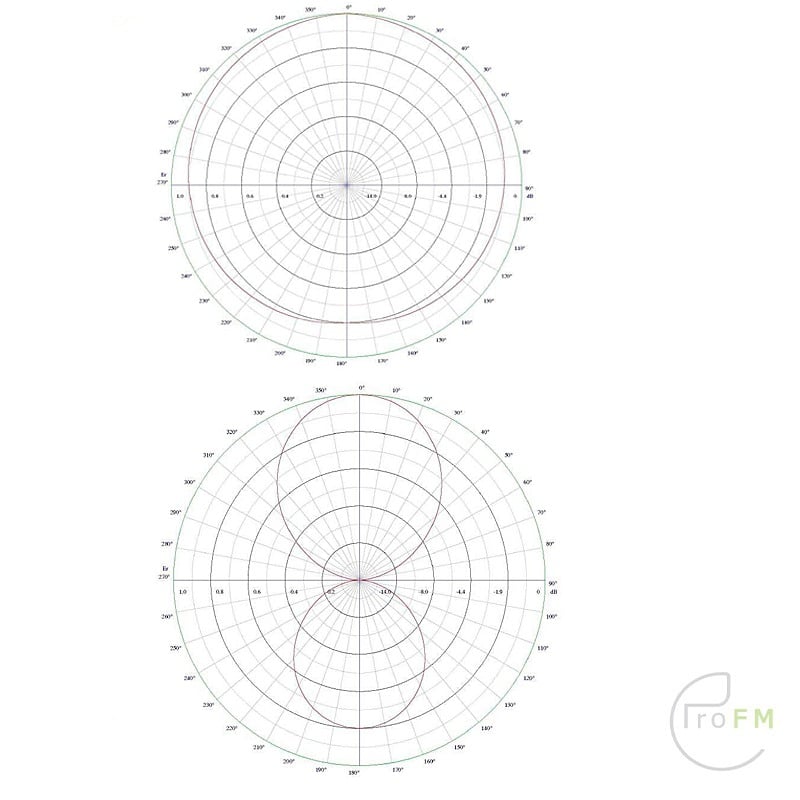

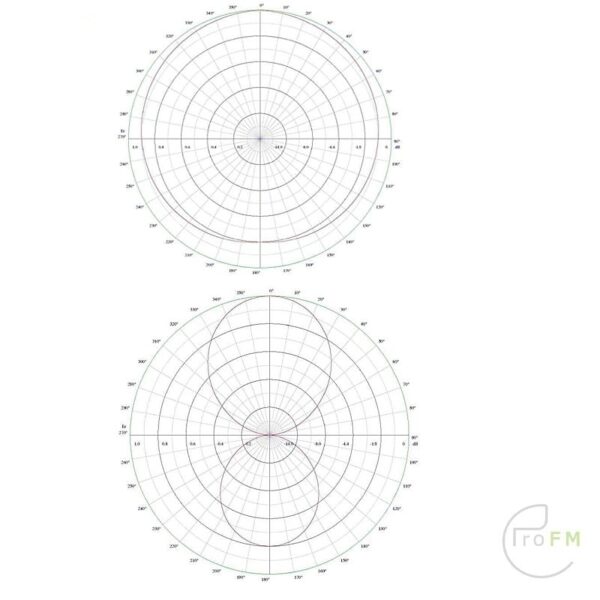

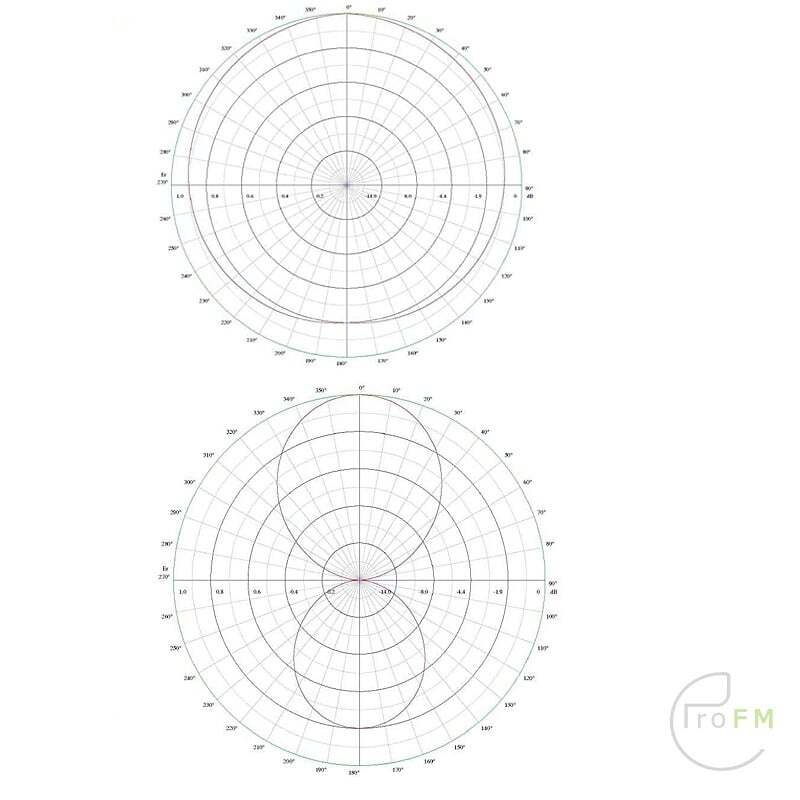

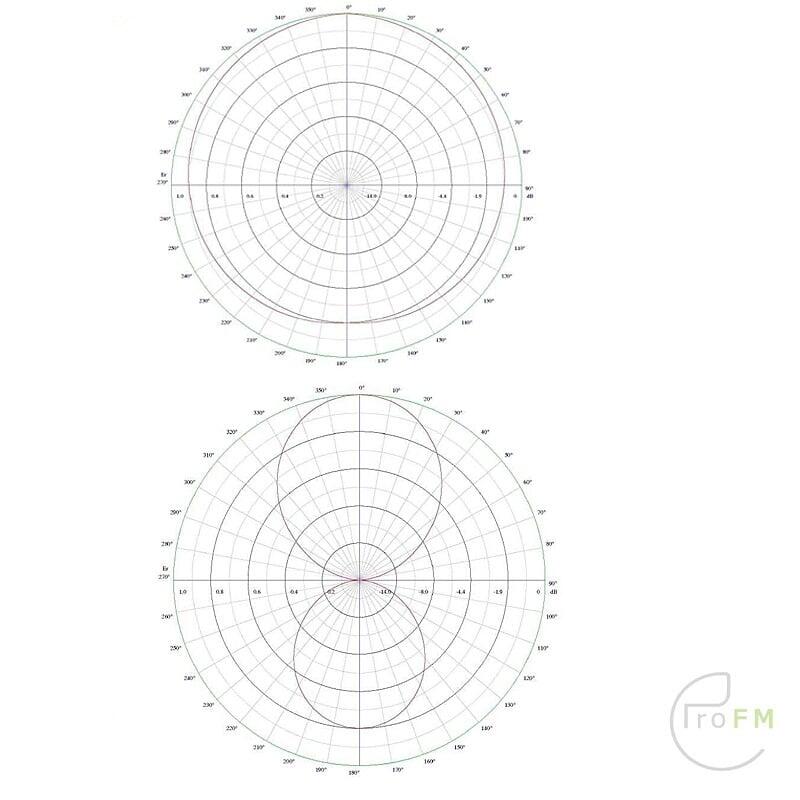

With its omnidirectional radiation pattern, the BBDP3 series guarantees consistent coverage across all directions, ideal for broadcasting applications requiring widespread reach.

Customizable Antenna Systems:
Unlocking flexibility, users can stack multiple antennas to tailor radiation patterns, enhance gain, and boost power handling capacity. Custom designs including electrical beam tilt and null fill configurations are available upon request.

Broadband Versatility:
Whether for single-channel or broadband operations utilizing multi-channel combiners, these antennas deliver seamless performance, adapting effortlessly to diverse broadcasting needs.

Effortless Installation:
Equipped with standard mounting brackets compatible with pole diameters ranging from 32 mm to 90 mm, installation is swift and hassle-free. Special brackets can be provided upon request for customized setups.

All-Weather Protection:
Engineered with a special housing, the input connector and internal balun remain shielded against rain, icing, and moisture, ensuring uninterrupted operation even in challenging environmental conditions.

Robust Mechanical Design:
Featuring state-of-the-art materials such as non-corrosive aluminum alloy, marine brass, and virgin PTFE, these antennas boast exceptional durability, promising an extended service life.

Lightning Resistance:
With the entire antenna grounded, lightning resistance is guaranteed, offering added peace of mind in regions prone to electrical storms.

In summary, the ProFM BBDP3 Broadband Dipole Antenna System Inox represents a pinnacle of performance, reliability, and versatility, making it the ideal choice for FM broadcasting applications demanding excellence in coverage and durability

Advantages:

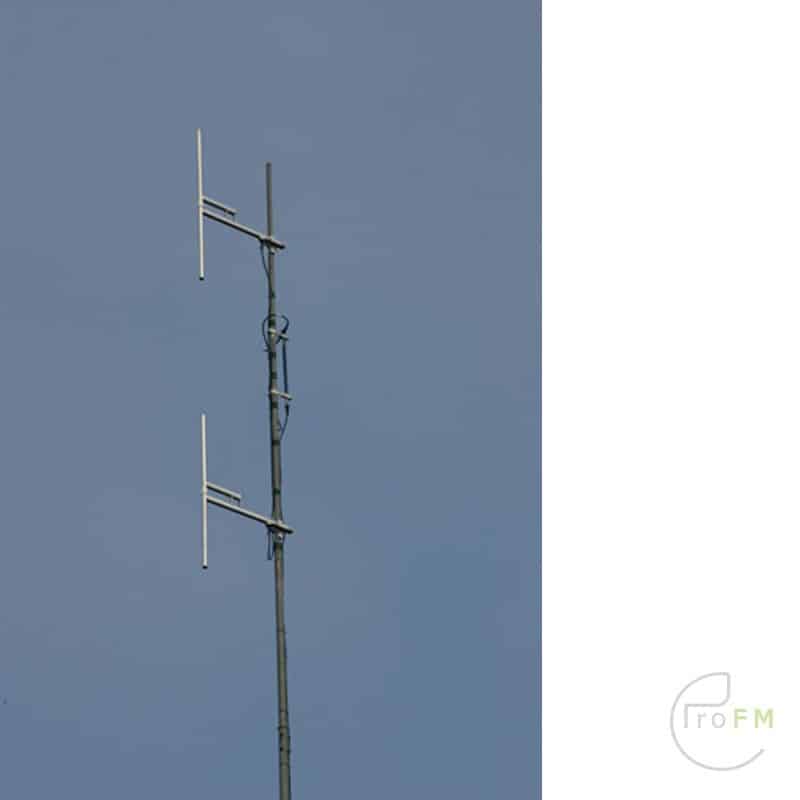

Advantages for a 2 stack antenna system:

Enhanced Coverage
Increased Gain
Diversity Reception
Redundancy and Reliability

Frequency: 87.5 – 108 Mhz
Max Power: 600 Watt with N-Connector
Max Power: 2500 Watt with 7/16 Connector
Max Power: 5000 Watt with 7/8 EIA Flange connector
Gain (at mid band, ref. to ? /2 dipole) 2.15 dBd
VSWR (in the whole band) < 1.3 :1
Polaritation: Vertical
Vertical amplitude: 78º @ -3dB E plane
Impedance 50 Ohm
Wind load (ref 150 Km/h): Frontal 18 Kg Lateral 26 Kg
Grounding Via clamps
Vertical Beamwidth (at -3 dB, at mid band) 72

BAY	DIPOLE x BAY	GAIN dBd	Antenna height in meter	WEIGHT kg	WIND LOAD (v=160 Km/h)(kg)
1	1	1,5	1.4	4,650	10,1
2	1	4,5	4.0	9,300	20.2
4	1	7,5	9.2	18,600	40.4
6	1	9,3	14.5	27,900	60.6
8	1	10.5	20.0	37,200	80.8

Description

ProFM BBDP3 Broadband Dipole Antenna System Inox Stacked array of 2

Lightning Resistance:
With the entire antenna grounded, lightning resistance is guaranteed, offering added peace of mind in regions prone to electrical storms.

Advantages:
Advantages for a 2 stack antenna system:

Enhanced Coverage
Increased Gain
Diversity Reception
Redundancy and Reliability

Specifications

BAY	DIPOLE x BAY	GAIN dBd	Antenna height in meter	WEIGHT kg	WIND LOAD (v=160 Km/h)(kg)
1	1	1,5	1.4	4,650	10,1
2	1	4,5	4.0	9,300	20.2
4	1	7,5	9.2	18,600	40.4
6	1	9,3	14.5	27,900	60.6
8	1	10.5	20.0	37,200	80.8

Additional information

Weight	15 kg
Dimensions	95 × 25 × 25 cm
