Description

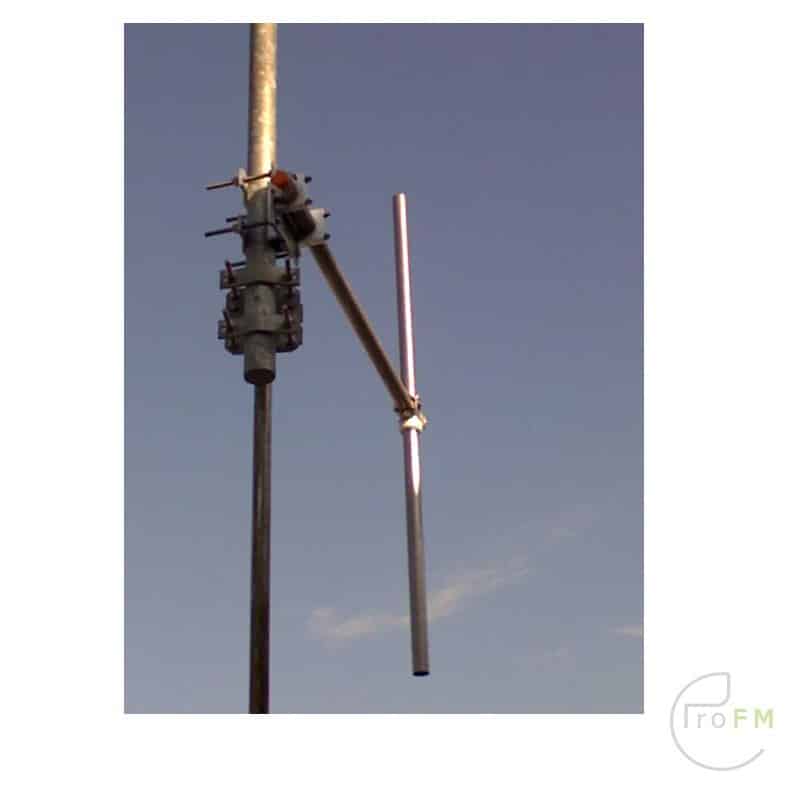

ProFM BBDP2 Broadband FM Dipole Antenna Stainless Steel
This very sturdy antenna was created to be used as stand alone or as an element of a system made up of various units to make a stacked antenna array.

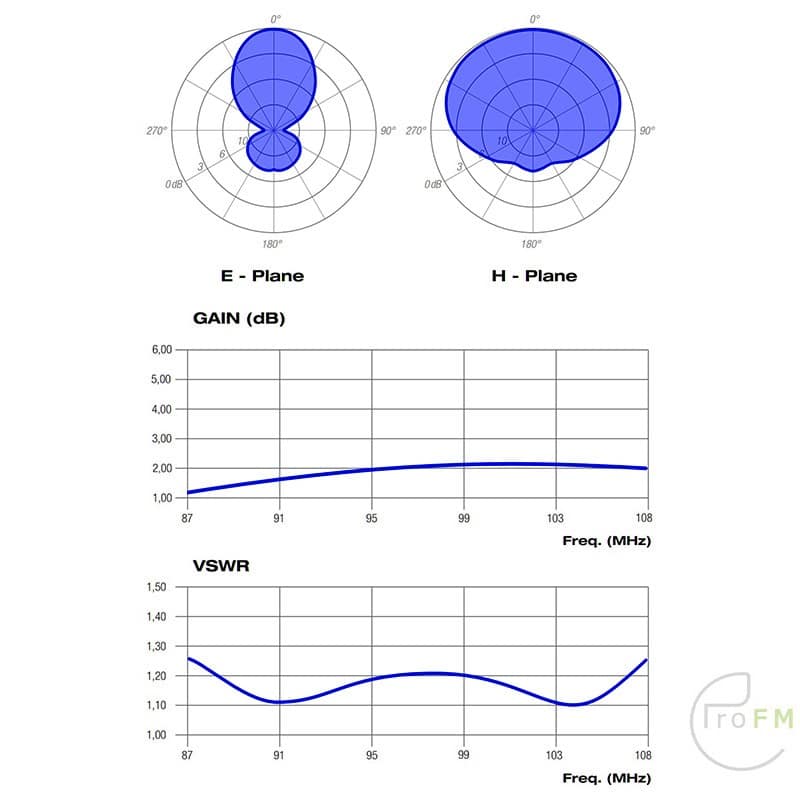

With a 120 degree radiation angle it has good gain on a wide angle of coverage. Therefore, it is ideal for medium and high power repeaters.
It has a standard 7/16 connector, but optional is a 7/8 connector ,maximum input power of 5 KW.
Antenna is constructed out of stainless steel and is fully demountable for easy shipping and weights around 9 kg
Model:ProFM BBDP2 Dipole
IMPEDANCE: 50 ohm
FREQUENCY RANGE: 87.5-108 Mhz
GAIN: 1 dB (half wave dipole)
TYPICAL – V.S.W.R.: 1.2 : 1
POLARIZATION: LINEAR VERTICAL
MAX. POWER: MEDIUM POWER 2000 W H POWER 5 KW
Max Power: 2000 Watt – 7/16 Connector
Max Power: 5000 Watt – 7/8 connector
CONNECTOR TYPE: N female-7/16 or female- 7/8
WIND LOAD: 32 Kg. 150 Km. Hora
MAX. WIND VELOCITY: 200 Km/p u
GROUNDING:Via clamps
WEIGHT: 9 Kg
| BAY | DIPOLE x BAY | GAIN dBd | Antenna height in meter | WEIGHT kg | WIND LOAD (v=160 Km/h)(kg) |
| 1 | 1 | 1,5 | 1.4 | 3,650 | 10,1 |
| 2 | 1 | 4,5 | 4.0 | 7,300 | 20.2 |
| 4 | 1 | 7,5 | 9.2 | 14,600 | 40.4 |
| 6 | 1 | 9,3 | 14.5 | 21,900 | 60.6 |
| 8 | 1 | 10.5 | 20.0 | 29,200 | 80.8 |
